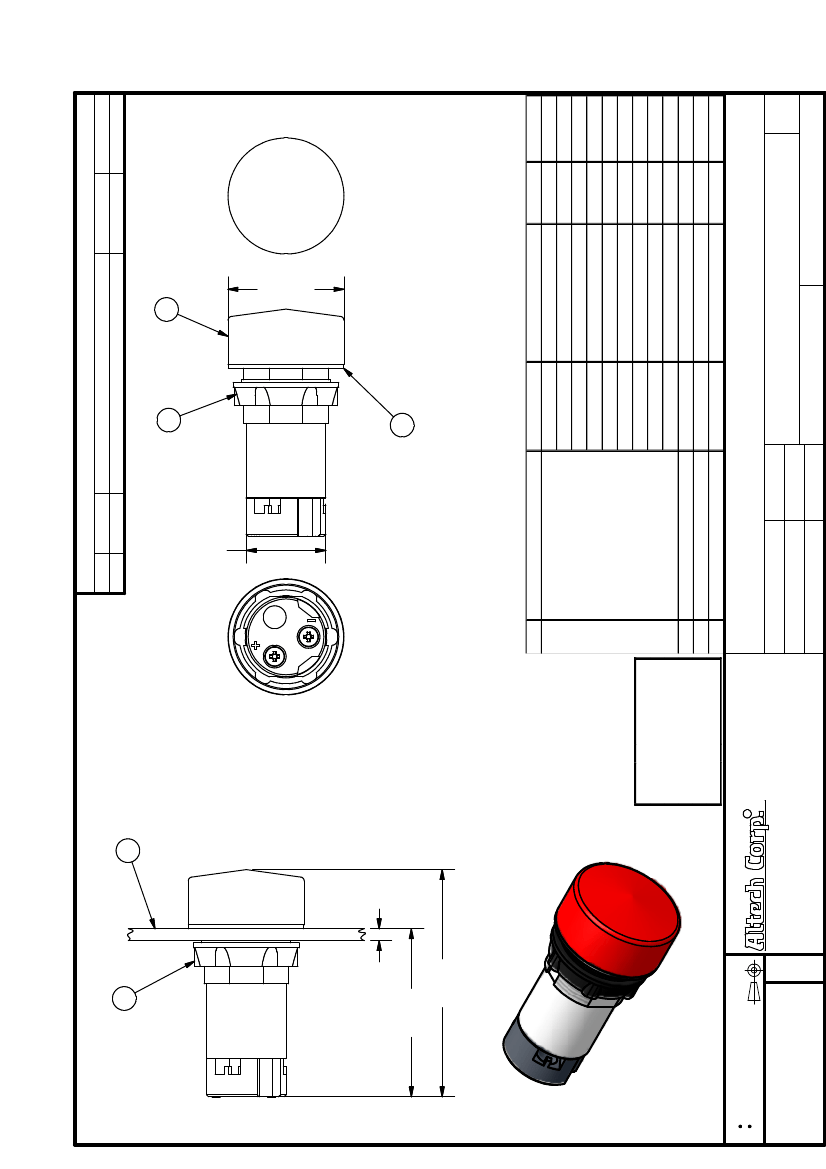

revision for dwg #
1PB-3PLBRxL-yyy
rev
ch.no.
-
11/2/2007
2
4
-
description
original design
date
revised by
Philipp E.
2
[.8 in]
n
20.2 mm
1
max. 6 mm
[.25 in]
3
42.6 mm
[1.7 in]
57.6 mm
[2.3 in]
* = Pilot Light is supplied with mounting nut and rubber gasket (ITEM 2 and 3)
ITEM DESCRIPTION
1*
yyy
=
Voltage
012
=
12V AC/DC
024
=
24V AC/DC
048
=
48V AC/DC
110
=
110V AC/DC
230
=
230V AC
230D
=
230V DC
R
Unibody LED Indicator Plastic
Pilot Light
unless otherwise specified:
all dimensions are in millimeters
third angle projection
This Drawing is the property of
2* Mounting Nut
3* Rubber Gasket
4 Panel
titel
CAT. NO.
3PLBR1L-yyy
3PLBR1LS-yyy
3PLBR3L-yyy
3PLBR4L-yyy
3PLBR5L-yyy
3PLBR6L-yyy
3PLBR7L-yyy
3PLBR7LS-yyy
3PLBR8LS-yyy
P2BRK
3PRG1
-
COLOR
MIN. QTY. MAX. QTY.
White Lense/Yellow LED
1
1
White Lense/White LED
1
1
Green Lense/Green LED
1
1
Red Lense/Red LED
1
1
Amber Lense/Amber LED
1
1
Blue Lense/Blue LED
1
1
Clear Lense/Yellow LED
1
1
Clear Lense/White LED
1
1
Yellow Lense/Yellow LED
1
1
Black
1
1
Black
1
1
-
-
-
Unibody LED Indicator Plastic Pilot Lights 3PLBRxL-yyy (x=color,
yyy=voltage)
11/2/2007
11/2/2007
11/2/2007
drawing no.:
n
29.5 mm
[1.2 in]
rev.:
tolerance
XX
XX.X
XX.XX
ALL
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
1PB-3PLBRxL-yyy
-
M
E
T
R
I
C
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
scale:
-
sheet:
1
of:
1
