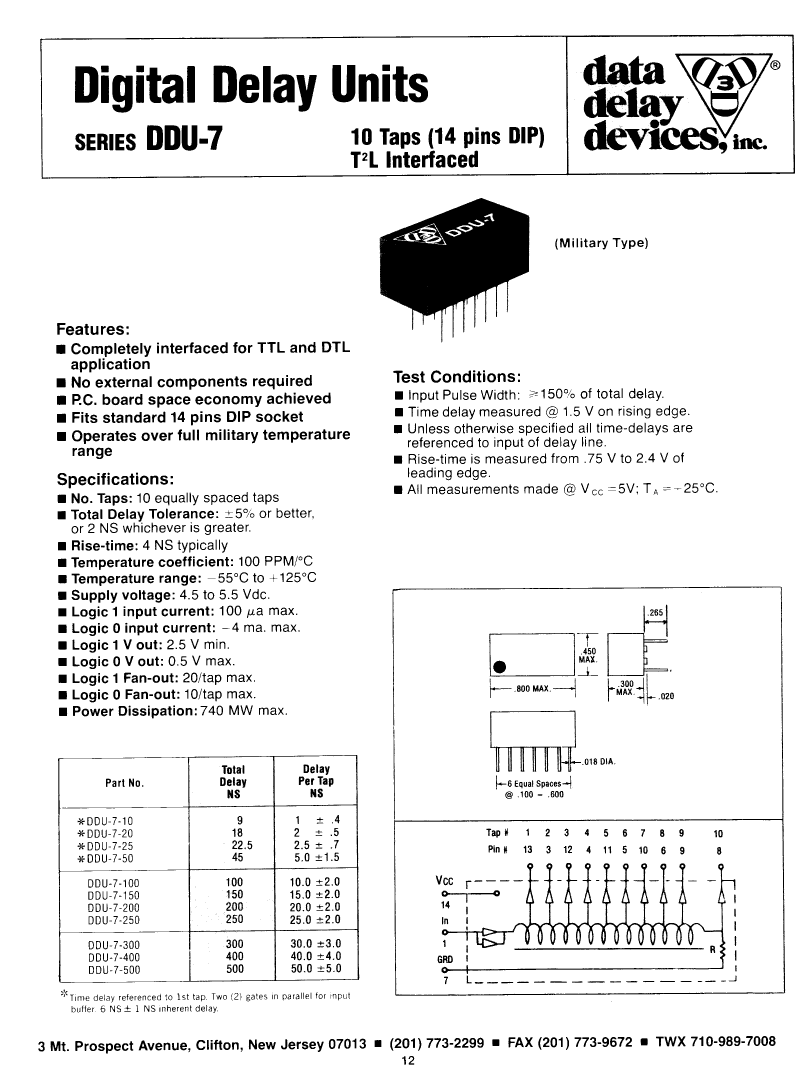

DDU-7-100 datasheet, PDF - EEWORLD Datasheet

DDU-7-100: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14, DIP-14; Categorylogic logic; File Size94KB，1 Pages; ManufacturerData Delay Devices

Download Datasheet Parametric View All

DDU-7-100 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP14, DIP-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	QIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
series	7
JESD-30 code	R-PDIP-P14
JESD-609 code	e0
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	QIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	148 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	100 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	100 ns
width	7.62 mm
Base Number Matches	1
