AQ147A05RCATWE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> AQ147A05RCATWE

AQ147A05RCATWE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 500V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, CHIP; CategoryPassive components capacitor; File Size216KB，10 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

AQ147A05RCATWE Overview

Ceramic Capacitor, Multilayer, Ceramic, 500V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, CHIP

AQ147A05RCATWE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	5e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	50%
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	WAFFLE PACK
positive tolerance	50%
Rated (DC) voltage (URdc)	500 V
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

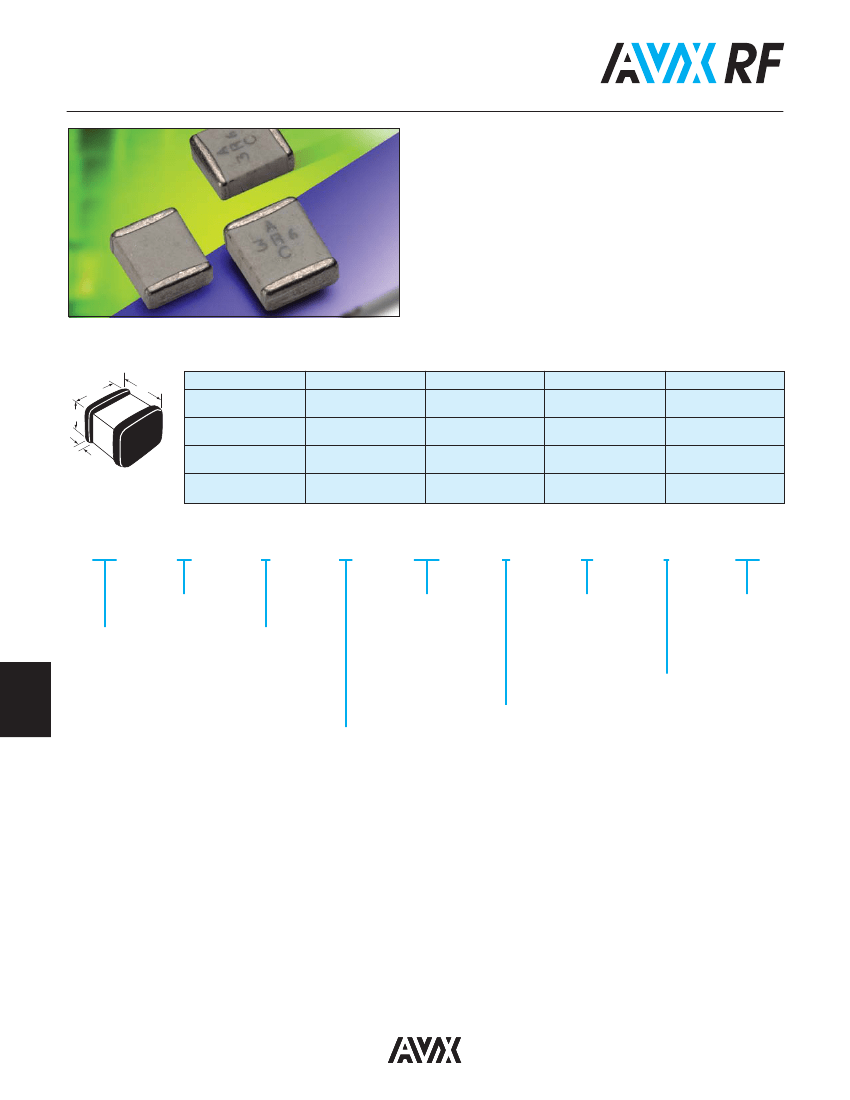

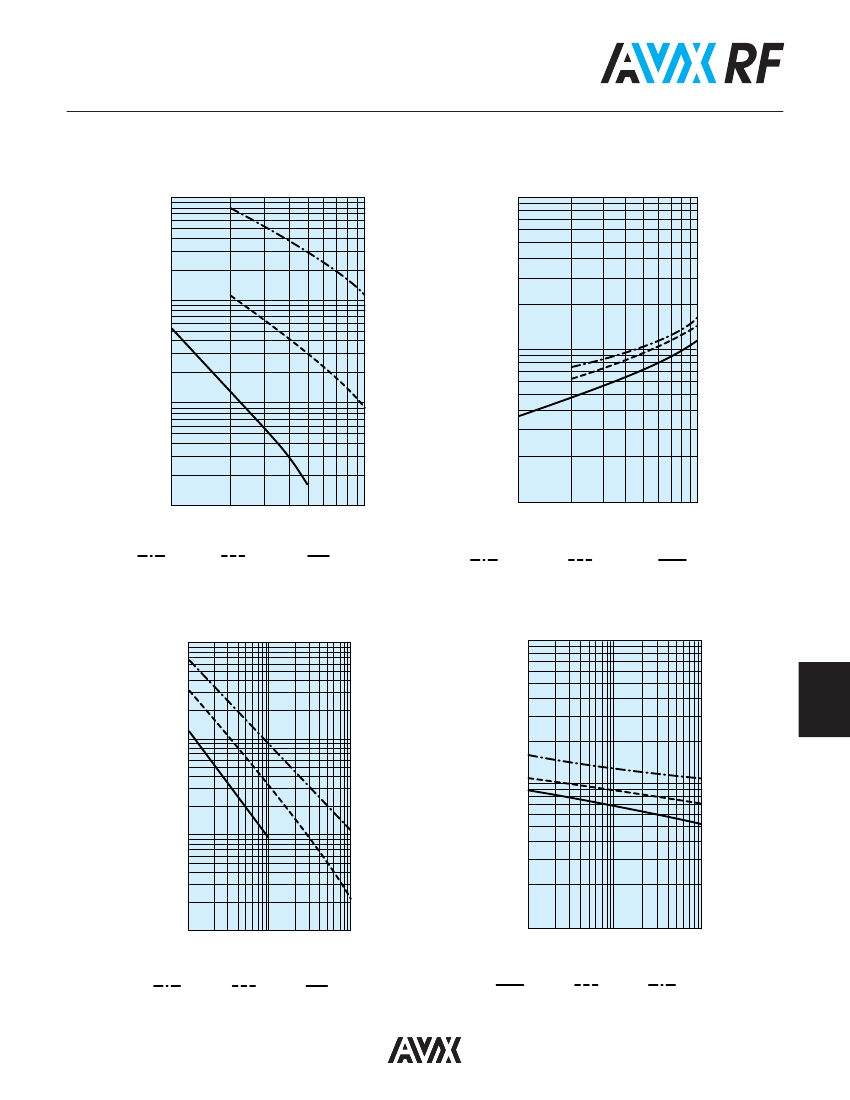

Microwave MLC’s

AQ Series

These porcelain and ceramic dielectric multilayer capacitor

(MLC) chips are best suited for RF/ Microwave applications

typically ranging from 10 MHz to 4.2 GHz. Characteristic is a

fine grained, high density, high purity dielectric material imper-

vious to moisture with heavy internal palladium electrodes.

These characteristics lend well to applications requiring:

1) high current carrying capabilities;

2) high quality factors;

3) very low equivalent series resistance;

4) very high series resonance;

5) excellent stability under stresses of changing volt-

age, frequency, time and temperature.

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.055±.015

(1.40±.381)

.110±.020

(2.79±.508)

.110±.010

(2.79±.508)

Case

AQ11

AQ12

Length (L)

.055±.015

(1.40±.381)

.055 + .015 - .010

(1.40+ .381 - .254)

.110±.020

(2.79±.508)

.110 + .020 - .010

(2.79 +.889 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

.015±.010

(.381±.254)

A 1J

AQ13

AQ14

HOW TO ORDER

100

Case Size

(See Chart)

Capacitance

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

9 = 300V

7 = 500V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Failure Rate

Code

A = Not

Applicable

Packaging*

Code

3A = 13" Reel

ME = 7" Reel

RE = 13" Reel

WE = Waffle

Pack

AVX Style

AQ11, AQ12,

AQ13, AQ14

Termination

Style Code

1 = Pd/Ag

(AQ11/13 only)

7 = Ag/Ni/Au

(AQ11/13 only)

J = Nickel Barrier

Sn/Pb (60/40) -

(AQ12/14 only)

T = 100% Tin

(AQ12/14 only)

Temperature

Coefficient Code

M = +90±20ppm/°C (AQ11/12/13/14)

A = 0±30ppm/°C (AQ11/12/13/14)

C = 15% (“J” Termination only) (AQ12/14)

Capacitance

Tolerance Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

PACKAGING

Standard Packaging = Waffle Pack (maximum quantity is 80)

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).

Sizes SQCA through SQCB, CDR11/12 through 13/14.

—8mm carrier

—7" reel:

≤0.040"

thickness = 2000 pcs

≤0.075"

thickness = 2000 pcs

—13" reel:

≤0.075"

thickness = 10,000 pcs

106

AQ147A05RCATWE Related Products

	AQ147A05RCATWE	AQ137A05RCA1WE	AQ137A05RCA7WE	AQ147A05RCAJWE	AQ137A06RCA7WE	AQ137A06RCA1WE	AQ147A06RCATWE	AQ147A06RCAJWE
Description	Ceramic Capacitor, Multilayer, Ceramic, 500V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 50% +Tol, 50% -Tol, C0G, 30ppm/Cel TC, 0.0000005uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 41.67% +Tol, 41.67% -Tol, C0G, 30ppm/Cel TC, 0.0000006uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 41.67% +Tol, 41.67% -Tol, C0G, 30ppm/Cel TC, 0.0000006uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 41.67% +Tol, 41.67% -Tol, C0G, 30ppm/Cel TC, 0.0000006uF, Surface Mount, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 500V, 41.67% +Tol, 41.67% -Tol, C0G, 30ppm/Cel TC, 0.0000006uF, Surface Mount, CHIP
Is it lead-free?	Lead free	Lead free	Lead free	Contains lead	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	5e-7 µF	5e-7 µF	5e-7 µF	5e-7 µF	6e-7 µF	6e-7 µF	6e-7 µF	6e-7 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e4	e4	e0	e4	e4	e3	e0
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	50%	50%	50%	50%	41.67%	41.67%	41.67%	41.67%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK	WAFFLE PACK
positive tolerance	50%	50%	50%	50%	41.67%	41.67%	41.67%	41.67%
Rated (DC) voltage (URdc)	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Temperature characteristic code	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G
Temperature Coefficient	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn)	Silver/Palladium (Ag/Pd)	Gold (Au)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au)	Silver/Palladium (Ag/Pd)	Matte Tin (Sn)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1	1	1	1	1	1	1
