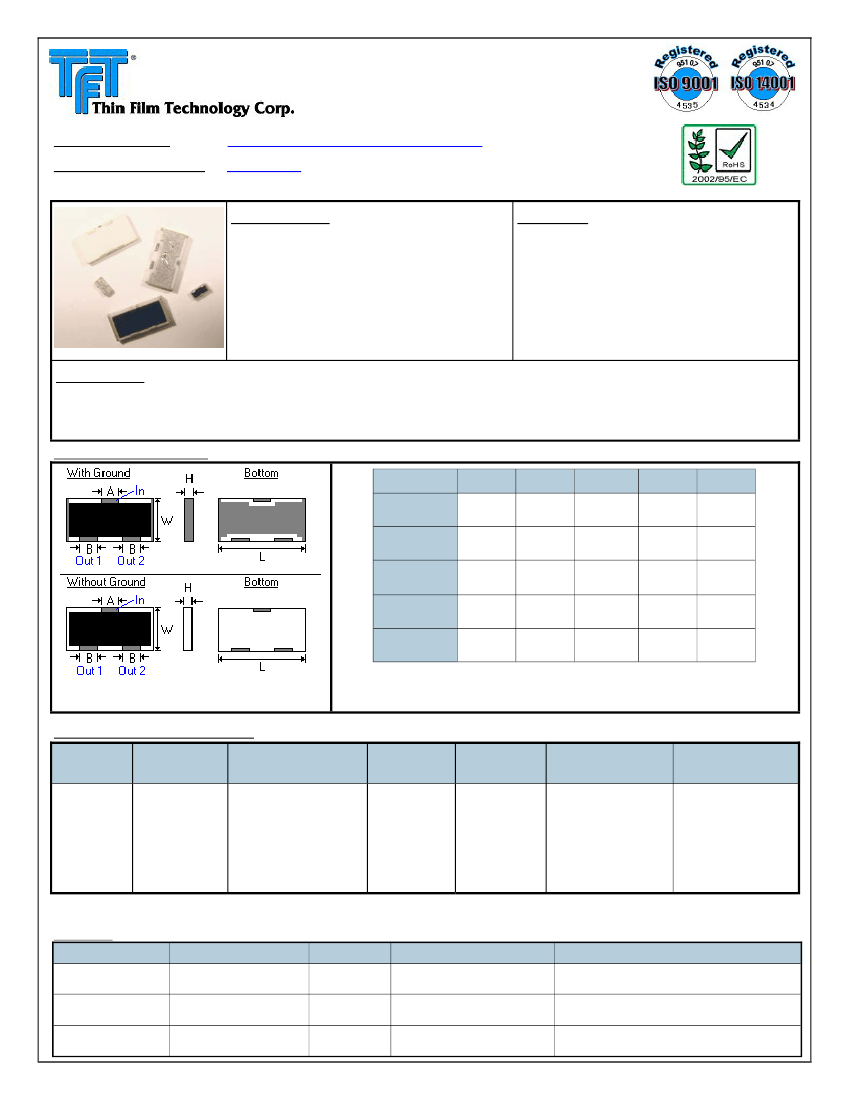

PS02M720.00 - Rev C - Page 1 of 2
Product Family:
Part Number Series:
High Precision Chip Power Splitter
PS Series
Construction:
High Purity Alumina Substrate
Ni alloy thin-film resistive elements
Wrap around electrodes
Offered with and without ground
100% matte tin over Ni terminations
(RoHS compliant and Pb Free)
Features:
0402, 0603, 0805, 1206 and 2010
English case sizes
Frequency range from DC to 20GHz
Offered in T&R with pattern up or with
pattern down for better frequency
performance
High volume production suitable for
commercial and special applications
Description:
These precision chip power splitters exhibit excellent high frequency characteristics for applications from DC to 20GHz.
Bit error is restrained by keeping the high frequency digital signal stable. This standard offering of this series includes a
ground plane on the bottom side. Customs are designed to the customers specifications.

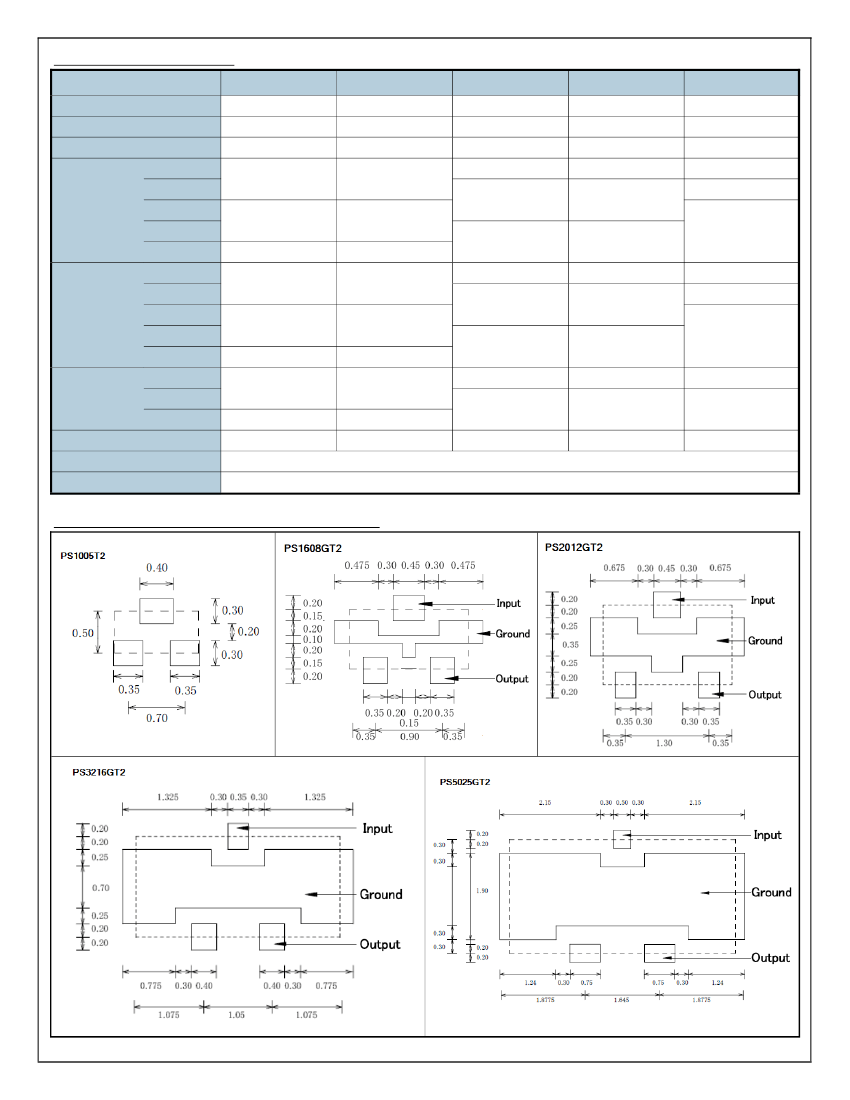

Product Dimensions:
Dimension
PS1005
(0402)
PS1608
(0603)
PS2012
(0805)
PS3216
(1206)
PS5025
(2010)
Product is available with and without ground on
bottom side. Refer to part numbering section.
L
0.039
±0.008
0.063
±0.008
0.079
±0.008
0.126
±0.008
0.197
±0.008
W
0.020
±0.004
0.032
±0.008
0.049
±0.008
0.063
±0.008
0.098
±0.008
H
0.012
±0.004
0.016
±0.004
0.016
±0.004
0.016
±0.004
0.032
±0.006
A
0.012
±0.004
0.018
±0.004
0.018
±0.004
0.014
±0.004
0.032
±0.006
B
0.014
±0.004
0.014
±0.004
0.014
±0.004
0.016
±0.004
0.030
±0.008
Note: Dimensions in inches but use metric size when ordering as shown in
the part numbering section. English size shown in parenthesis.
PS Series Part Numbering:
Ex: PS5025GT2-R50-B*
Product
Designator
Metric Size
(English)
1005 (0402)
1608 (0603)
2012 (0805)
3216 (1206)
5025 (2010)
Package Type **
# of Output
Terminals
Impedance
Pattern Orientation
FD = Face Down/
Pattern Side Down
Packaging
Quantity
PS
G = Ground Plane on
Bottom
(leave blank for no ground
plane on bottom side)
T2 = 2
R50 = 50Ω
(products with ground plane
not available with Face
Down orientation)
-B = Bulk
-T1 = 1,000 (T&R)
-T5 = 5,000 (T&R)
(leave blank for face up/
pattern side up)
Notes:
* All part numbers will automatically have a “-LF” appended to the end of them to indicate RoHS compliance/Pb Free (RoHS 6/6).
** The 1005/0402 size product is not offered with the ground plane on the bottom.
Metric Size (English size)
5025 (2010)
1608 (0603)
2012 (0805)
Examples:
Part Number
PS5025GT2-R50-B
PS1608T2-R50-FD-T1
PS2012GT2-R50-T5
Ground?
Yes
No
Yes
Pattern Orientation
Pattern side up
Pattern side down
Pattern side up
Package Qty
B = Bulk (25 pcs MOQ, increments of 1)
-T1 = 1,000 pcs Tape and Reel
-T5 = 5,000 pcs Tape and Reel
Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 /
www.thin-film.com
