PS5025GT2R50T1-LF: DescriptionSplitter, 0MHz Min, 10000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3; CategoryWireless rf/communication Radio frequency and microwave; File Size211KB，1 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric Compare View All

PS5025GT2R50T1-LF Overview

Splitter, 0MHz Min, 10000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3

PS5025GT2R50T1-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COMPONENT
JESD-609 code	e3
Maximum operating frequency	10000 MHz
Minimum operating frequency
RF/Microwave Device Types	SPLITTER
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

Chip Power Splitter

PS Series

Specification subject to change - Please call factory.

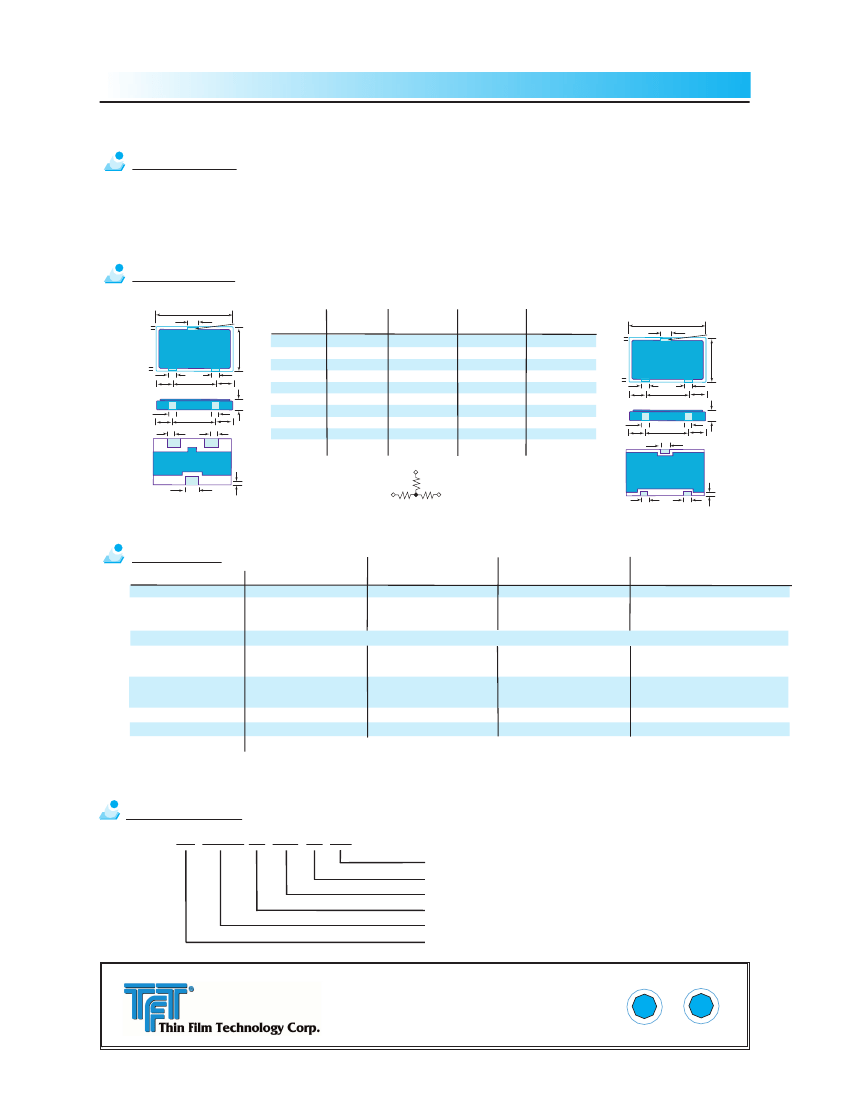

1.0 Description

A high frequency component using thin film technology to derive a power splitter. The surface mount pack-

age is ideal where low noise and low parasitic capacitance and inductance are required. The “G” Series

is designed as an impedance matching component featuring a ground plane on the reverse side.

2.0 Mechanical

PS1608G, PS2010G

Top

h

W

a

Input Terminal

L

h

b

e

Side

c

e

b

Bottom

d

b

Ground

c

e

d

b

e

t

Dimension

(mm)

a

b

W

t

L

c

d

e

g

h

PS1608G

0.45

0.35

1.60

0.40

0.80

0.35

0.80

0.40

0.25

0.10

±0.10

±0.20

±0.10

±0.15

±0.05

PS2012G

0.45

0.35

2.00

0.40

1.25

0.35

1.30

0.35

0.25

0.10

±0.15

±0.10

±0.15

±0.20

±0.10

±0.15

±0.05

PS3216GT2

0.35 ±0.15

0.40 ±0.15

3.20 ±0.10

0.40 ±0.10

1.60 ±0.10

0.45 ±0.15

1.05 ±0.20

1.075 ±0.10

0.25 ±0.15

0.20 ±0.15

PS5025G

Top

PS3216G, PS5025G

W

a

h

Input Terminal

0.50

0.75

5.00

0.80

2.50

0.85

1.70

1.65

0.30

0.25

±0.20

±0.40

±0.20

±0.15

L

h

b

e

Side

c

e

d

a

c

e

d

b

e

t

Bottom

Input

Ground

g

a

R=16.67 ohm

Output

R

Output

R

g

b

3.0 Electrical

Type

Frequency range

Attenuation tolerance

Distribution deviation

Input VSWR

Output VSWR

PS1608G

DC to 20 GHz

6 ±0.5 dB (DC-10 GHz)

6 ±1.0 dB (10-20 GHz)

1.3 or less (DC to10 GHz)

1.5 or less (10-20 GHz)

1.3 or less (DC to10 GHz)

1.5 or less (10-20 GHz)

PS2012G

PS3216G

DC to 17.5 GHz

DC to 15 GHz

6 ±0.5 dB (DC-10 GHz) 6 ±0.5 dB (DC-10 GHz)

6 ±1.0 dB (10-17.5 GHz) 6 ±1.0 dB (10-15 GHz)

max 0.3dB

1.3 or less (DC to10 GHz)

1.5 or less (10-17.5 GHz)

1.3 or less (DC to 10 GHz)

1.5 or less (10-17.5 GHz)

1.3 or less (DC to10GHz)

1.5 or less (10-15 GHz)

1.3 or less (DC to 10GHz)

1.5 or less (10-15 GHz)

PS5025G

DC to 10 GHz

6 ±0.5 dB (DC-7.5 GHz)

6 ±1.0 dB (7.5-10 GHz)

1.3 or less (DC to7.5 GHz)

1.5 or less (7.5-10 GHz)

1.3 or less (DC to7.5 GHz)

1.5 or less (7.5-10 GHz)

Rated input power

100 mW

Maximum rated power 200 mW

Operating temp.

125 mW

250 mW

-40°C to +125°C

250 mW

500 mW

1000 mW

4.0 Part Number

PS 1608G T2 R50 T1 -LF

RoHS compliant/Lead Free products

Packaging (T = Tape, 1 = 1000/reel; 5 = 5,000/reel)

Impedance

# of output terminals

Size

Product designator

R

EG

I

S

TERE

EG

I

S

TERE

D

47

ISO9001 ISO14001

A4

303

D

A8

561

PS5025GT2R50T1-LF Related Products

	PS5025GT2R50T1-LF	PS2012GT2R50T5-LF	PS5025GT2R50T5-LF	PS3216GT2R50T1-LF	PS2012GT2R50T1-LF	PS3216GT2R50T5-LF	PS1608GT2R50T5-LF	PS1608GT2R50T1-LF
Description	Splitter, 0MHz Min, 10000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 17500MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 10000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 15000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 17500MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 15000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 20000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3	Splitter, 0MHz Min, 20000MHz Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-3
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum operating frequency	10000 MHz	17500 MHz	10000 MHz	15000 MHz	17500 MHz	15000 MHz	20000 MHz	20000 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
JESD-609 code	e3	-	e3	e3	-	e3	e3	e3
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie
Maker	-	-	-	Thin Film Technology Corp (TFT)	Thin Film Technology Corp (TFT)	Thin Film Technology Corp (TFT)	Thin Film Technology Corp (TFT)	Thin Film Technology Corp (TFT)
