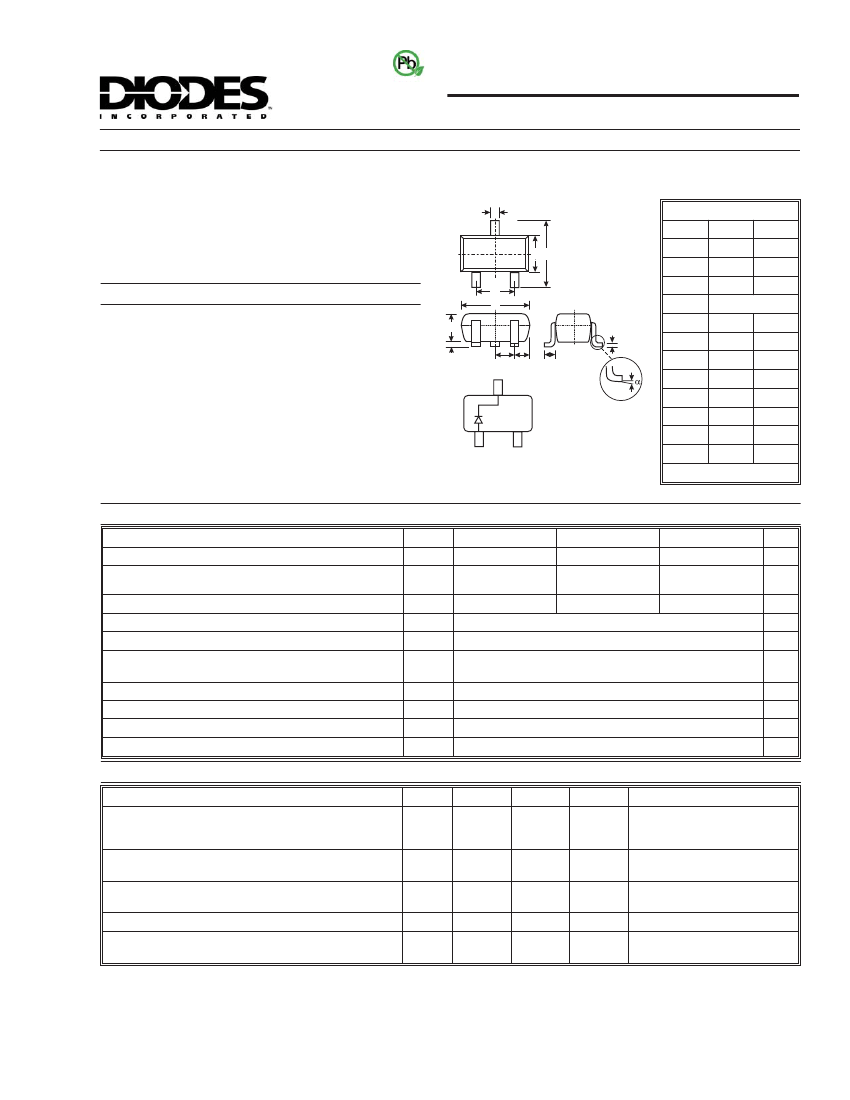

BAS19W - BAS21W
SURFACE MOUNT FAST SWITCHING DIODE
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Fast Switching Speed
Surface Mount Package Ideally Suited for Automatic
Insertion
For General Purpose Switching Applications
High Conductance
Lead Free/RoHS Compliant (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
"Green" Device (Note 4 and 5)
G
H
K
M
B C
A
SOT-323
Dim
A
B
C
D
E
G
H
J
K
L
M
a
Min
0.25
1.15
2.00
0.30
1.20
1.80
0.0
0.90
0.25
0.10
0°
Max
0.40
1.35
2.20
0.40
1.40
2.20
0.10
1.00
0.40
0.18
8°
Mechanical Data
Case: SOT-323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: See Diagram
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
BAS19W Marking: KA8 or KT2 or KT3 (See Page 3)
BAS20W Marking: KT2 or KT3 (See Page 3)
BAS21W Marking: KT3 (See Page 3)
Weight: 0.006 grams (approximate)
0.65 Nominal
J
D
E
L
TOP VIEW
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current @ t = 1.0ms
@ t = 1.0s
Repetitive Peak Forward Surge Current
Power Dissipation
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
I
FRM
P
d
R
qJA
T
j
, T
STG
BAS19W
120
100
71
BAS20W
200
150
106
400
200
2.5
0.5
625
200
625
-65 to +150
BAS21W
250
200
141
Unit
V
V
V
mA
mA
A
mA
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
@ T
A
= 25°C unless otherwise specified
Symbol
BAS19W
BAS20W
BAS21W
V
(BR)R
V
F
I
R
C
T
t
rr
Min
120
200
250
¾
¾
¾
¾
Max
¾
¾
¾
1.0
1.25
100
15
5.0
50
Unit
V
V
nA
mA
pF
ns
Test Condition
I
R
= 100mA
I
F
= 100mA
I
F
= 200mA
T
j
= 25°C
T
j
= 100°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
Forward Voltage
Reverse Current
@ Rated DC Blocking Voltage (Note 2)
Total Capacitance
Reverse Recovery Time
Notes: 1. Part mounted on FR-4 PC board with minimum recommended pad layout, which can be found on our website at
http:/www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
5. Product manufactured with Date Code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
DS30118 Rev. 11 - 2
1 of 3
www.diodes.com
BAS19W - BAS21W
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
100
T
A
= 150ºC
10
T
A
= 125ºC
0.1
1
T
A
= 75ºC
0.1
T
A
= -40ºC
T
A
= 0ºC
T
A
= 25ºC
0.01
0.01
T
A
= 25ºC
T
A
= 75ºC
T
A
= 0ºC
0.001
T
A
= 125ºC
T
A
= 150ºC
T
A
= -40ºC
0.001
0
0.2
0.4
0.8
1.0
1.2
0. 6
1.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

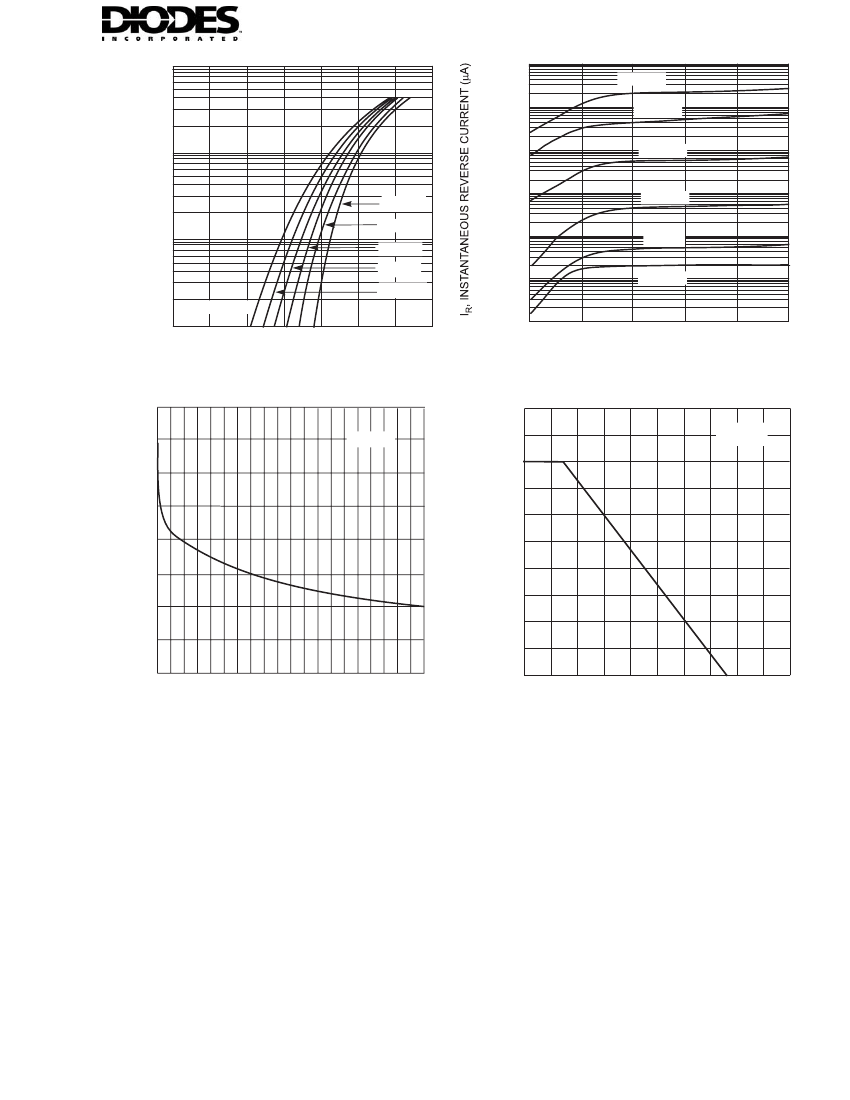

Fig. 1 Typical Forward Characteristics
0.0001
0
50
100
150
200
250
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
4.0
3.5
f = 1.0MHz
250
Note 1
P
d
, POWER DISSIPATION (mW)
0
10
20
30
40
C
T
, TOTAL CAPACITANCE (pF)
3.0
2.5
2.0
1.5
1.0
0.5
0.0
200
150
100
50
0
0
100
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve
200
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance vs. Reverse Voltage
DS30118 Rev. 11 - 2
2 of 3
www.diodes.com
BAS19W - BAS21W
Ordering Information
Device
BAS19W-7-F
BAS20W-7-F
BAS21W-7-F
Notes:
(Note 5 and 6)
Packaging
SOT-323
SOT-323
SOT-323
Shipping
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
5. Product manufactured with Date Code 0609 (week 9, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0609 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
6. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XXX = Product Type Marking Code (See Page 1 Diagrams)
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
XXX
Date Code Key
Year
Code
2000
L
2001
M
2002
N
2003
P
YM
2004
R
2005
S
2006
T
2007
U
2008
V
2009
W
2010
X
2011
Y
2012
Z
Month
Code
Jan
1
Feb
2
March
3
Apr
4
May
5
Jun
6
Jul
7
Aug
8
Sep
9
Oct
O
Nov
N
Dec
D
