SC036R015S5PPBF datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> SC036R015S5PPBF

SC036R015S5PPBF: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 15V V(RRM), Silicon, WAFER; CategoryDiscrete semiconductor diode; File Size235KB，5 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

SC036R015S5PPBF Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 15V V(RRM), Silicon, WAFER

SC036R015S5PPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	WAFER
package instruction	O-XUUC-N
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XUUC-N
JESD-609 code	e3
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	125 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

Bulletin I0501J rev. D 05/01

SC036.....5. Series

SCHOTTKY DIE 036 x 036 mils

0.35 ± 0.01

(14 ± 0.4)

NOTES:

1. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS (MILS).

2. CONTROLLING DIMENSION: (MILS).

40 (157)

3. DIMENSIONS AND TOLERANCES:

a = 0.91 + 0, - 0.01

(36 + 0, - 0.4)

b = 0.91 + 0, - 0.01

(36 + 0, - 0.4)

c = 0.76 + 0, - 0.01

(30 + 0, - 0.4)

d = 0.76 + 0, - 0.01

(30 + 0, - 0.4)

Ø = 0.5 ± 0.1

(20 ± 4)

4. LETTER DESIGNATION:

A = Anode (Top Metal)

C = Cathode (Back Metal)

D = Reject Ink Dot (only on non-conforming dies)

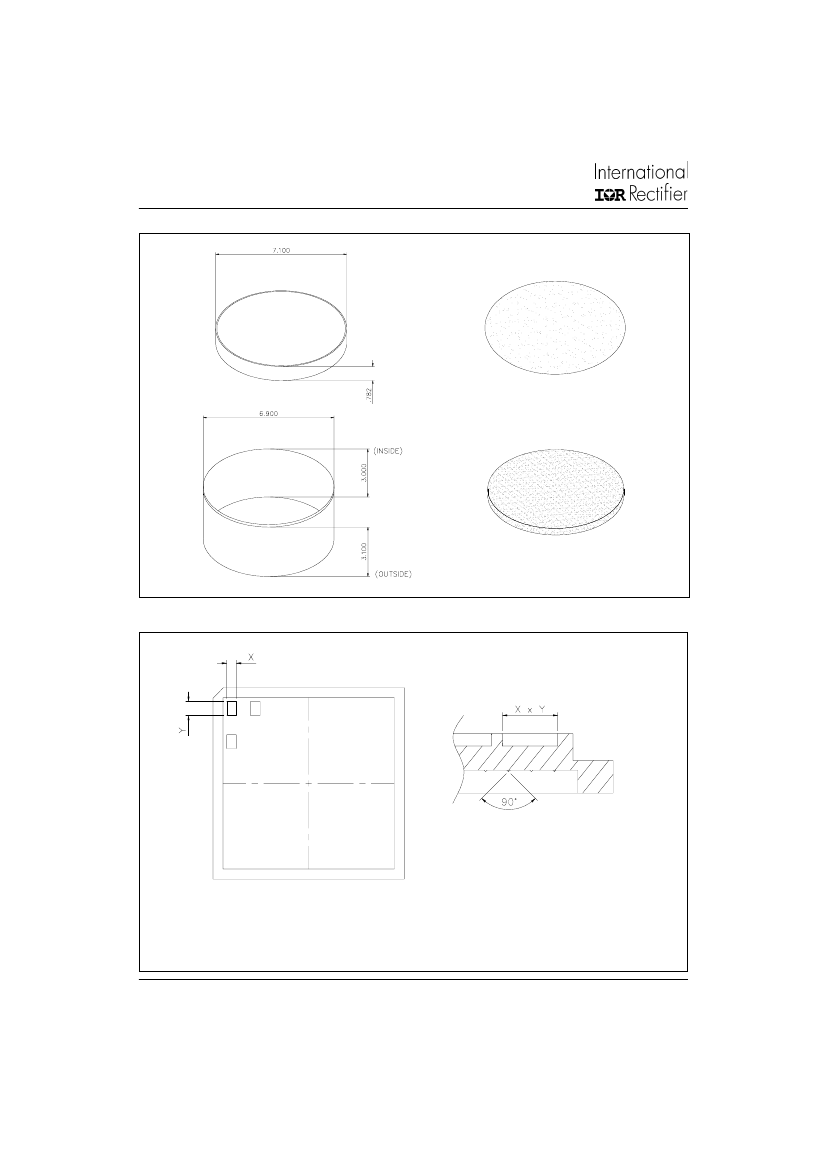

5. SAWING:

Recommended Blade

SEMITEC S1025 QS00 Blade

Sawing Street

0.05 +0, - 0.005

(2 +0, - 0.2)

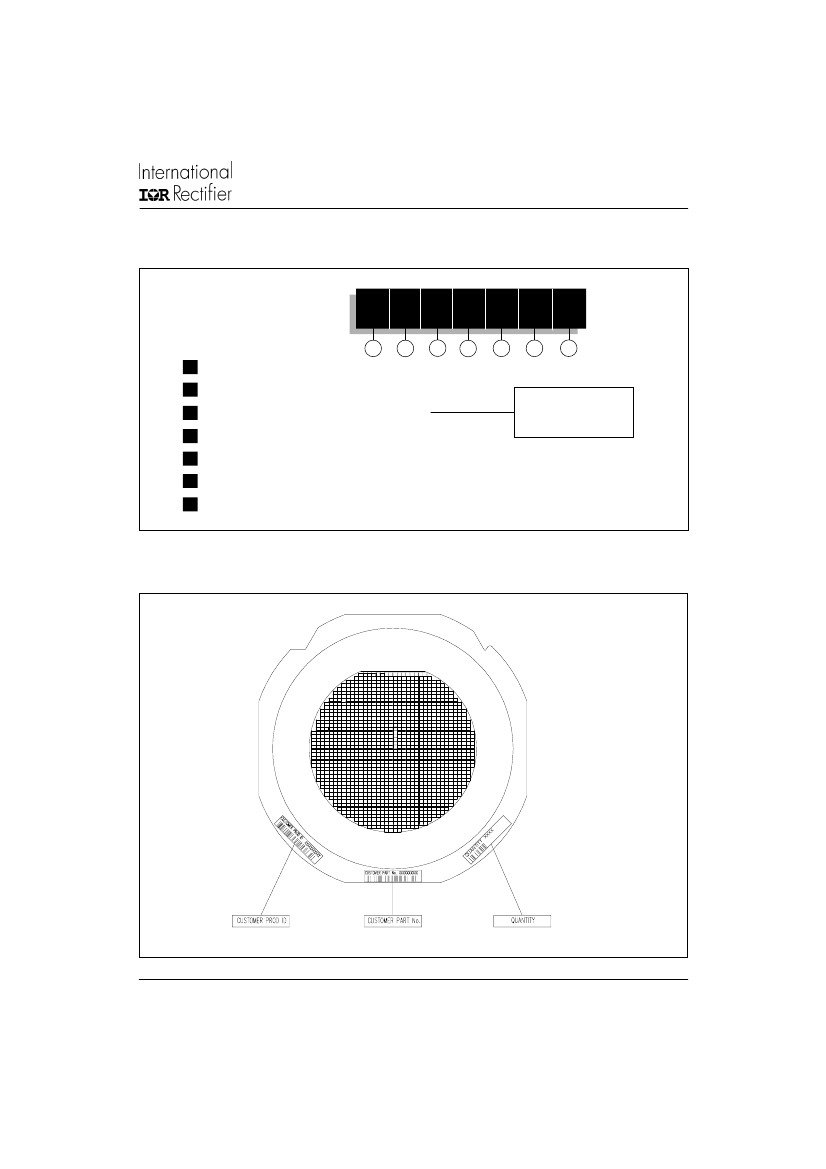

Wafer flat alligned with

side b of the die

Ø 125 (492)

NOT TO SCALE

NOTE:

10 mils die thickness is available on specific request only.

Contact factory for information.

www.irf.com
