SK-A2901-250.0MHZ

Description
Oscillator, 250MHz Min, 550MHz Max, 250MHz Nom
CategoryPassive components    oscillator
File Size100KB,3 Pages
ManufacturerNEL
Websitehttp://www.nelfc.com
Environmental Compliance
Download Datasheet Parametric View All

SK-A2901-250.0MHZ Overview

Oscillator, 250MHz Min, 550MHz Max, 250MHz Nom

SK-A2901-250.0MHZ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionGWDIP8/14,.6
Reach Compliance Codeunknown
Installation featuresSURFACE MOUNT
Number of terminals8
Maximum operating frequency550 MHz
Minimum operating frequency250 MHz
Nominal operating frequency250 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialMETAL
Encapsulate equivalent codeGWDIP8/14,.6
power supply3.3 V
Certification statusNot Qualified
Maximum slew rate120 mA
Nominal supply voltage3.3 V
surface mountYES
Base Number Matches1
CRYSTAL CLOCK OSCILLATORS
Differential Positive ECL (DPECL)
Data Sheet 0105D
Rev. L
SK-A2900 Series
Description
The
SK-A2900 Series
of quartz crystal oscillators provide DPECL Fast Edge compatible signals. This
device is to operate using positive voltage and uses multiple ground pins for improved signal integrity. This
device is intended to operate on positive voltage for PECL applications.
Features
• Wide frequency range–250.0MHz to 700.0MHz
• User specified tolerance available
• Case at electrical ground
• All metal, resistance weld, hermetically sealed
package
• High shock resistance, to 1500g
• Low Jitter - Wavecrest jitter characterization
available
• High Reliability - NEL HALT/HASS qualified for
crystal oscillator start-up conditions
• Overtone technology
• High Q Crystal actively tuned oscillator circuit
• Power supply decoupling internal
• Dual ground plane for added stability
• No internal PLL avoids cascading PLL problems
• High frequencies due to proprietary design
• RoHS Compliant, Lead Free Construction

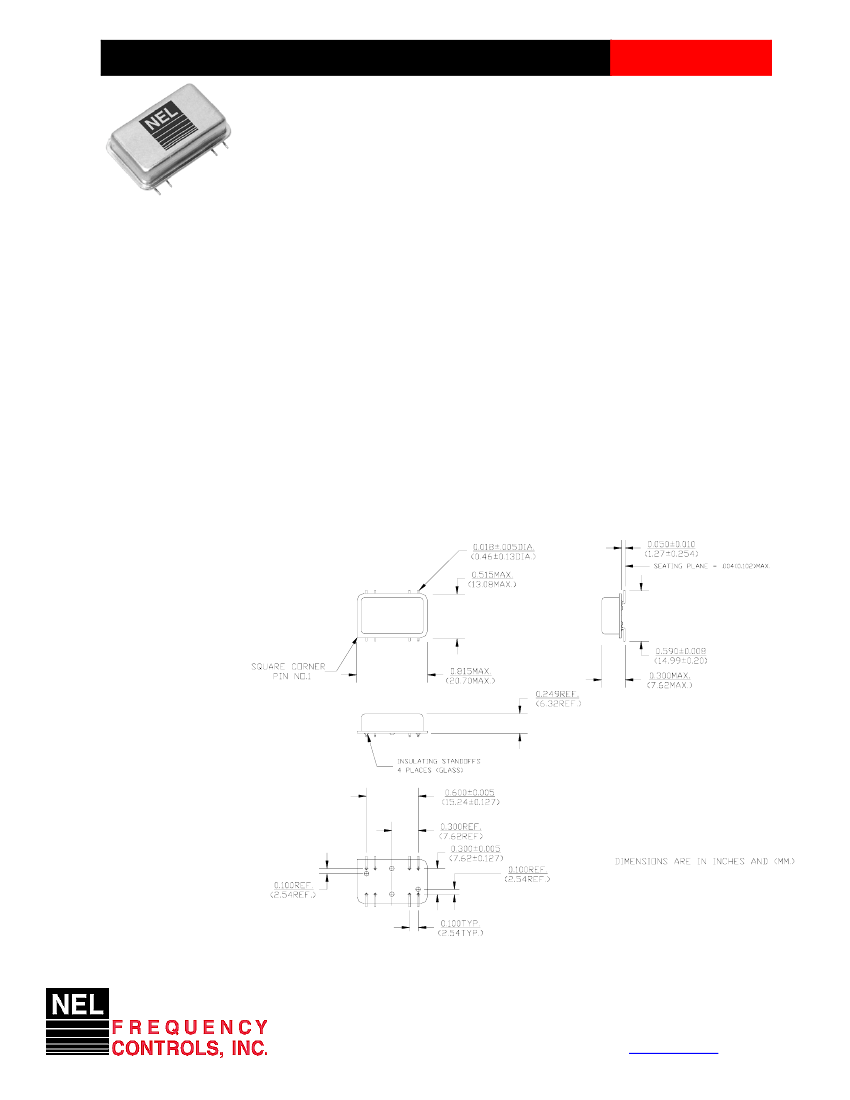

Electrical Connection
Pin
1
2
6
7
8
9
13
14
Connection
V
CC
V
EE
Case
V
EE
Case
Output
/Output
V
EE
Case
V
EE
Case
Enable/Disable
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
