R141.154.000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> R141.154.000

R141.154.000: DescriptionRF BNC Connector, 1 Contact(s), Male, Cable Mount, Clamp Terminal, Locking, Plug,; CategoryThe connector The connector; File Size227KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R141.154.000 Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Clamp Terminal, Locking, Plug,

R141.154.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 174; RG 316, CAPTIVE CENTER CONTACT
subject depth	1.09 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CLAMP
Total number of contacts	1
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

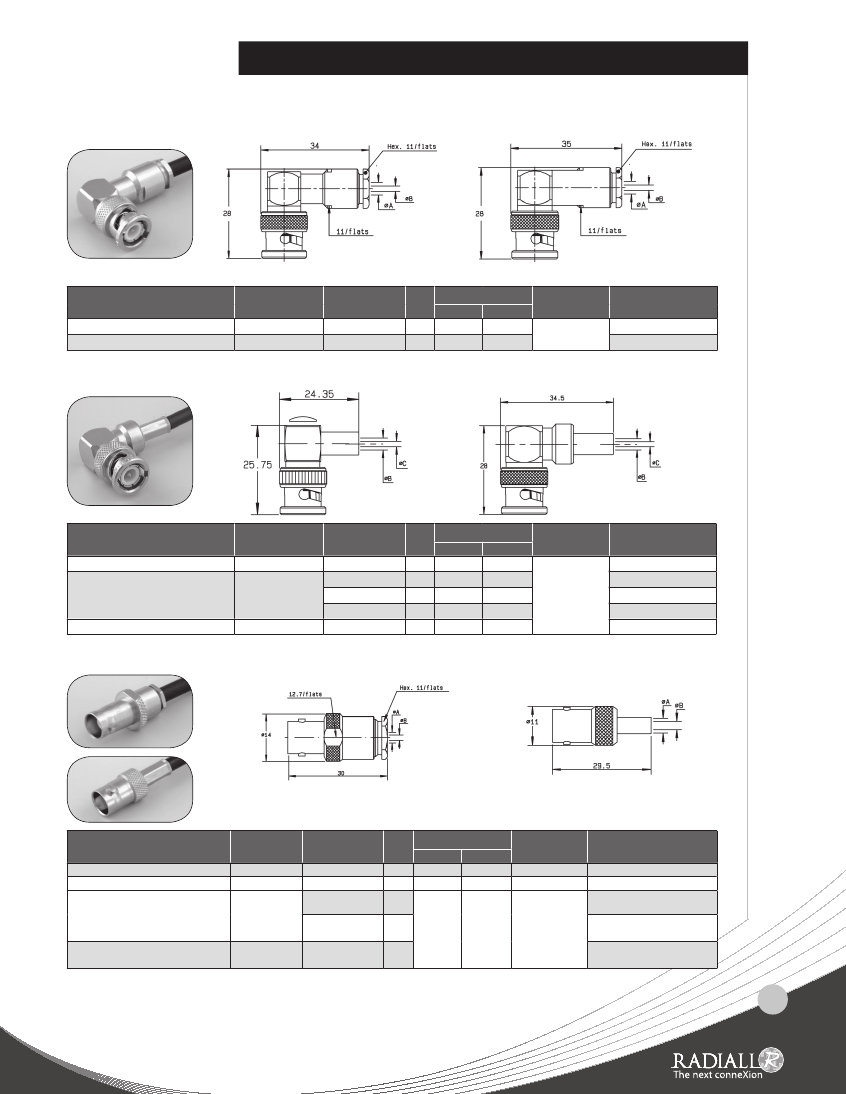

RIGHT ANGLE PLUGS AND STRAIGHT JACKS

RIGHT ANGLE PLUGS CLAmP TYPE fOR fLEXIBLE CABLES

Fig. 1

Cable group

RG174/RG316/RD316

RG58/RG141/RG142/RG223/RG400

Cable group

dia.

2.6/50/S + D

5/50/S + D

Part number

R141 154 000

R141 156 000

Fig.

Fig. 2

Dimensions (mm) Captive center

contact

3.1

0.6

yes

5.6

1.05

Note

100 pieces

Unit packaging

RIGHT ANGLE PLUGS fULL CRImP TYPE fOR fLEXIBLE CABLES

Fig. 1

Cable group

RG174/RG316

RG58/RG141

RG142/RG223/RG400

Cable group

dia.

2.6/50/S

5/50/S

5/50/D

Part number

R141 181 161

R141 182 000

R141 182 161

R141 182 177

R141 183 000

Fig.

Fig. 2

Dimensions (mm) Captive center

Note

contact

3.25

1.7

Commercial version

5.5

1.05

Single piece body

5.5

3.15

yes

Commercial version

5.55

3.2

Non magnetic

5.8

1.05

Single piece body

STRAIGHT JACKS fOR fLEXIBLE CABLES

Fig. 1

Cable group

dia.

RG58/RG141/RG142/RG223/RG400 5/50/S + D

RG174/RG316

2.6/50/S

Cable group

RG58/RG141

RG142/RG223/RG400

5/50/S

5/50/D

Fig. 2

Dimensions (mm) Captive center

contact

5.6

1.05

0.57

yes

Part number

R141 207 000

R141 217 000

R141 237 000

R141 237 161

R141 220 000

Fig.

Note

Clamp type

Full crimp type

Single piece body,

full crimp type

Commercial version,

full crimp type

Single piece body,

full crimp type

10-17

5.5

1.05

yes

For other types of cables (75Ω, 93Ω or BT cables), please see "additional connectors" on page 10-32.

To download data sheets and assembly instructions, visit

www.radiall.com

& enter the part number in the Search box.

Bold

part numbers represent products typically in stock & available for immediate shipment.

See page 8 and 9 for packaging information.

BNC 50Ω

R141.154.000 Related Products

	R141.154.000	1153LDM3040LSN4110	2N1616A	R141.182.000	R141.207.000	R141.183.000
Description	RF BNC Connector, 1 Contact(s), Male, Cable Mount, Clamp Terminal, Locking, Plug,	CAP,AL2O3,15MF,25VDC,20% -TOL,20% +TOL	POWER TRANSISTORS	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Clamp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug,
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown
Other features	APPLICABLE CABLES: RG 174; RG 316, CAPTIVE CENTER CONTACT	-	-	APPLICABLE CABLES: RG 58; RG 141, CAPTIVE CENTER CONTACT	APPLICABLE CABLES: RG 58; RG 141; RG 142	APPLICABLE CABLES: RG 142; RG 223; RG 400, CAPTIVE CENTER CONTACT
Body/casing type	PLUG	-	-	PLUG	JACK	PLUG
Characteristic impedance	50 Ω	-	-	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	-	-	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL	-	-	NOT SPECIFIED	GOLD (20) OVER NICKEL	GOLD
Contact point gender	MALE	-	-	MALE	FEMALE	MALE
Coupling type	BAYONET	-	-	BAYONET	BAYONET	BAYONET
DIN compliance	NO	-	-	NO	NO	NO
Filter function	NO	-	-	NO	NO	NO
IEC compliance	NO	-	-	NO	NO	NO
Insertion loss	0.2 dB	-	-	0.2 dB	0.13 dB	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE	-	-	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	-	-	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	-	-	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	CABLE	-	-	CABLE	CABLE	CABLE
Maximum operating frequency	4 GHz	-	-	4 GHz	4 GHz	4 GHz
Maximum operating temperature	165 °C	105 °C	-	-	165 °C	165 °C
Minimum operating temperature	-65 °C	-40 °C	-	-	-65 °C	-65 °C
Options	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	-	-	NO	NO	NO
Termination type	CLAMP	-	-	CRIMP	CLAMP	CRIMP
voltage standing wave ratio	1.22	-	-	1.22	1.22	1.22
Base Number Matches	1	-	-	1	1	1
