TW-04-06-L-D-250-SM-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> TW-04-06-L-D-250-SM-A

TW-04-06-L-D-250-SM-A: DescriptionBoard Stacking Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size514KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TW-04-06-L-D-250-SM-A Overview

Board Stacking Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT

TW-04-06-L-D-250-SM-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Board mount options	POSITIONING PIN
body width	0.157 inch
subject depth	0.25 inch
body length	0.316 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.5466 mm
Plating thickness	10u inch
Rated current (signal)	4.9 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

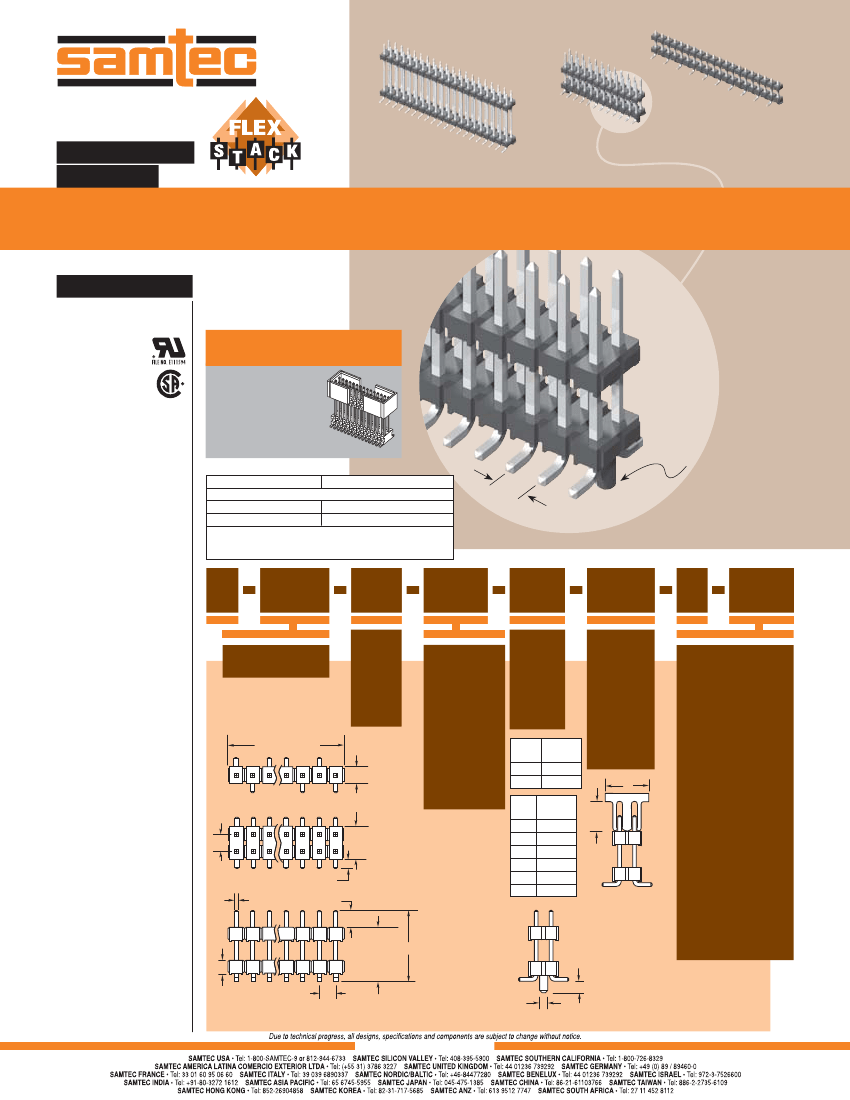

F-211

TW–12–04–L–D–300–SM–A

TW–20–02–T–S–260–SM

(2,00mm) .0787"

TW SERIES

TW–20–07–G–D–550–SM

SMT BOARD STACKERS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?TW

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

Mates with:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS, TCSD

APPLICATION

SPECIFIC OPTIONS

End shrouds with or

without guide posts

available.

Call Samtec for

stacker height ranges

and standard part

numbers on double row.

2mm TW/CLT

Rated @ 3dB Insertion Loss

18mm Stack Height

Single-Ended Signaling

2.5 GHz / 5.0 Gbps

Differential Pair Signaling

3.0 GHz / 6.0 Gbps

Performance data for other stack heights and complete

test data available at www.samtec.com?TW

or contact sig@samtec.com

Available with

optional

Pick & Place

Pads

Available with

optional

Alignment Pins

(2,00mm)

.0787" pitch

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15mm) .006" max

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

below.

(2,00)

.0787

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

OTHER

OPTIONS

–S

–L

= 10µ" (0,25µm)

Gold on post,

Matte Tin on tail

= Single

Row

–“XXX”

= Stacker

Height

in inches

(0,13mm)

.005"

increments

Example:

–250

= (6,35mm)

.250"

(5,33)

.210

02 thru 36

–“XXX”

= Polarized Position

–D

= Double

Row

ROW

OPTION

–A

= Alignment Pin

(Metal or plastic

at Samtec discretion)

(4,83mm) .190" min.

board space

(–D only)

–G

= 20µ" (0,51µm)

Gold on post,

Gold ﬂash on tail

No. of positions

x (2,00) .0787

(5,08) .200

(6,35) .250

–T

= Matte Tin

(4,00)

.1574

–S

–D

LEAD

STYLE

(2,00)

.0787

–P

= Pick & Place Pad

(1,91mm) .075" min.

post height

(04-36 only)

OAL

(7,85) .309

(11,86) .467

(12,37) .487

(15,37) .605

(17,35) .683

(9,86) .388

Note:

Other Gold

plating options

available.

Contact Samtec.

(1,27) .050 TYP

(0,00)

(0,51)

.000 MIN

.020 SQ

STACKER

HEIGHT OAL

(4,32)

.170

MIN

(1,50)

.059

(2,00)

.0787

–02

–03

–04

–06

–07

–09

–TR

–P OPTION

= Tape & Reel

Packaging

(–07 lead style

not available)

(–06 lead style with

–P option not available

as a standard)

(1,27)

.050

(1,09)

.043

DIA

–A OPTION

Note:

This Series is non-

standard, non-returnable.

WWW.SAMTEC.COM
