CIL31S220KBC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CIL31S220KBC

CIL31S220KBC: DescriptionGeneral Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 1206, CHIP, 1206; CategoryPassive components inductor; File Size788KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CIL31S220KBC Overview

General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, SMD, 1206, CHIP, 1206

CIL31S220KBC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1206
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1206
structure	Chip
core material	FERRITE
DC Resistance	0.9 Ω
Nominal inductance(L)	22 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.1 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
method of packing	Tape, Paper
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.005 A
self resonant frequency	16 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

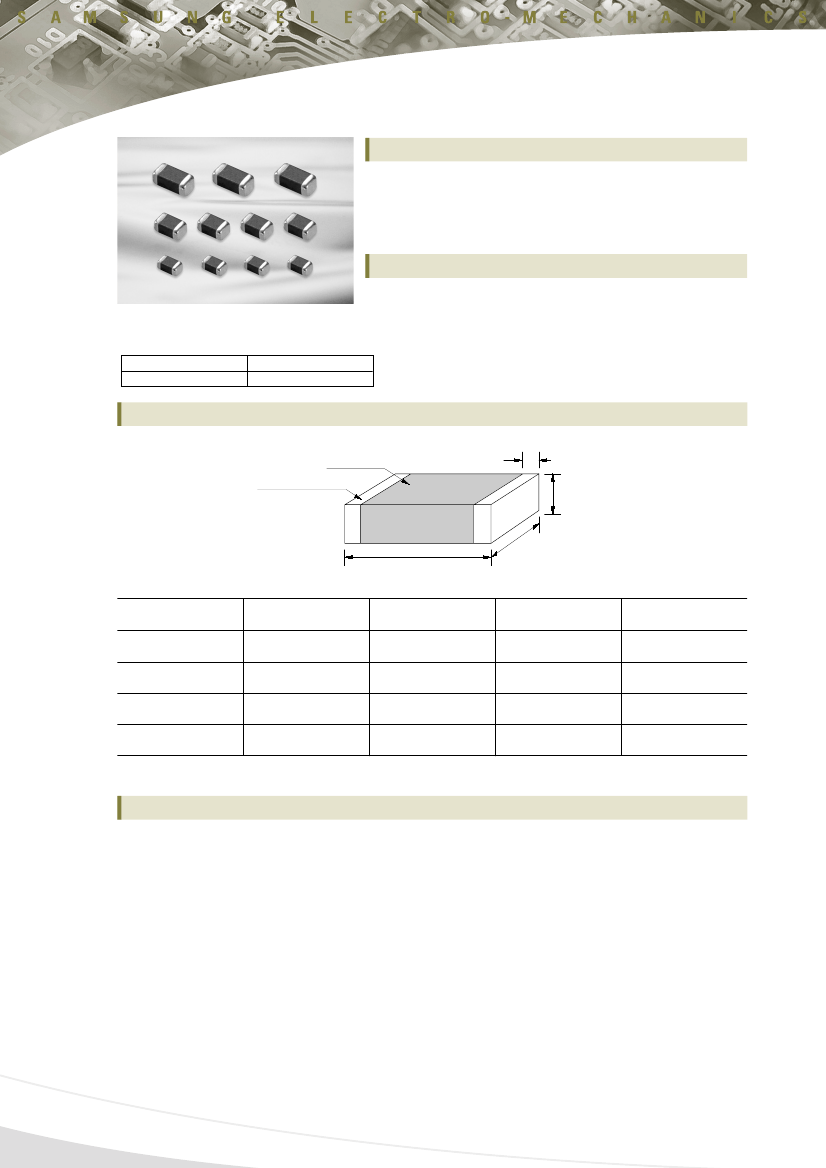

Chip Inductor; CIL Series

General Type

Feature

•Magnetic

shielding eliminates crosstalk, thus permitting higher

mounting density.

•Excellent

solderability and high heat resistance for either flow or

reflow soldering.

•Monolithic

structure for high reliability.

Application

•Resonance

circuits, PLL circuits, Noise suppression, etc.

As it has ferrite body and 100 % Ag internal conductor, the CIL series Inductors have excellent Q characteristics and

free of cross talk.

Operating Temp

Storage Temp

-55~+125

℃

-10~+40

℃

Dimensions

Ferrite Body

External Electrode

Unit : mm

SIZE CODE

1.0±0.05

1.6±0.15

2.0±0.2

3.2±0.2

0.5±0.05

0.8±0.15

1.25±0.2

1.6±0.2

0.5±0.05

0.8±0.15

0.85±0.2

1.25±0.2

0.6±0.2

1.1±0.2

0.25±0.1

0.3±0.2

0.5+0.2,-0.3

Part Numbering

(1)

(2)

(3)

(4)

5R6

(5)

(6)

(7)

(8)

(1) Chip Inductor

(2) L:General Type

(3) Dimension

(4) Material code(N, J, Y, S)

(5) Inductance(R10:0.1

5R6:5.6

100:10

(6) Tolerance(K:±10%, M:±20%)

(7) Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)

(8) Packaging(C:paper tape, E:embossed tape)
