H2266PAB3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> H2266PAB3

H2266PAB3: DescriptionPushbutton Switch, DPDT, Momentary, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size74KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

H2266PAB3 Overview

Pushbutton Switch, DPDT, Momentary, Solder Terminal, Panel Mount-threaded

H2266PAB3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	BUTTON TYPE
Electrical life	25000 Cycle(s)
Manufacturer's serial number	H2200
Installation features	PANEL MOUNT-THREADED
Maximum operating force	30.8 N
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

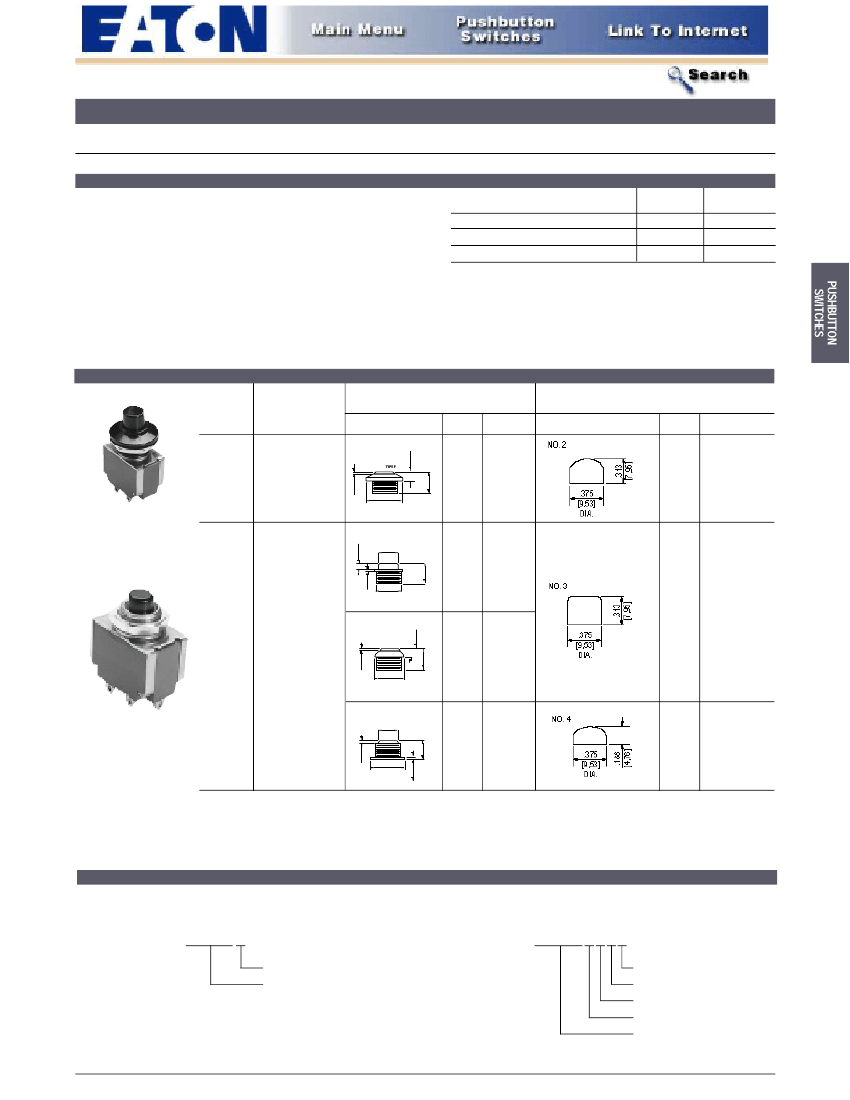

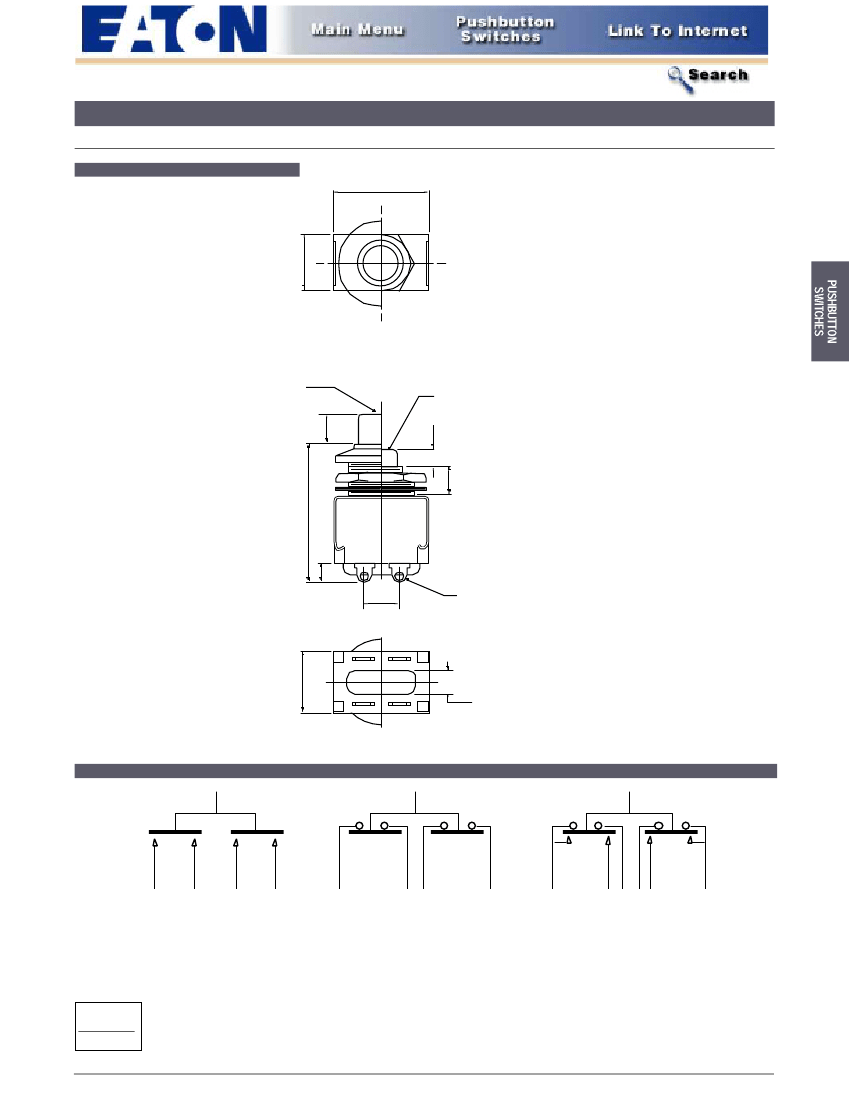

PUSHBUTTON SWITCHES

Series—H2200 Double Pole

FEATURES

• Double pole

• Optional mounting adapters

• Various styles and colors of

pushbuttons

• Solder terminals

• Momentary snap action

• Protective shields can be ordered

separately to prevent accidental

actuation on “W” case model

• Black pushbutton supplied as standar d

• Other colors available

SPECIFICATIONS

• Operating force: 5.5 ± 1.5 lbs (24.2N ± 6.6N)

• Release force: 1 lb minimum (.45g)

• Electrical life: 25,000 operations minimum

at rated load

• Terminals:

Solder

• Weight approx.: .05 lb (.023g)

Catalog

Number

H2211

H2222

H2266

p.f. = .75

Number

of Poles

Momentary Snap Action Pushbutton Switches

CURRENT RATINGS

Type of

Operation

Momentary

28VDC

Inductive

125VAC

Inductiv e

SELECTION TABLE

SERIES AND TYPE

Adapter Type

and Colo rz

Part

Number

H2211

Circuit

2 P.S.T.- NO

Double Break

H2222

2 P.S.T.- NC

Double Break

H2266

2 P.D.T.

Double Break

Black

Clear

PAB

Red

Black

Type

Color

Black

Clear

Code Sufﬁx

Pushbutton Type and Color

Type

Color

Red

Black

Code Sufﬁx

H2211PB3 With

Type “P” Adapter

H2200 Series

Black

Clear

H2266 Without

Mounting Adapter

Black

Clear

Red

Black

Clear anodized aluminum is standard. All threads are 1/2-32 NS-2B internal: 5/8-24 NEF-2A external except as noted.

The different pushbutton types are only available when using with one of the 4 different adapters.

When used with any of these adapters the switch can be used as part of the UPA group of switches on pages 94 and 95.

WHEN ORDERING SPECIFY...

•

For switch with pushbutton only –

specify catalog number of base switch followed by code

for pushbutton color. Use code R for red and leave blank if black button is desired. Examples:

•

For switch with mounting adapter –

specify catalog number of base switch followed

by sufﬁx letters and numbers for type and color of adapter and pushbutton. Example:

H2211R

PLUNGER COLOR

BASIC SWITCH

H2266PB 3R

BUTTON COLOR

BUTTON STYLE

ADAPTOR COLOR

ADAPTOR TYPE

BASE SWITCH AND CIRCUIT

H2266PAB3 Related Products

	H2266PAB3	H2266UB3	H2211PB2	H2211	H2222PB2
Description	Pushbutton Switch, DPDT, Momentary, Solder Terminal, Panel Mount-threaded	Pushbutton Switch, DPDT, Momentary, Solder Terminal, Panel Mount-threaded	Pushbutton Switch, DPST, Momentary, Solder Terminal, Panel Mount-threaded	Pushbutton Switch, DPST, Momentary, Solder Terminal, Panel Mount-threaded	Pushbutton Switch, DPST, Momentary, Solder Terminal, Panel Mount-threaded
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	BUTTON TYPE	BUTTON TYPE	BUTTON TYPE	PLUNGER	BUTTON TYPE
Electrical life	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	30.8 N	30.8 N	30.8 N	30.8 N	30.8 N
surface mount	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	DPDT	DPDT	DPST	DPST	DPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Manufacturer's serial number	H2200	H2200	H2200	-	H2200
Maker	-	-	Eaton	Eaton	Eaton
