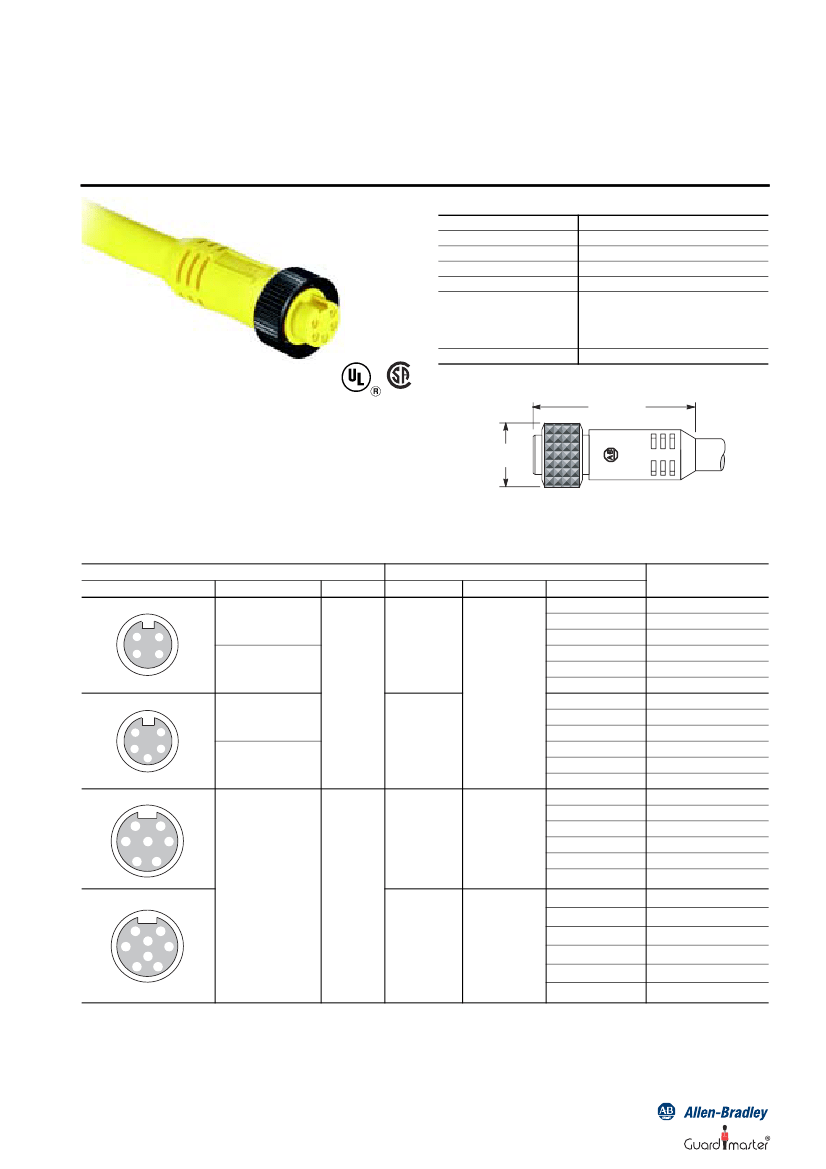

Mini and Mini-Plus Style Quick-Disconnect, 4-pin, 5-pin, 7-pin and 8-pin Cordset

Specifications

Coupling Nut

Connector

Contacts

Approvals

Cable

Cable O.D.

Epoxy-coated zinc

Molded oil-resistant PVC

Gold-plated palladium/nickel

UL recognized and CSA certified

Oil-resistant, yellow PVC jacket, 300V

4/c = 7.4mm (0.29in)

5/c = 7.4mm (0.29in)

7/c = 8.0mm (0.32in)

8/c = 9.0mm (0.35in)

-20°C to +105°C (-4°F to +221°F)

Temperature

Approximate Dimensions—mm (inches)

Features

• 4-, 5-, 7- and 8-pin configurations

• One-piece molded body design for application durability

• Highly visible yellow PVC jacket offers good oil and chemical

resistance

• Ratcheting coupling nut for vibration resistance

➊

55.8 (2.2)

Straight Female

➊

Mini: 25.4 (1.0) Dia.

Mini-Plus: 28.4 (1.12) Dia.

Dimensions are approximate. Illustrations are not drawn to scale.

Cable

Body Size

Wire Colour

1 Black

2 Blue

3 Brown

4 White

Mini

Straight

Product Selection—Mini

Female Connector (Sensor End)

Face View of Female

Connector Style

Straight

Wire Rating

Length—m (ft)

1.8 (6)

3.7 (12)

6.1 (20)

1.8 (6)

3.7 (12)

6.1 (20)

1.8 (6)

3.7 (12)

6.1 (20)

1.8 (6)

3.7 (12)

6.1 (20)

2 (6.5)

5 (16.4)

10 (32.8)

15 (49.2)

20 (65.6)

30 (98.4)

2 (6.5)

5 (16.4)

Catalogue Number

889N-F4AE-6F

889N-F4AE-12F

889N-F4AE-20F

889N-R4AE-6F

889N-R4AE-12F

889N-R4AE-20F

889N-F5AE-6F

889N-F5AE-12F

889N-F5AE-20F

889N-R5AE-6F

889N-R5AE-12F

889N-R5AE-20F

889N-F7AG-2

889N-F7AG-5

889N-F7AG-10

889N-F7AG-15

889N-F7AG-20

889N-F7AG-30

889N-F8AE-2

889N-F8AE-5

889N-F8AE-10

889N-F8AE-15

889N-F8AE-20

889N-F8AE-30

Right Angle

1 Black

2 Blue

3 Grey

4 Brown

5 White

1 Black

2 White

3 Blue

4 Brown

5 Grey

6 Yellow

7 Green

18AWG

300V

Straight

Mini-Plus

(5) 18AWG

(2) 20AWG

300V

1 Red

2 White

3 Blue

4 Brown

5 Grey

6 Yellow

7 Green

8 Pink

18AWG

300V

10 (32.8)

15 (49.2)

20 (65.6)

30 (98.4)

15-12
