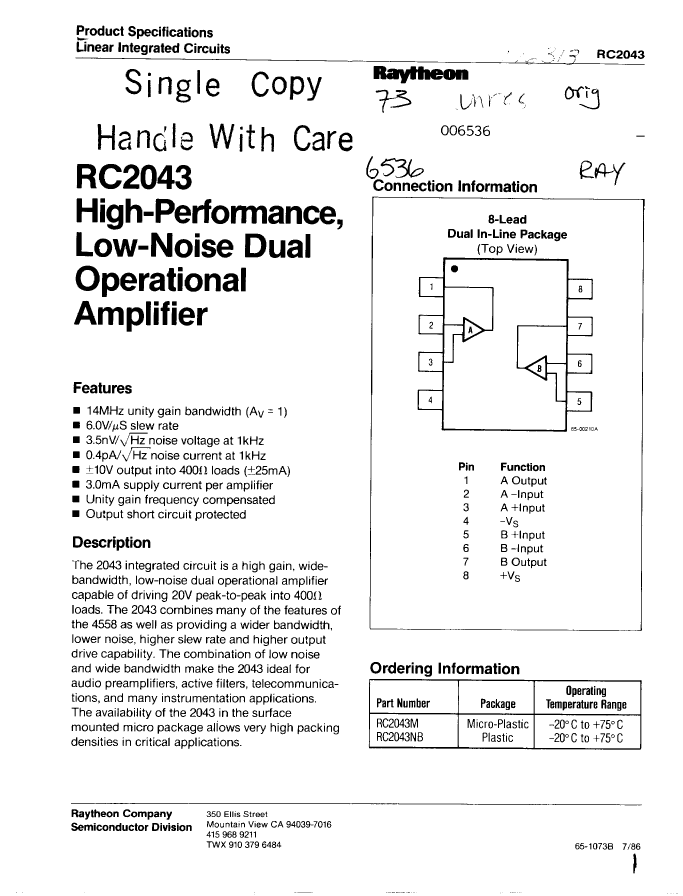

Basic information of RC2043M amplifier:
RC2043M is an OPERATIONAL AMPLIFIER.

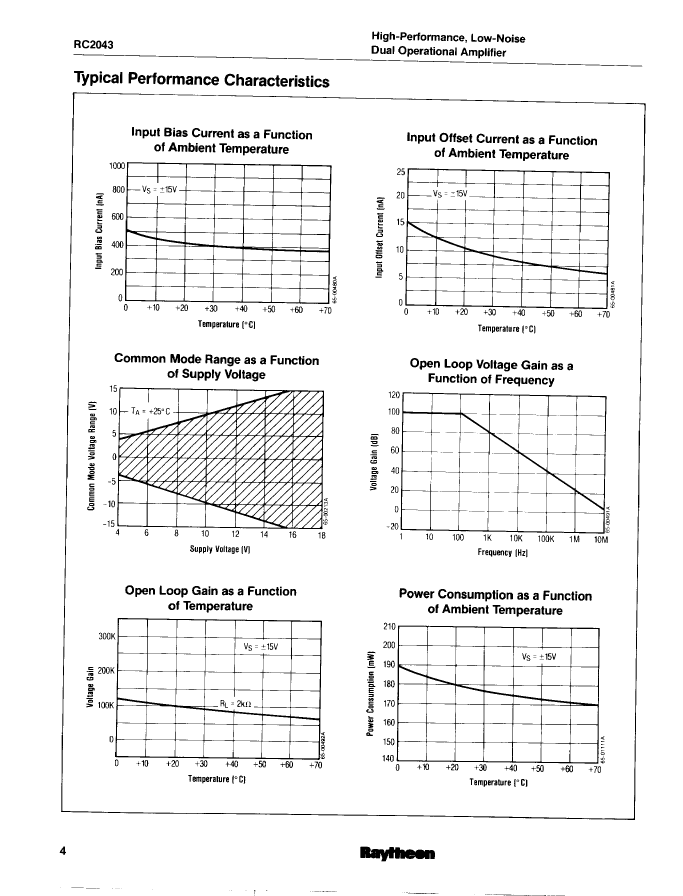

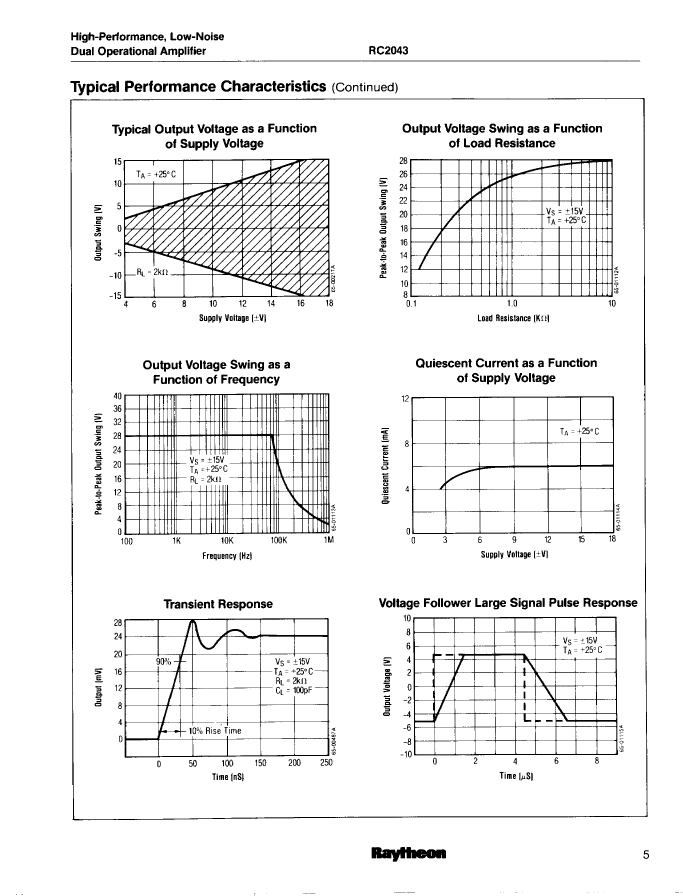

RC2043M amplifier core information:
The minimum operating temperature of RC2043M is -20 °C and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 1 µA
The maximum slew rate of RC2043M given by the manufacturer is 17.3 mA. Its minimum voltage gain is 15000.
The nominal supply voltage of RC2043M is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of RC2043M is 4500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

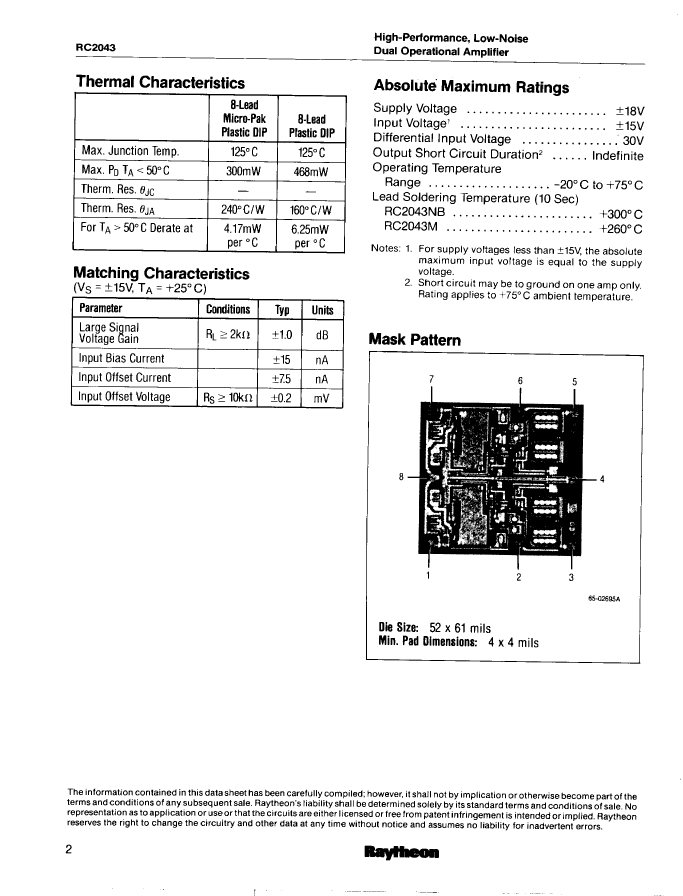

Related dimensions of RC2043M:
RC2043M has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm.
RC2043M amplifier additional information:
RC2043M adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of RC2043M is: YES. Its temperature grade is: COMMERCIAL. RC2043M is not Rohs certified.
The corresponding JESD-30 code is: R-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of RC2043M is: SOP. The materials of RC2043M package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The form of RC2043M package pins is: SMALL OUTLINE. Its terminal forms are: GULL WING.
Basic information of RC2043M amplifier:
RC2043M is an OPERATIONAL AMPLIFIER.
RC2043M amplifier core information:
The minimum operating temperature of RC2043M is -20 °C and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 1 µA
The maximum slew rate of RC2043M given by the manufacturer is 17.3 mA. Its minimum voltage gain is 15000.
The nominal supply voltage of RC2043M is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of RC2043M is 4500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of RC2043M:
RC2043M has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm.
RC2043M amplifier additional information:
RC2043M adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of RC2043M is: YES. Its temperature grade is: COMMERCIAL. RC2043M is not Rohs certified.
The corresponding JESD-30 code is: R-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of RC2043M is: SOP. The materials of RC2043M package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The form of RC2043M package pins is: SMALL OUTLINE. Its terminal forms are: GULL WING.

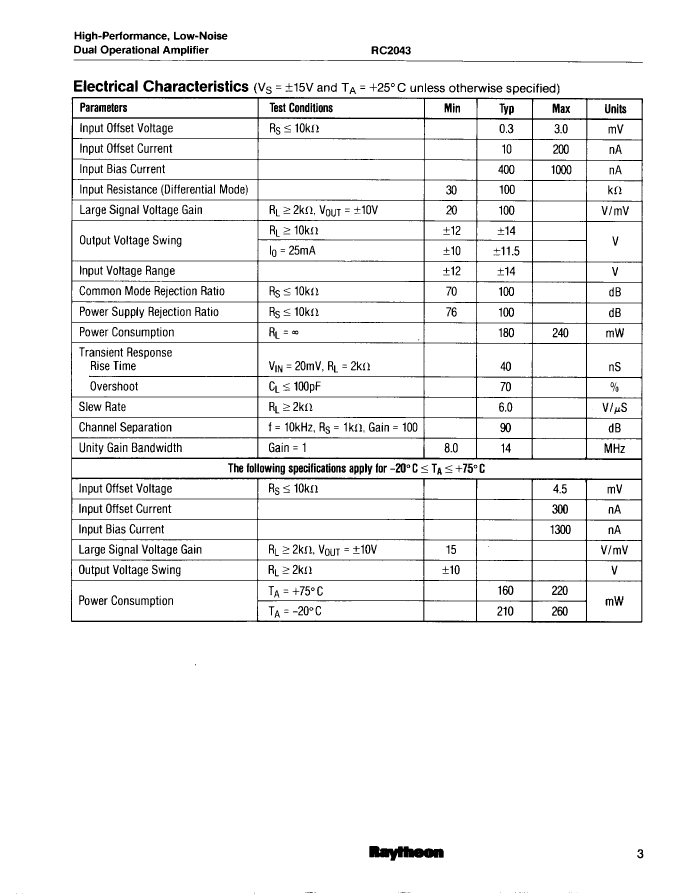

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 1 µA |
| frequency compensation | YES |
| Maximum input offset voltage | 4500 µV |
| JESD-30 code | R-PDSO-G8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP8,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Maximum slew rate | 17.3 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Minimum voltage gain | 15000 |
| Base Number Matches | 1 |
| RC2043M | RC2043NB | |
|---|---|---|
| Description | Operational Amplifier, 2 Func, 4500uV Offset-Max, BIPolar, PDSO8, | Operational Amplifier, 2 Func, 4500uV Offset-Max, BIPolar, PDIP8, |
| Is it Rohs certified? | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 1 µA | 1 µA |
| frequency compensation | YES | YES |
| Maximum input offset voltage | 4500 µV | 4500 µV |
| JESD-30 code | R-PDSO-G8 | R-PDIP-T8 |
| JESD-609 code | e0 | e0 |
| low-dissonance | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 2 | 2 |
| Number of terminals | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C |
| Minimum operating temperature | -20 °C | -20 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP |
| Encapsulate equivalent code | SOP8,.25 | DIP8,.3 |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE |
| power supply | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified |
| Maximum slew rate | 17.3 mA | 17.3 mA |
| Supply voltage upper limit | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | YES | NO |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL |
| Minimum voltage gain | 15000 | 15000 |
| Base Number Matches | 1 | 1 |
