Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
BUT76 BUT76A
DESCRIPTION
・With
TO-220C package
・High
voltage;high speed
・High
power dissipation
APPLICATIONS
・Switching
mode power supply
・Motor
control and relay driver
PINNING
PIN
1
2
3
Base
Collector;connected to
mounting base
Emitter
DESCRIPTION
・
Absolut maximum ratings (Ta=25
℃
)
SYMBOL
PARAMETER
BUT76
V
CBO
Collector-base voltage
BUT76A
BUT76
V
CEO
Collector-emitter voltage
BUT76A
V
EBO
I
C
I
CM
I
BM
P
tot
T
j
T
stg
Emitter-base voltage
Collector current
Collector current-peak
Base current-peak
Total power dissipation
Junction temperature
Storage temperature
电半
固
导½
CONDITIONS
VALUE
850
UNIT
Open emitter
1000
400
Open base
450
V
V
Open collector
7
12
20
6
V
A
A
A
W
℃
℃
T
C
=25℃
110
150
-65~150
THERMAL CHARACTERISTICS
SYMBOL
R
th j-c
PARAMETER
Thermal resistance junction to mounting case
MAX
1.13
UNIT
K/W
Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
PARAMETER
BUT76
V
(BR)CEO
Collector-emitter
breakdown voltage
BUT76A
V
(BR)EBO
Emitter-base breakdown voltage
BUT76
V
CEsat
Collector-emitter
saturation voltage
BUT76A
BUT76
V
BEsat
Base-emitter
saturation voltage
BUT76A
BUT76
I
CES
Collector
cut-off current
BUT76A
h
FE
C
OB
f
T
DC current gain
Output capacitance
Transition frequency
I
C
=5A ;I
B
=1A
V
CE
=850V; V
BE
=0
T
j
=150℃
I
C
=5A ;I
B
=1A
I
C
=6A ;I
B
=1.2A
I
E
=1mA ;I
C
=0
I
C
=6A ;I
B
=1.2A
I
C
=500mA ;L
C
=125mH
CONDITIONS
BUT76 BUT76A
MIN
400
TYP.
MAX
UNIT
V
450
6
V
1.5
V
1.6
V
固电
V
CE
=1000V; V
BE
=0
T
j
=150℃
I
C
=8A ; V
CE
=3V
导½
半
3.2
150
7
0.5
2.0
mA
0.5
2.0
I
E
=0 ;V
CB
=10V;f=1MHz
I
C
=1A ;V
CE
=10V
pF
MHz
Switching times resistive load
t
on
t
s
t
f
Turn-on time
Storage time
Fall time
For BUT76A
I
C
=5A ;I
B1
=-I
B2
=1A;V
CE
=150V
1.0
3.0
0.8
μs
μs
μs
For BUT76
I
C
=6A ;I
B1
=-I
B2
=1.2A;V
CE
=150V
2
Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors

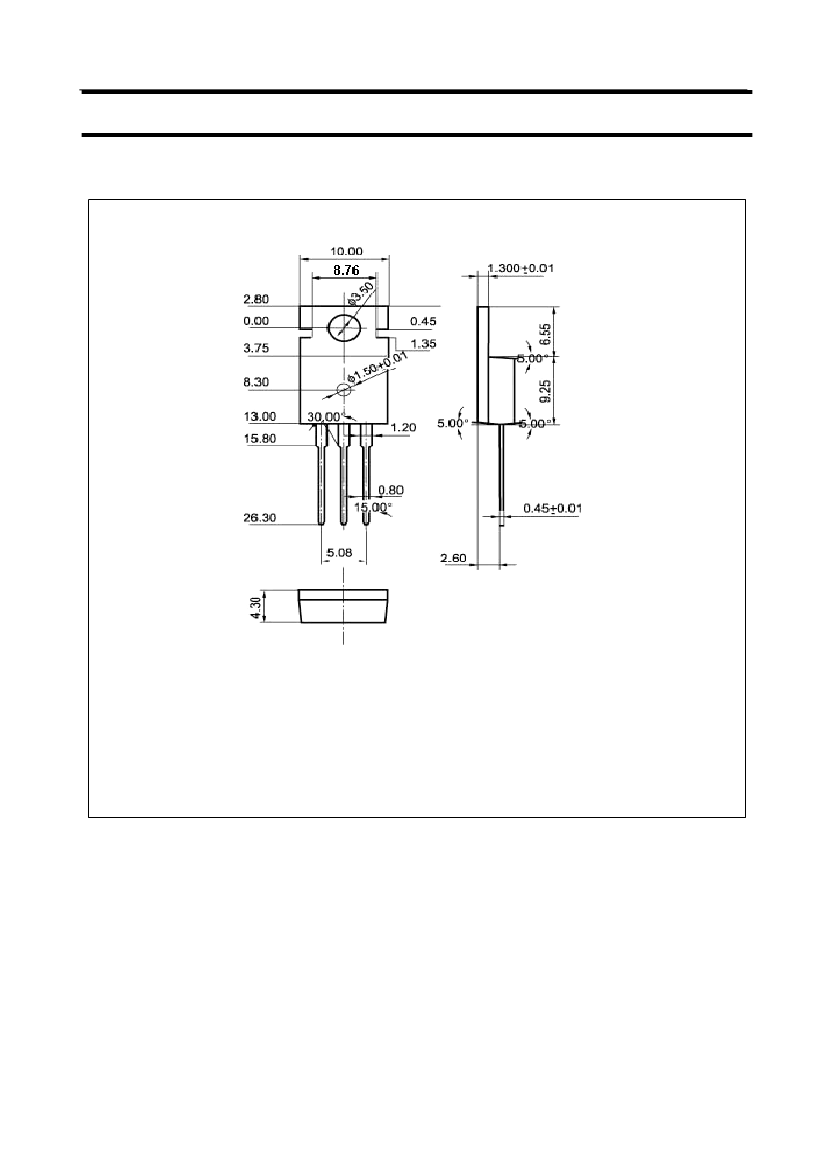

PACKAGE OUTLINE
BUT76 BUT76A
固电
导½
半
Fig.2 Outline dimensions (unindicated tolerance:±0.10mm)
3
