POM (black Polyoxymethylene) shell and collet nut, nickel plated brass latch sleeve and mid
pieces
: 0 - 0 mm
ERN*: Fixed receptacle, nut fixing, with grounding tab
Performance
Configuration
Insulator
Rated Current
3S.304 : 4 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
18 Amps
Specifications
Contact Type: Solder
Vtest: 1500 V (AC), 2100 V (DC)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/4
Others
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

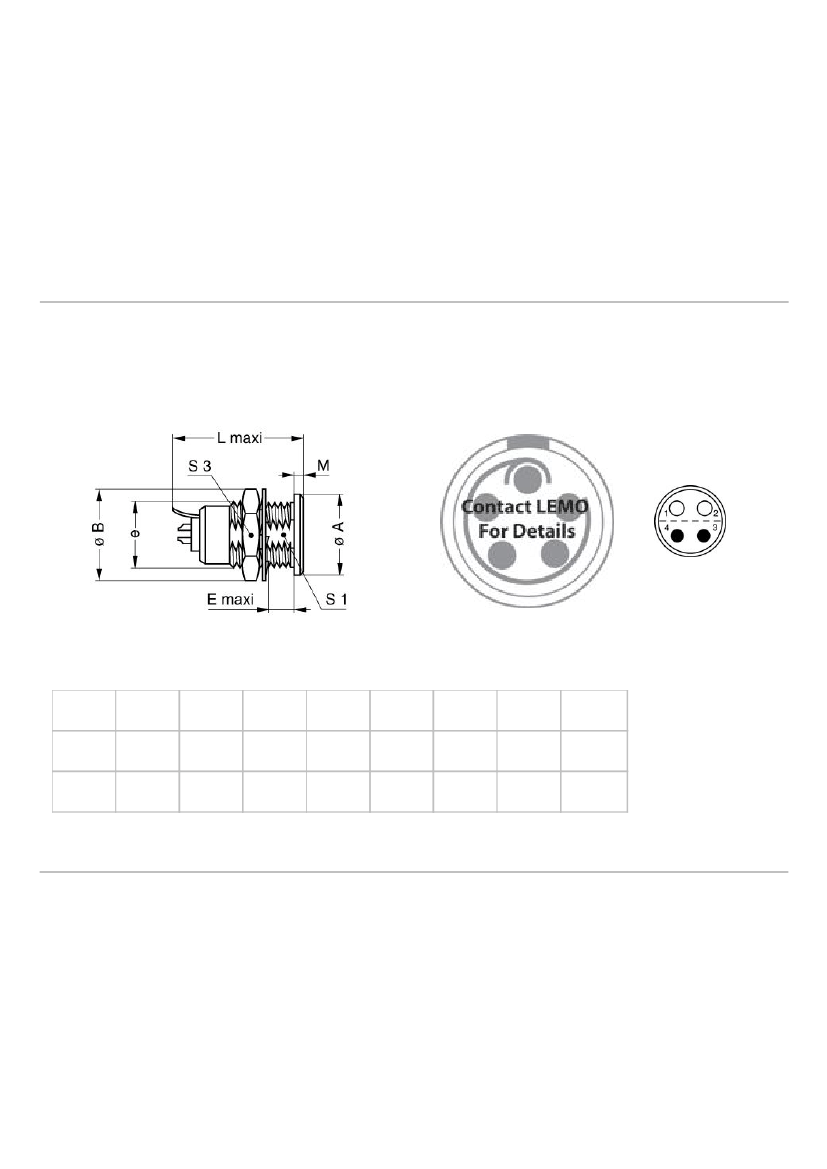

DRAWINGS
Draws
Dimensions
A
mm.
in.
22
0,87
B
25.2
0,99
E
11.5
0,45
L
29.8
1,17
M
2
0,08
S1
16.5
0,65
S3
22
0,87
e
M18x1.0
RECOMMENDED BY LEMO
Tools
None
Cables
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/4

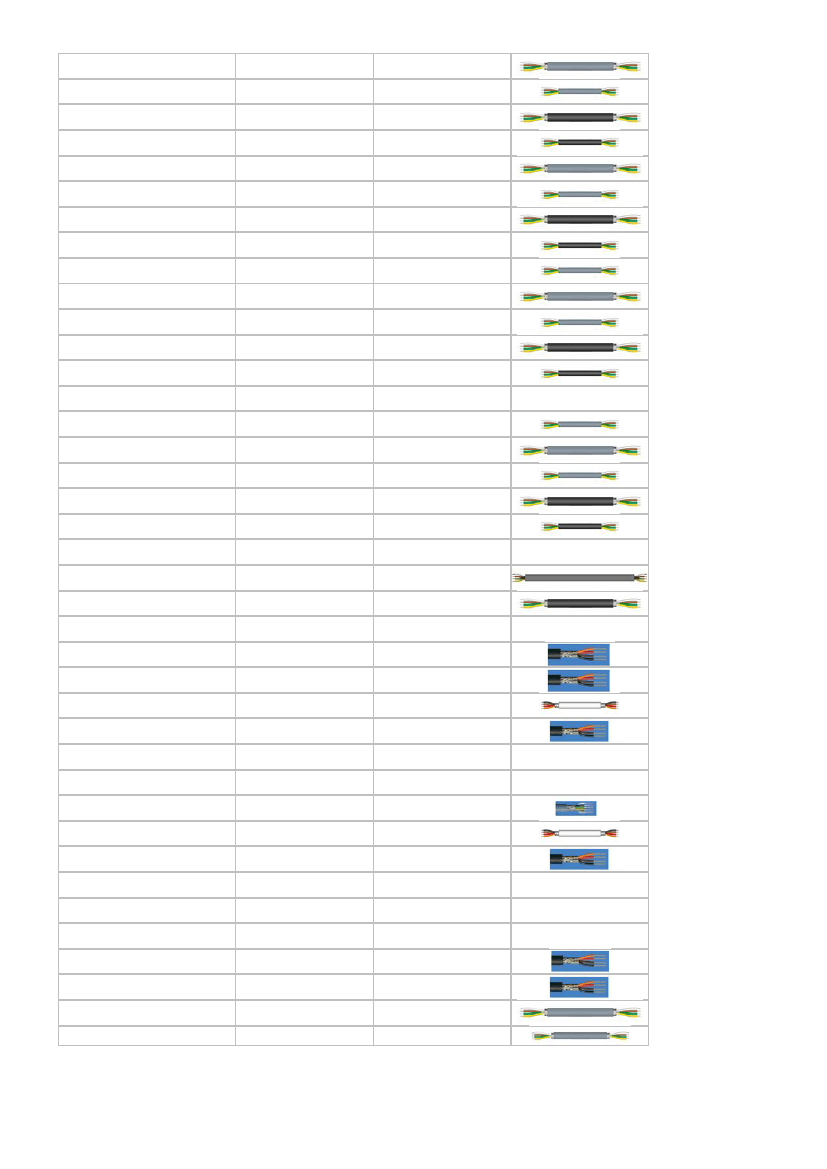

CMN.04.T14.083PGCE
CMN.04.T14.083PGZE
CMN.04.T14.083PNCE
CMN.04.T14.083PNZE
CMN.04.T20.053PGCE
CMN.04.T20.053PGZE
CMN.04.T20.053PNCE
CMN.04.T20.053PNZE
CMN.04.T20.053QGZE
CMN.04.T22.047PGCE
CMN.04.T22.047PGZE
CMN.04.T22.047PNCE
CMN.04.T22.047PNZE
CMN.04.T22.047QGC
CMN.04.T22.048QGZE
CMN.04.T28.031PGCE
CMN.04.T28.031PGZE
CMN.04.T28.031PNCE
CMN.04.T28.031PNZE
CMN.04.T28.031QGC
004 041
004 050
004 080
004 220
004 221
004 260
004 280
040 080
040 086
040 140
040 240
040 260
080 080
080 082
080 084
104 200
140 240
140 250
240 500
PVC
GREY
Grey
PVC
Black
PVC
GREY
Grey
PVC
Black
TPR (medical)
PVC
Grey
GREY
Grey
PVC
Black
TPR
TPR (medical)
PVC
Grey
Grey
GREY
Grey
PVC
Black
TPR
PVC
PVC
PVC
PVC
PVC
PTFE
PVC
PVC
PVC
PVC
PTFE
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
Grey
Grey
Black
Grey
Black
Black
White
Black
Black
Blue
Black
White
Black
Grey
Red
Black
Black
Black
Grey
Grey
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/4
240 750
340 150
417 920
CTR.75.030.121870G
PVC
PVC
PVC
PVC
Grey
Grey
Grey
Grey
