Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
ERN*: Fixed receptacle, nut fixing, with grounding tab
Performance
Configuration
Insulator
Rated Current
3S.432 : 2 High Voltage
J: PEEK/PEEK
6 Amps
Specifications
Contact Type: Solder
Working voltage HV contact - Us (kV rms) 2.1
Test voltage LV Ue (kV rms) -
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Rated current LV (A) -
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

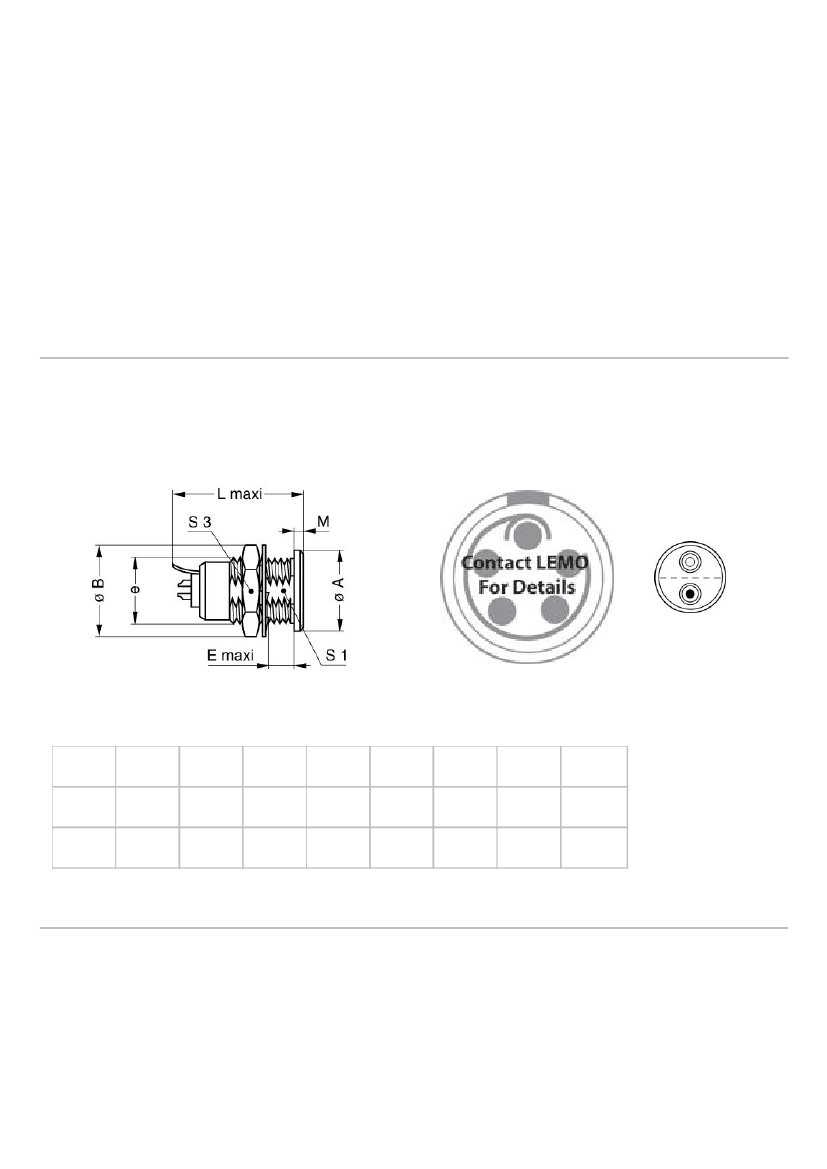

DRAWINGS
Draws
Dimensions
A
mm.
in.
22
0,87
B
25.2
0,99
E
11.5
0,45
L
29.8
1,17
M
2
0,08
S1
16.5
0,65
S3
22
0,87
e
M18x1.0
RECOMMENDED BY LEMO
Tools
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
None
Cables
120 222
121 221
130 222
131 221
150 222
151 221
160 222
161 221
