NC7SB4594P5X

Description
SPST, 1 Func, 1 Channel, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN
CategoryAnalog mixed-signal IC    The signal circuit
File Size123KB,10 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

NC7SB4594P5X Overview

SPST, 1 Func, 1 Channel, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN

NC7SB4594P5X Parametric

Parameter NameAttribute value
Parts packaging codeSOIC
package instructionTSSOP,
Contacts5
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPST
JESD-30 codeR-PDSO-G5
length2 mm
Number of channels1
Number of functions1
Number of terminals5
Maximum on-state resistance (Ron)20 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)3 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width1.25 mm
Base Number Matches1
NC7SB4594 TinyLogic Low Voltage UHS 10Ω Single SPST Normally Open Analog Switch
October 2001
Revised October 2001
NC7SB4594
TinyLogic
Low Voltage UHS 10
Single SPST
Normally Open Analog Switch
General Description
The NC7SB4594 is a ultra high-speed (UHS) CMOS com-
patible single-pole/single-throw (SPST) analog switch or
1-bit bus switch. The LOW on resistance of the switch
allows inputs to be connected to outputs with minimal prop-
agation delay and without generating additional ground
bounce noise. The device is organized as a 1-bit switch
with a switch enable (OE) signal. When OE is HIGH, the
switch is on and Port A is connected to Port B. When OE is
LOW, the switch is open and a high-impedance state exists
between the two ports.
Features
s
Space saving SOT23 or SC70 5-lead package
s
Ultra small MicroPak
leadless package
s
Broad V
CC
Operating Range 2V–5.5V
s
Rail-to-rail signal handling
s
10
switch connection between two ports
s
Minimal propagation delay through the switch
s
Low I
CC
s
Zero bounce in flow-through mode
s
Control input compatible with CMOS input levels
s
>
300 MHz
3dB bandwidth
s
Improved package replacement for the MAX4594
Ordering Code:
Order
Number
NC7SB4594M5X
NC7SB4594P5X
NC7SB4594L6X
Package
Number
MA05B
MAA05A
MAC06
(Preliminary)
Product Code
Top Mark
7B94
B94
94
Package Description
5-Lead SOT23, JEDEC MO-178, 1.6mm
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
6-Lead MicroPak, 1.0mm Wide
Supplied As
3k Units on Tape and Reel
3k Units on Tape and Reel
5k Units on Tape and Reel
TinyLogic and MicroPak are trademarks of Fairchild Semiconductor Corporation.
© 2001 Fairchild Semiconductor Corporation
DS500664
www.fairchildsemi.com

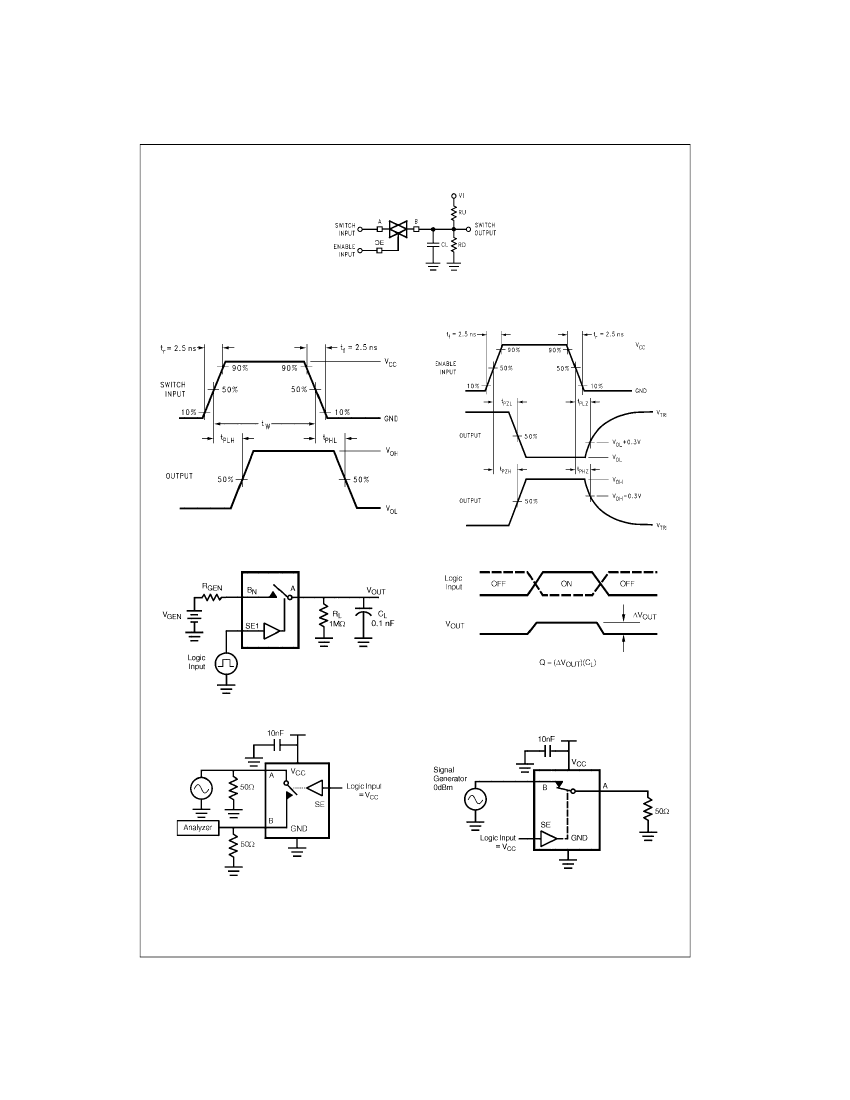

NC7SB4594P5X Related Products

NC7SB4594P5X NC7SB4594M5 NC7SB4594M5X
Description SPST, 1 Func, 1 Channel, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN SPST, 1 Func, 1 Channel, PDSO5, 1.60 MM, MO-178, SOT-23, 5 PIN SPST, 1 Func, 1 Channel, PDSO5, 1.60 MM, MO-178, SOT-23, 5 PIN
Parts packaging code SOIC SOIC SOIC
package instruction TSSOP, LSSOP, LSSOP,
Contacts 5 5 5
Reach Compliance Code unknown unknown unknown
Analog Integrated Circuits - Other Types SPST SPST SPST
JESD-30 code R-PDSO-G5 R-PDSO-G5 R-PDSO-G5
length 2 mm 2.9 mm 2.9 mm
Number of channels 1 1 1
Number of functions 1 1 1
Number of terminals 5 5 5
Maximum on-state resistance (Ron) 20 Ω 20 Ω 20 Ω
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP LSSOP LSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, LOW PROFILE, SHRINK PITCH SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 1.1 mm 1.4 mm 1.4 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2 V 2 V 2 V
Nominal supply voltage (Vsup) 3 V 3 V 3 V
surface mount YES YES YES
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING
Terminal pitch 0.65 mm 0.95 mm 0.95 mm
Terminal location DUAL DUAL DUAL
width 1.25 mm 1.6 mm 1.6 mm
Maker - Fairchild Fairchild
