Technical Data
2031
Effective
August
2017
Supersedes
June
2016
Non-rejecting,
time-delay
fuse and in-line fuse holders
GMF, GRF
GMF
and GRF(fuse) HLR
(fuse holder)
Catalog symbol:
GMF,
GRF
(fuse) HLR (fuse holder)
Ampere Rating:
GMF
3/10
-
6 1/4
A,
GRF 7 - 10 A
Voltage Rating:
300 Volts AC or less
Interrupting Rating:
10,000 A
Agency information
HLR
Fuse
•
UL® Listed, Std. 248-14, Guide JDYX, File E19180
•
CSA® Certified, C22.2 No. 248.14, Class 1422-01,
File 53787
•
CE
Fuse holder
HLR
•
UL Recognized, 12A, 300 Vac, Guide IZLT2, File E14853
•
CSA Certified, 12A, 300 Vac, Class 6225-01, File 47235
•
CE
HLR-2 and HRL-2L
•
UL Recognized, 15A, 300 Vac, Guide IZLT2, File E14853
•
CSA Certified, 15A, 300 Vac, Class 6225-01, File 47235
•
CE
Product features
•
HLR carrier comes with 6” of #18 red insulated solid
copper wire attached to the line side
•
Customer inserts a #18 insulated solid copper wire into
load side receptacle
•
Order part number HLR-2 to obtain 6”
of #18 black insulated solid copper wire pre-installed in a
load side receptacle
•
Order part number HLR-2L to obtain 6”
of #18 black insulated solid copper wire packaged loose
(un-installed)
•
An alternative to the HLR fuseholder is
the A fuseholder. The A fuseholder comes WITHOUT
leads. The customer inserts #18 insulated solid copper
wire into the line side receptacle as well as into the load
side receptacle. It has the same body dimensions, utilizes
the same mounting hole, and takes the same mounting
clips as the HLR. The A fuseholder is UL Recognized, 10A,
300Vac, Guide IZLT2, File E14853 and CSA Certified, 10A,
300Vac, Class 6225-01, File 47235
•
Fuse and knob are an integral one-piece unit. There are no
replacement knobs (caps)
•
Units can be panel mounted with a separate steel clip. For
the knockout hole (see above), choose #BK/A-104. For the
keyhole punch type hole, choose #6374 for panels 0.043”
to 0.062” thick, or #4909 for panels 0.030” to 0.042” thick
•
Do not put tension on line (rear) terminal of fuseholder
Catalog numbers
Fuse
GMF-3/10
GMF-1/2
GMF-6/10
GMF-8/10
GMF-1
GMF-1 1/4
GMF-1 6/10
GMF-2
GMF-2 1/2
GMF-2 8/10
Holder
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR
Fuse
GMF-3
GMF-3 2/10
GMF-4
GMF-5
GMF-6 1/4
GRF-7
GRF-8
GRF-10
GMF-10
Holder
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR
Effective
August
2017
Technical Data
2031
GMF and GRF(fuse) HLR (fuse holder)
Non-rejecting, time-delay fuse and in-line fuse holders

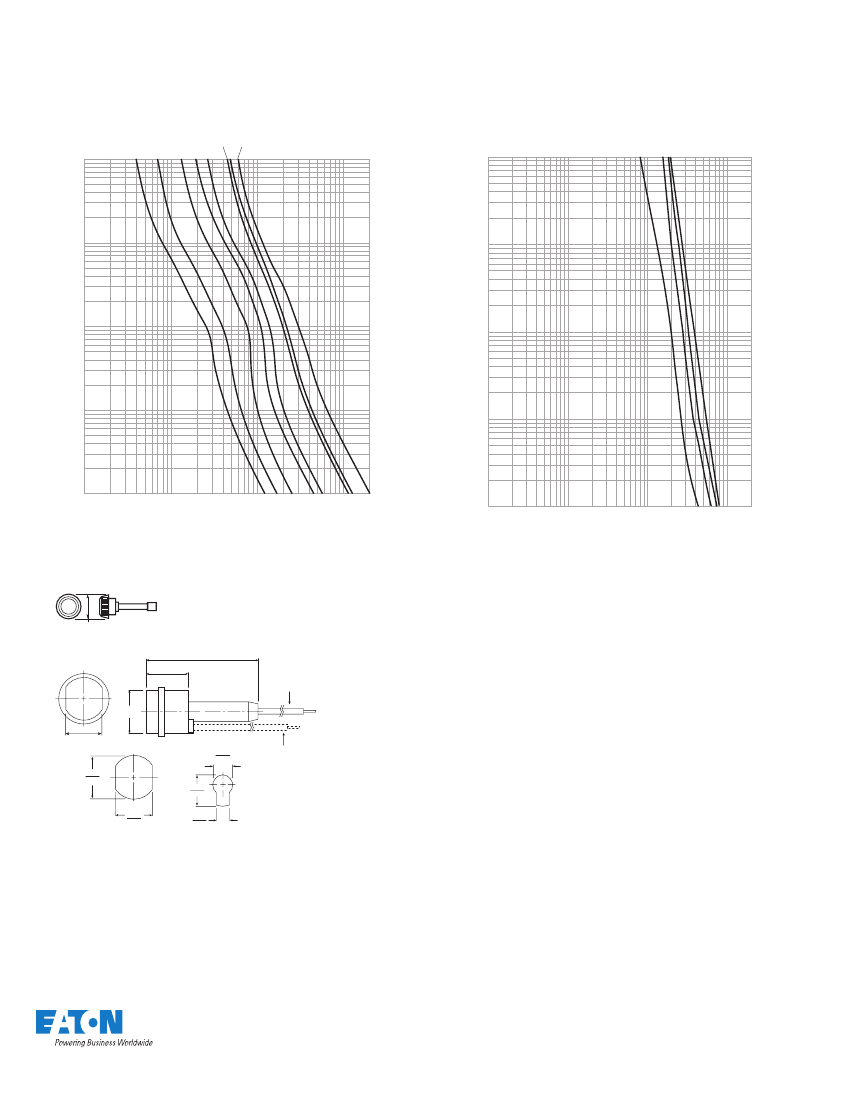

Time-current curves–average melt
Amp
rating
Time-current curves–average melt
100
Amp
rating
5
7
8
10
100
10
1
1.6
2
0.3
0.5
3
3.2
4
10
Time in seconds
1
Time in seconds
1
.1
0.1
0.1
0.01
100
200
1
10
100
RMS symmetrical current in amps
RMS symmetrical current in amps
Dimensions - in (mm):
Fuse
(15.9mm)
0.63"
Fuse and carrier
0.850"
(21.59mm)
2.250"
(57.15mm)
Line lead
0.850"
(21.59mm)
0.720"
(18.29mm)
C
L
Mounting hole
0.870"
(22.10mm)
Load lead
0.410"
(10.41mm)
0.635"
(16.13mm)
0.740"
(18.80mm)
Knockout hole
0.255"
(6.48mm)
Keyhole punch
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
2031
SB02233
August
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
200
1
0.1
10
0.01
