M80-6462006: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size252KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-6462006 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

M80-6462006 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	M80
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

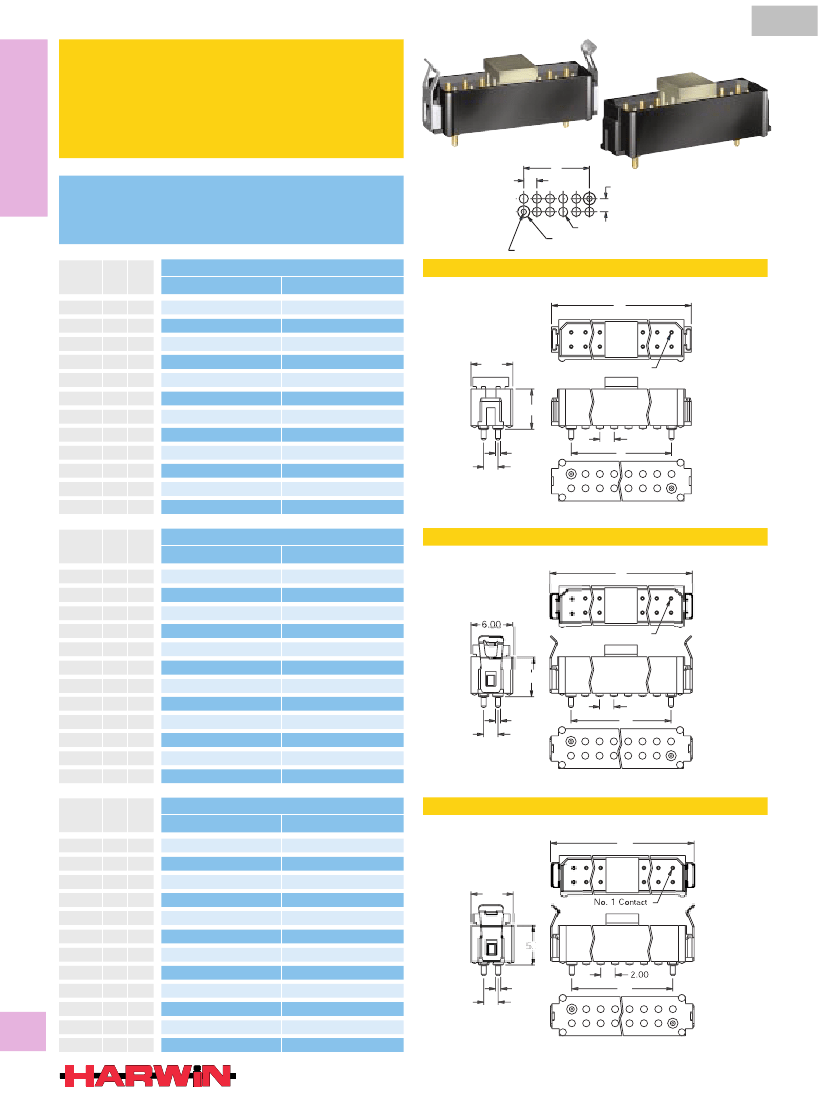

Surface Mount Male Connectors

- Ver tical

'B'

2mm PITCH

7

q

With pick and place pad.

Locating pegs to facilitate location on pcb.

Packed in tubes.

For Tape and Reel options, contact Technical Sales.

Order Code

Tin

M80-6460406

M80-6460606

M80-6460806

M80-6461006

M80-6461206

M80-6461406

M80-6461606

M80-6461806

M80-6462006

M80-6462606

M80-6463406

M80-6464406

Gold

M80-6460405

M80-6460605

M80-6460805

M80-6461005

M80-6461205

M80-6461405

M80-6461605

M80-6461805

M80-6462005

M80-6462605

M80-6463405

M80-6464405

Recommended

PC Board

Pattern

2.00

Ø1.40

2 x Ø1.85

2 x Ø0.85-0.80

No. of

A

Ways

2+2

3+3

4+4

5+5

6+6

7+7

8+8

9+9

10+10

13+13

17+17

22+22

B

UNLATCHED

A

7.6 2.0

9.6 4.0

11.6 6.0

13.6 8.0

15.6 10.0

17.6 12.0

19.6 14.0

21.6 16.0

23.6 18.0

29.6 24.0

37.6 32.0

47.6 42.0

B

6.00

No. 1 Contact

5.75

2.00

Ø0.70

2.00

B

No. of

A

Ways

2+2

3+3

4+4

5+5

6+6

7+7

8+8

9+9

10+10

13+13

17+17

22+22

Order Code

Tin

M80-6470406

M80-6470606

M80-6470806

M80-6471006

M80-6471206

M80-6471406

M80-6471606

M80-6471806

M80-6472006

M80-6472606

M80-6473406

M80-6474406

Gold

M80-6470405

M80-6470605

M80-6470805

M80-6471005

M80-6471205

M80-6471405

M80-6471605

M80-6471805

M80-6472005

M80-6472605

M80-6473405

M80-6474405

LATCHED

A

8.1 2.0

10.1 4.0

12.1 6.0

14.1 8.0

16.1 10.0

18.1 12.0

20.1 14.0

22.1 16.0

24.1 18.0

30.1 24.0

38.1 32.0

48.1 42.0

B

No. 1 Contact

5.75

2.00

Ø0.70

2.00

B

No. of

A

Ways

2+2

3+3

4+4

5+5

6+6

7+7

8+8

9+9

10+10

13+13

17+17

22+22

Order Code

Tin

M80-6480406

M80-6480606

M80-6480806

M80-6481006

M80-6481206

M80-6481406

M80-6481606

M80-6481806

M80-6482006

M80-6482606

M80-6483406

M80-6484406

Gold

M80-6480405

M80-6480605

M80-6480805

M80-6481005

M80-6481205

M80-6481405

M80-6481605

M80-6481805

M80-6482005

M80-6482605

M80-6483405

M80-6484405

North/South America

Tel: +1 812 285 0055

E-mail: mis@harwin.com

WITH FRICTION LOCK

A

8.1 2.0

10.1 4.0

12.1 6.0

14.1 8.0

16.1 10.0

18.1 12.0

20.1 14.0

22.1 16.0

24.1 18.0

30.1 24.0

38.1 32.0

48.1 42.0

6.00

75

Ø0.70

2.00

B

Europe/Middle East

Tel: +44 (0) 23 9237 0451

E-mail: mis@harwin.co.uk

Asia/Pacific

Tel: +65 779 4909

E-mail: mis@harwin.com.sg
