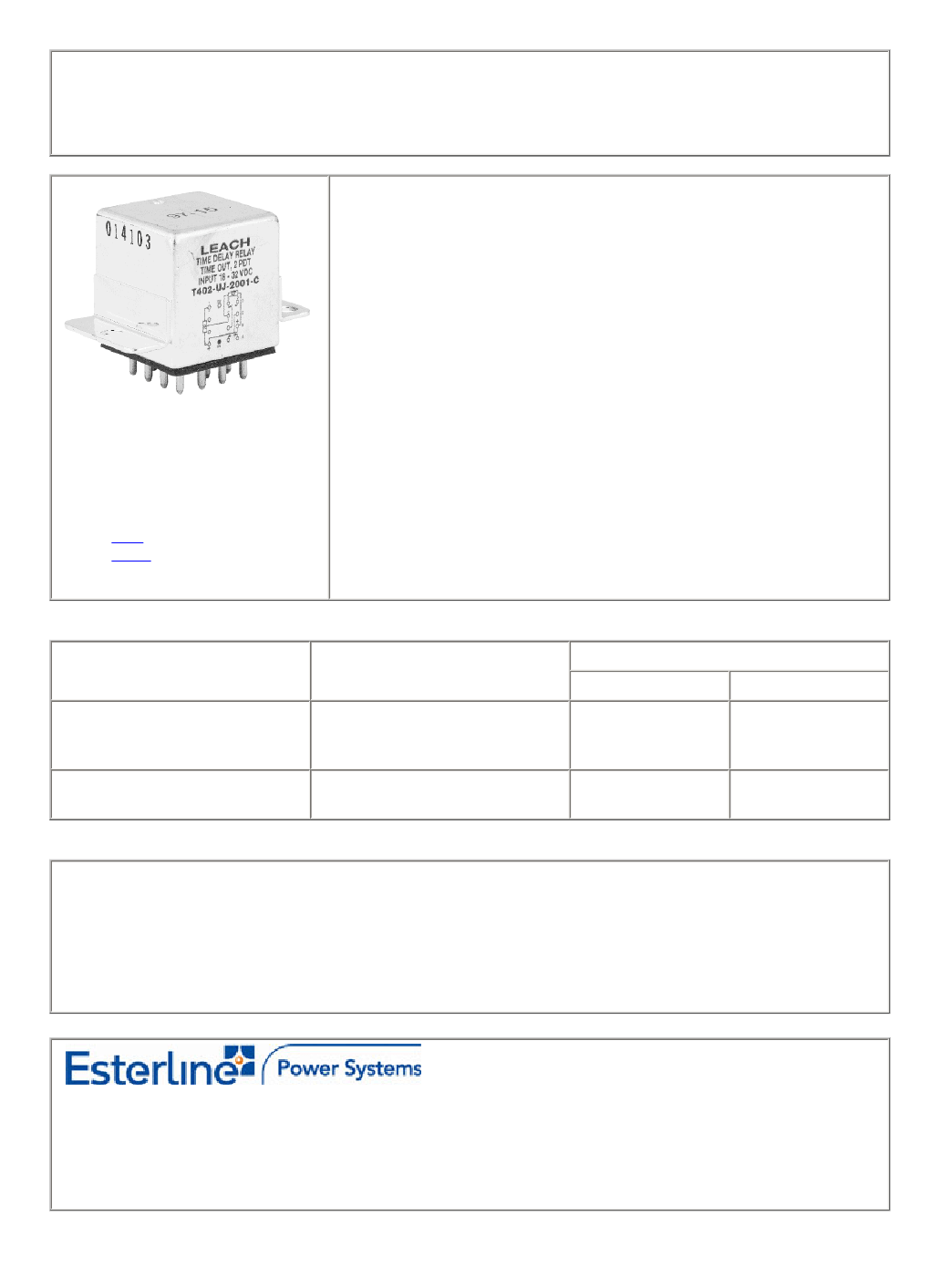

T402
ENGINEERING DATA SHEET
TIME DELAY RELAY
2 PDT, 2 AMP
Time delay relay on operate or on release
Fixed or adjustable timing delay
Contact arrangement
Power supply
2 PDT
28 Vdc
PRINCIPLE TECHNICAL CHARACTERISTICS
Contacts rated at
Weight
Dimensions of case
2 Amps / 28 Vdc
< 60 grams
44mm x 25.7mm x 26mm max
Hermetically sealed, corrosion protected metal can.
APPLICABLE SOCKET:
S400
SC40*
CONTACT ELECTRICAL CHARACTERISTICS
Minimum
operating cycles
100,000 cycles
100,000 cycles
500,000 cycles
100 cycles
Contact rating per
pole and load type
resistive load
inductive load (L/R=5ms)
low level (30µA/30mV max)
Solid state output on
C2 resistive overload
Load Current in Amps
@28VdC
2
0.75
-
4
@115Vac/60-400Hz
0.3
-
-
-
NUMBERING SYSTEM
T402 - A E - 1001 - A
Basic series designation__________________________|
| |
|
|
1-Types Of Operation (A,B,D,F,U,W)________________________| |
|
|
2-Temperature range and timing accuracy (E,L,J,K)___________|
|
|
3-Timing range (4 digits)________________________________________|
|
4-Mounting style and terminal types (A,B,C,D)___________________________|
Featuring
LEACH
©
power and control solutions
www.esterline.com
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 3/06
- 61 -
Page 1 of 4
TYPES OF OPERATION
28 V
CODE A : TIME DELAY ON OPERATE,
FIXED TIME
0 V
TIME
CODE B : TIME DELAY ON OPERATE,
OUTPUT
ADJUSTABLE WITH EXTERNAL RESISTOR
DE-ENERGIZED
T402
POWER SUPPLY
ENERGIZED
28 V
0 V
CODE D : TIME DELAY ON RELEASE,
POSITIVE CONTROL, FIXED TIME
CONTROL
CODE F : TIME DELAY ON RELEASE,
POSITIVE CONTROL, ADJUSTABLE WITH
EXTERNAL RESISTOR
OUTPUT
DE-
POWER SUPPLY
ENERGIZED
TIME
ENERGIZED
CODE U : TIME DELAY ON RELEASE,
FIXED TIME
CODE W : TIME DELAY ON RELEASE,
28 V
0 V
POWER SUPPLY
TIME
ADJUSTABLE WITH EXTERNAL RESISTOR OUTPUT
ENERGIZED
DE-ENERGIZED
TEMPERATURE RANGE AND TIMING ACCURACY
Code
E
L [4]
J
K [4]
Temperature
-55° C to +85° C
-55° C to +85° C
-55° C to +125° C
-55° C to +100° C
Accuracy
±10%
±5%
±10%
±5%
Limitations
±10 ms below 200 ms
not below 500 ms
±10 ms below 200ms
not below 500 ms
Date of issue: 3/06
- 62 -
Page 2 of 4

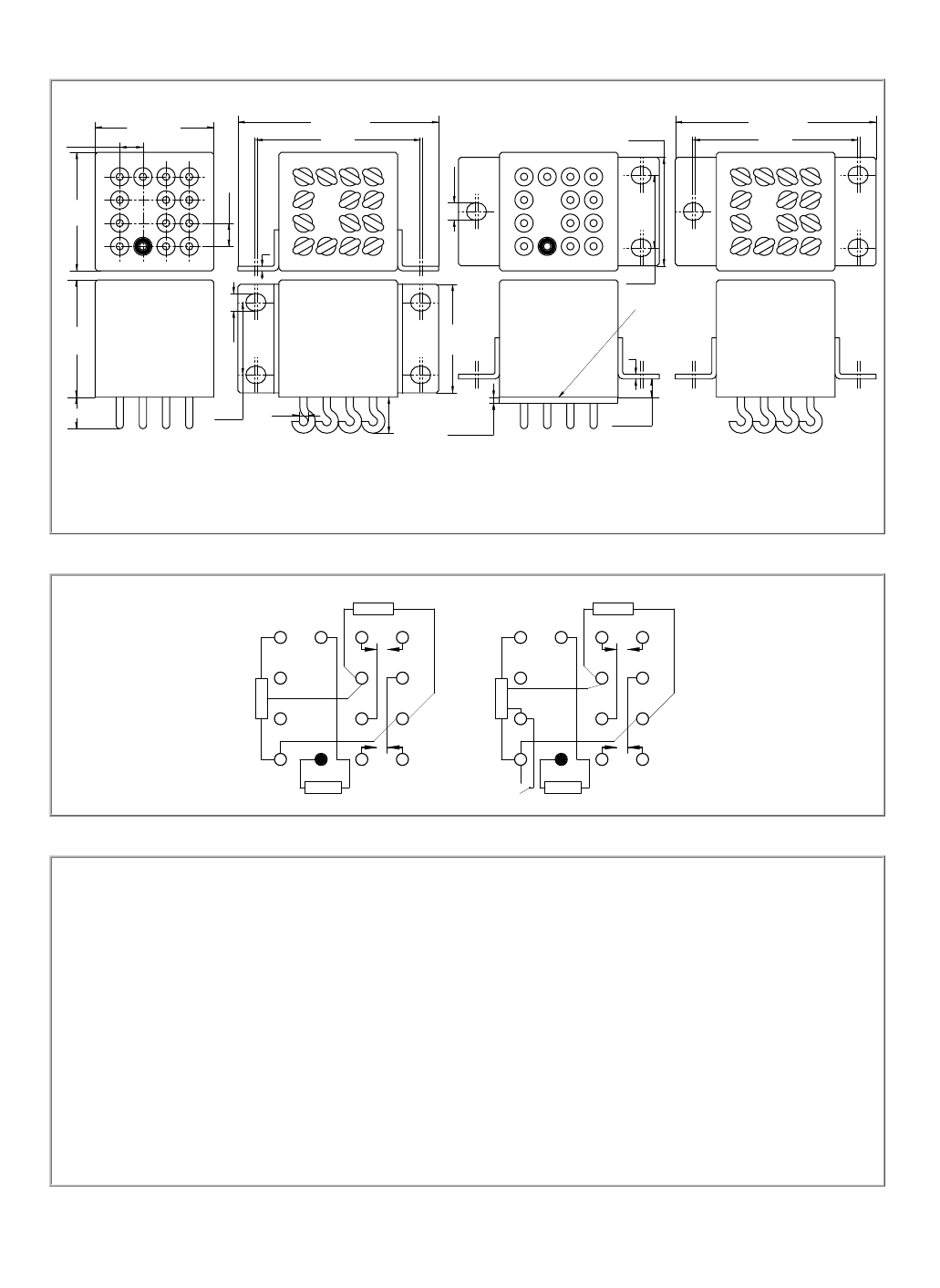

MOUNTING STYLES AND TERMINAL TYPES
44 MAX
35.5
36.7
3.8
44 MAX
35.5
36.7
T402
5.08
26 MAX
23.8
MAX
26
MAX
5.08
1
15.9
SILICON
GASKET
SHORE
A 15-30
1
3.8
25.7
MAX
A
B
23.8
MAX
C
D
6.9
±0.2
15.9
Ø2
7.9
MAX
1.3
±0.1
4
±0.15
TIN PLATED PINS
SOLDER HOOKS
GOLD PLATED PINS
SOLDER HOOKS
Dimensions in mm
Tolerances unless otherwise specified ±0.25 mm
SCHEMATIC DIAGRAM/TERMINAL LAYOUT
LX
1
-
-
C
X2
2
3
D
1
-
-
C
+
B
X2
2
LX
3
D
TIME DELAY ON OPERATE
OR ON RELEASE
+
B
TIME DELAY ON RELEASE WITH
POSITIVE CONTROL VOLTAGE
TD
RX : EXTERNAL RESISTOR
LX : EXTERNAL LOAD
+
A
X1
RX
TD
+
A
X1
RX
TIMING RANGE
ADJUSTABLE
Code 1001:
Code 1002:
Code 1003:
Code 1004:
(For operation code B, F and W)
0.1 to 1 second
Rx = (T / to -1) x 100kohm
1 to 10 seconds
10 to 100 seconds
100 to 1000 seconds
where Rx in kohms T: desired time in seconds,
to: time measured with Rx = 0.
Example to determine Rx value for a T time of 5 seconds:
Choose code 1002; measure time with
Rx = 0 (for example : to = 1 s); calculate Rx = (5/1 - 1) x 100000
Theoretical resistance: Rx = 400 kohms
FIXED
The timing code consists of 4 digits. To determine this code, convert the
value to milliseconds
value. Use the first 3 digits of this value and add a fourth digit to indicate the number of
zeros which must follow the three digits to show complete milliseconds value.
Examples: 250 ms --> Code 2500
300 s --> Code 3003
Date of issue: 3/06
- 63 -
Page 3 of 4
GENERAL CHARACTERISTICS
Operating Voltage
Recycle Time
Dielectric strength at sea level
- all pins connected together and can
- between open contacts
Dielectric strength at altitude 25,000 m, all points
Initial insulation resistance at 500 Vdc
Sinusoidal vibration
Shock
Power loss protection
Undamaged against positive transients
Spike susceptibility
Self generated spikes
1000 V / 50 Hz
500 V / 50 Hz
350 V / 50 Hz
greater than or equal to 1000 M
Ω
20G / 10 to 2000 Hz
100G / 6 ms
0.5 ms max
+ 80 Vdc
± 600 Vdc
± 50 Vdc
18 to 32 Vdc (AIR norm 2021 E)
less than or equal to 50 ms
T402
NOTES
1. Relays with C mounting are compatible with socket families S 400, SF 400 ..
2. Isolation spacer pads for PCB mounting available on request.
3. For other mounting styles or terminal types, please contact the factory.
4. Codes L and K not available for adjustable timing.
Date of issue: 3/06
- 64 -
Page 4 of 4

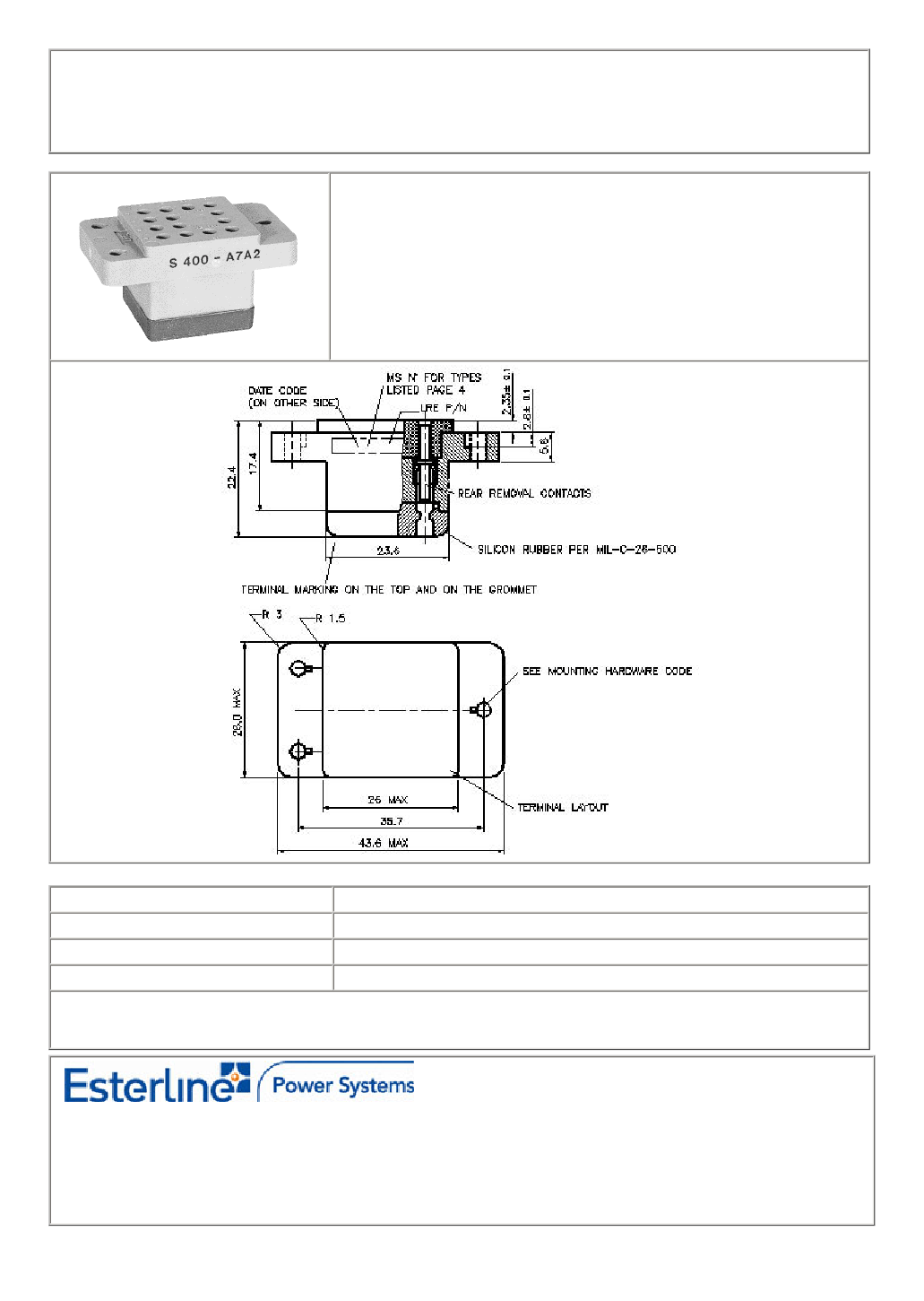

S400, S401, S402
ENGINEERING DATA SHEET
SOCKET FOR RELAYS
10 AMP
BASIC SOCKET SERIES DESIGNATION FOR:
Series M400 (DC Coil), M401 (AC Coil),
M402 (DC Coil), FLS402, T402, T412, T441, VS400, CS400
GENERAL CHARACTERISTICS
Crimp tool contact
Insertion and extraction tool
Weight
Temperature range
M 22520/1-01 with turret M 22520/1-02 or MS 3191-1.
NAS 1664-16.
35g max.
-70° C to +125° C.
This connection is designed to the standards and requirements of MIL-S-12883
Contacts and hardware to be delivered disassembled in a plastic bag.
Tolerances, unless otherwise specified, ±0.25mm.
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Featuring
LEACH
©
power and control solutions
www.esterline.com
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 3/06
- 24 -
Page 1 of 4
