HER3002PT: Description30 A, 100 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size83KB，2 Pages; ManufacturerHY Electronic; Websitehttp://www.hygroup.com.tw

Download Datasheet Parametric Compare View All

HER3002PT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HER3002PT	-	-	View	Buy Now

HER3002PT Overview

30 A, 100 V, SILICON, RECTIFIER DIODE

HER3002PT Parametric

Parameter Name	Attribute value
Maker	HY Electronic
package instruction	R-PSFM-T3
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

HER3001PT thru HER3008PT

HIGH EFFICIENCY GLASS PASSIVATED

RECTIFIERS

FEATURES

●

Low power lose;high efficiency

●

Low forward voltage drop

●

Low thermal resistance

●

High current capability

●

High speed switching

●

High surge capacity

●

High reliability

REVERSE VOLTAGE

- 50

1000Volts

FORWARD CURRENT

- 30.0

Amperes

TO-3P

.245(6.2)

.820(5.7)

.645(16.4)

.625(15.9)

.085(2.16)

.075(1.90)

.135(3.4)

.115(2.9)

.203(5.16)

.193(4.90)

.093(2.30)

.076(1.97)

.858(21.8)

.820(20.8)

MECHANICAL DATA

●

Case: TO-3P molded plastic

●

Epoxy: UL94V-0 rate flame retadant

●

Lead: MIL-STD-202E method 208C guaranteed

●

Mounting position :Any

●

Weight:5.1grams

●

polarity:As marked

.160(4.1)

.140(3.5)

.795(20.2)

.775(19.7)

.095(2.4)

.085(2.1)

.127(3.22)

.117(2.97)

.086(2.18)

.076(1.93)

.030(0.76)

.020(0.51)

.048(1.22)

.044(1.12)

.225(5.7)

.205(5.2)

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25℃ ambient temperature unless otherwise specified.

Single phase, half wave ,60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

CHARACTERISTICS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectified Current

Peak Forward Surge Current

8.3ms Single Half Sine-Wave

Super Imposed on Rated Load(JEDEC Method)

Typical Thermal Resistance

Typical Junction Capacitance (Note2)

Peak Forward Voltage at 15.0A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

=25℃

=100℃

=75

℃

SYMBOL

RRM

RMS

HER

3001PT 3002PT 3003PT 3004PT 3005PT 3006PT 3007PT 3008PT

100

200

300

400

600

800

1000

100

140

200

210

300

280

400

420

600

560

800

700

1000

UNIT

FSM

θJA

STG

1.0

400

1.0

125

1.3

150

-55 to + 150

1.7

℃/W

μA

℃

Maximum Reverse Recovery Time(Note1)

Operating and Storage Temperature Range

NOTES:1.Measured with I

=0.5A,I

=1A,I

=0.25A

2.Measured at 1.0 MHZ and applied reverse voltage of 4.0VDC.

~ 134 ~

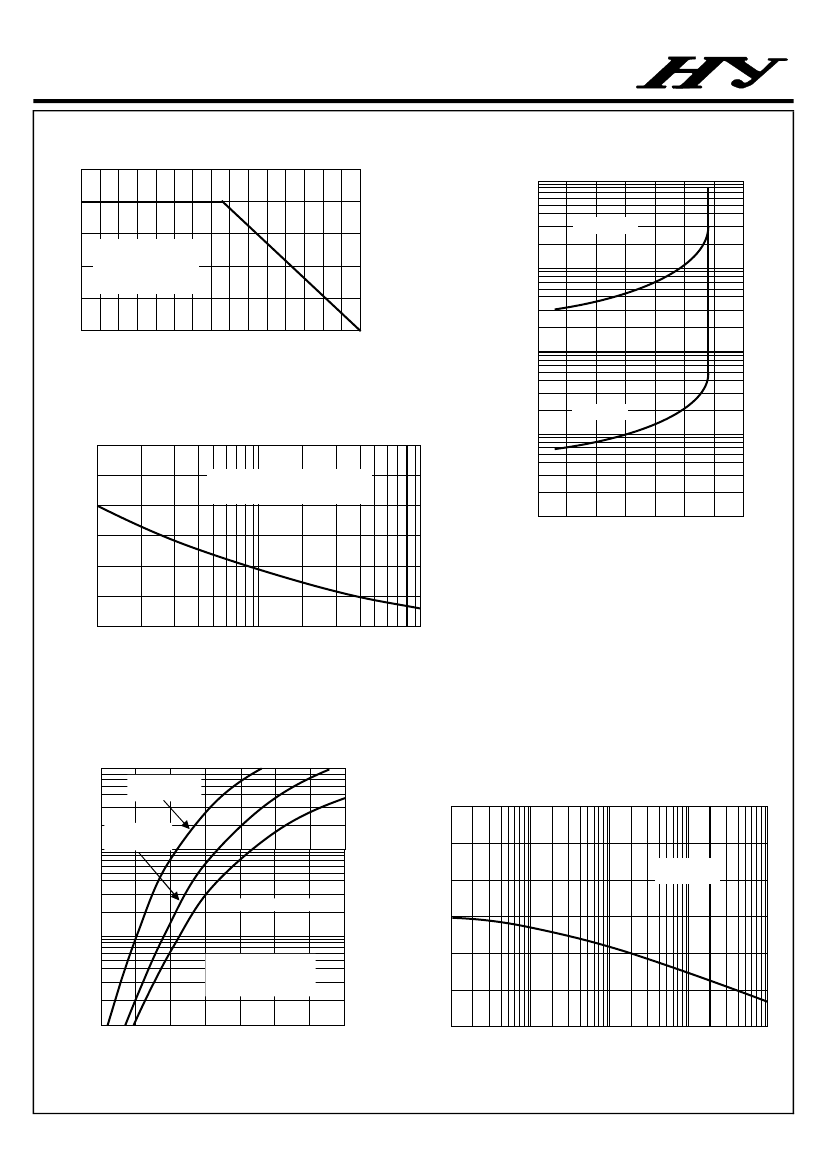

HER3002PT Related Products

	HER3002PT	HER3008PT	HER3001PT	HER3003PT	HER3007PT	HER3006PT	HER3005PT	HER3004PT
Description	30 A, 100 V, SILICON, RECTIFIER DIODE	30 A, 1000 V, SILICON, RECTIFIER DIODE, TO-247AD	30 A, 50 V, SILICON, RECTIFIER DIODE	30 A, 200 V, SILICON, RECTIFIER DIODE	30 A, 800 V, SILICON, RECTIFIER DIODE	30 A, 600 V, SILICON, RECTIFIER DIODE	15 A, 400 V, SILICON, RECTIFIER DIODE, TO-247AD	15 A, 300 V, SILICON, RECTIFIER DIODE, TO-247AD
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknow	unknow
Other features	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1.7 V	1 V	1 V	1.7 V	1.7 V	1.3 V	1.3 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V	1000 V	50 V	200 V	800 V	600 V	400 V	300 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	HY Electronic	HY Electronic	-	HY Electronic	HY Electronic	HY Electronic	HY Electronic	HY Electronic
