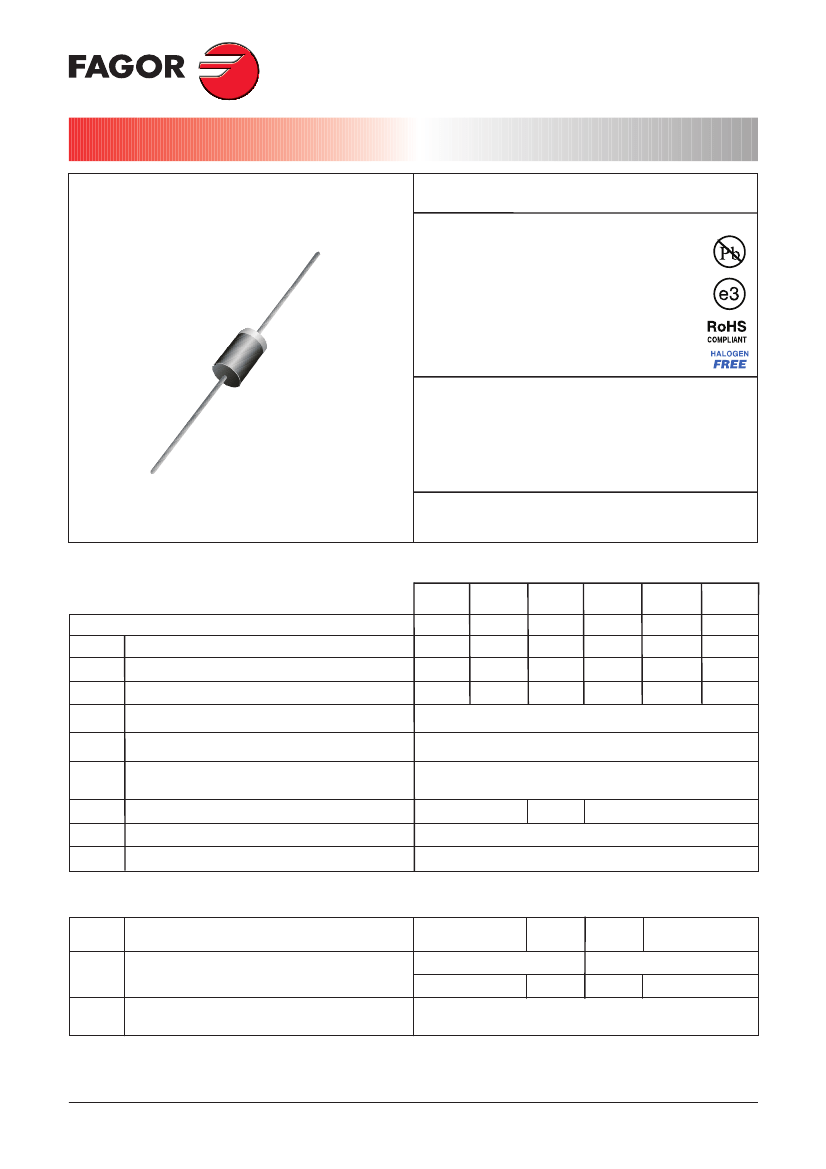

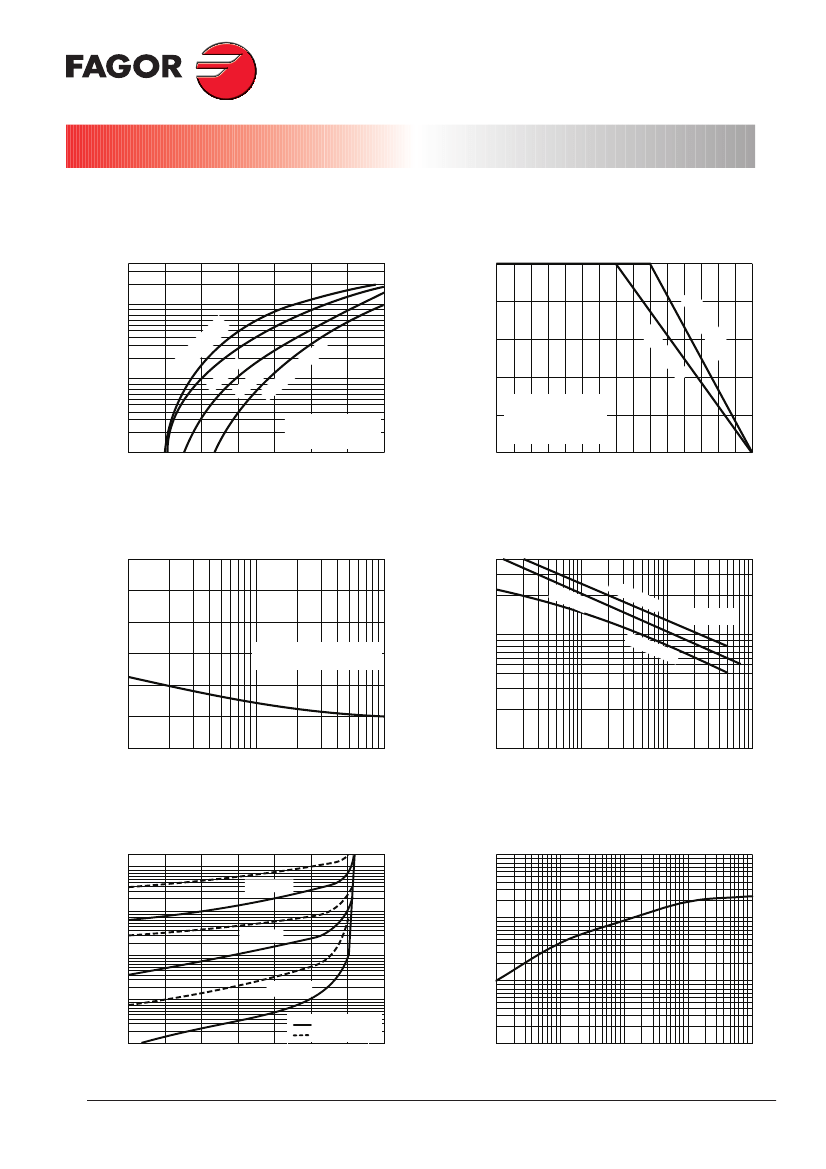

SB520 - SB5200
5.0 Amp. Schottky Barrier Rectifier
Voltage
20 V to 200 V
DO-201AD (DO-27)
Current
5.0 A
FEATURES
Low power losses, high efficiency
High surge current capability
High frequency operation
Guarding for overvoltage protection
Low forward voltage drop
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
MECHANICAL DATA
Case
:
DO-201AD (DO-27). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test
TYPICAL APPLICATIONS
Used in low voltage high frequency inverters, freewheeling,
dc-to-dc converters, and polarity protection applications.
Maximum Ratings and Electrical Characteristics at 25 ºC
Marking Code
V
RRM
V
RMS
V
DC
I
F(AV)
I
F (RMS)
I
FSM
C
j
T
j
T
stg
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Max. Average Forward Rectifier Current (See graphic)
Forward RMS Current
8.3 ms.Peak Forward Surge Current
(Jedec Method)
SB
520
SB520
20
14
20
SB
540
SB540
40
28
40
SB
560
SB560
60
42
60
SB
5100
SB5100
100
70
100
5.0 A
7.0 A
120 A
SB
5150
SB
5200
SB5150 SB5200
150
200
105
150
140
200
Typical Junction Capacitance
Operating Temperature Range
Storage Temperature Range
250 pF
210 pF
-55°C to +150°C
-55°C to +150°C
120 pF
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
th (j-a)
R
th (j-c)
Maximum Instantaneous Forward Voltage
(Note 1)
I
F
= 5.0 A
Maximum D.C. Reverse Current @ Tj = 25 ºC
at Rated DC Blocking Voltage
@ Tj = 125 ºC
(Note 3)
0.55 V
0.70 V
0.5 mA
0.85 V
1.05 V
0.1 mA
15 mA
10 mA
10 mA
5 mA
Typical Thermal Resistance
(Note 2)
40 °C/W
25 °C/W
Notes: 1. Pulse Test: 300µ Pulse Width, 1% Duty Cycle
2. Thermal Resistance from Junction to Case per diode
3. Pulse test: Pulse width
£
40ms
www.fagorelectronica.com
Document Name: sb5
Revision: 2
Version: Feb-14
Page Number: 1/4
SB520 - SB5200
5.0 Amp. Schottky Barrier Rectifier
Ordering information
PREFERRED P/N
SB560 AMP
SB560 TR
SB560 HF AMP
SB560 HF TR
PACKAGE CODE
AMP
TR
AMP
TR
DELIVERY MODE
AMMO BOX
13" diameter tape and reel
AMMO BOX
13" diameter tape and reel
BASE QUANTITY
800
1,200
800
1,200
UNIT WEIGHT (g)
1.100
1.100
1.100
1.100
Package Outline Dimensions: (mm)
DO-201AD (DO-27)
ø1.25
±0.05
8.35
±1.15
62.1
±0.3
www.fagorelectronica.com
Document Name: sb5
Revision: 2
ø5.05
±0.25
Version: Feb-14
Page Number: 2/4
SB520 - SB5200
5.0 Amp. Schottky Barrier Rectifier
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
TYPICAL FORWARD CHARACTERISTIC
MAXIMUM FORWARD CURRENT DERATING
CURVE
I
F
, instantaneous forward current (A)
I
F(AV)
, average forward Current (A)
40
10
54
0
52
0-
SB
5
SB
4
SB
56
0-S
B5
1
SB
0
56
SB
00
51
5
SB
2
B5
-S
0
15
00
3
2
1
0
0
20
40
60
80
SINGLE PHASE
HALF WAVE 60Hz
RESISTIVE OF
INDUCTIVE LOAD
9.5mm LEAD LENGTH
S
0-
52
20
0
SB
40
B5
T
j
= 25 °C
Pulse Width = 300µs
1% Duty Cycle
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
100
120
150
V
F
, forward voltage (V)
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
Lead temperature (°C)
I
FSM
, peak forward surge current (A)
TYPICAL JUNCTION CAPACITANCE
700
Cj, junction capacitance (pF)
300
250
200
150
100
50
0
1
10
100
8.3ms Single Half Sine Wave
JEDEC Method
300
100
80
60
40
20
10
0.1
SB
SB
560
520
-SB
540
T
j
= 25 °C
SB
5
100
-SB
520
0
0.4
1
4
10
40
100
Number of cycles at 60 Hz
V
R
, reverse voltage (V)
TYPICAL TRANSIENT THERMAL
CHARACTERISTIC
100
10
T
j
= 125 °C
Transient thermal impedance (°C/W)
TYPICAL REVERSE CHARACTERISTIC
I
R
, Reverse current (mA)
10
T
j
= 75 °C
1
T
j
= 25 °C
1
0.1
0
20
40
60
80
SB5100-SB5200
SB520-SB560
100
120
140
0.1
0.01
0.1
1
10
100
Percent of rated peak reverse voltage (%)
www.fagorelectronica.com
Document Name: sb5
Revision: 2
t, Pulse duration (sec)
Version: Feb-14
Page Number: 3/4
SB520 - SB5200
5.0 Amp. Schottky Barrier Rectifier
Revision History
Date
15-Jan-2012
7-Feb-2014
19-Feb-2014
Revision
0
1
2
Original Data Sheet
Modified: Package Outline dimensions & Tj, Tstg, IR, Rth(j-a)/Rth(j-c)
Modified: IF (RMS) included
Description of Changes
Disclaimer
All product, product specifications and data are subject to change without notice to improve reliability,
function or design or otherwise.
Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained
in any datasheet or in any other disclosure relating to any product.
Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular
purpose or the continuing production of any product. To the maximum extent permitted by applicable law,
Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all
liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied
warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge
of typical requirements that are often placed on Fagor products in generic applications. Such statements are not
binding statements about the suitability of products for a particular application. It is the customer's responsibility
to validate that a particular product with the properties described in the product specification is suitable for use in a
particular application. Parameters provided in datasheets and/or specifications may vary in different applications
and performance may vary over time. All operating parameters, including typical parameters, must be validated
for each customer application by the customer's technical experts. Product specifications do not expand or
otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed
therein.
Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or
life-sustaining applications or for any other application in which the failure of the Fagor product could result in
personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such
applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from
and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use
or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding
the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and
conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their
respective owners.
www.fagorelectronica.com
Document Name: sb5
Revision: 2
Version: Feb-14
Page Number: 4/4
