BZH21/B0220/D3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BZH21/B0220/D3

BZH21/B0220/D3: DescriptionMains Power Connector, 2A, 250VAC, Female and Male; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZH21/B0220/D3 Overview

Mains Power Connector, 2A, 250VAC, Female and Male

BZH21/B0220/D3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE AND MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	2A, 250VAC
Manufacturer's serial number	BZH
Installation type	PANEL
Options	GENERAL PURPOSE
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

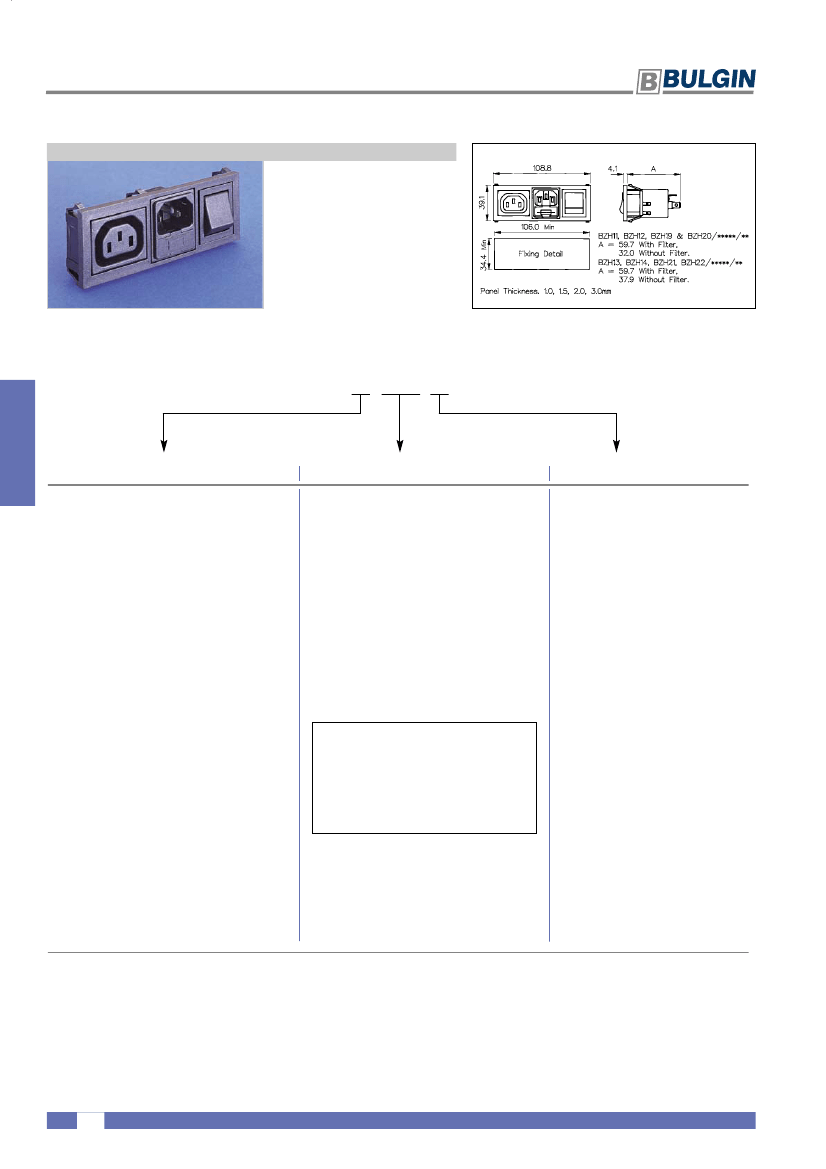

POLYSNAP

POWER INLET MODULES

C14 IEC Inlet/Sheet F IEC Outlet - Horizontal

HORIZONTAL MODULE ARRANGEMENT

Inlet/Outlet Combination

with 2.8mm or 6.3mm tags

Single or Twin Fused Inlet

Shuttered or Non-Shuttered

Outlet

Double Pole Switch Variations

BZH11/Z0000/10

Filtered Inlet Option

Options of I/O marked

switches

IEC CONNECTORS

How to Order

BZH xx / xxxxx / xx

Type of Inlet/Outlet

Single Fused C14 Power Inlet (cold condition) and

Sheet F Power Outlet, 2.8 or 6.3mm tabs:

= PF0011/63 + PX0695/63

= PF0011/28 + PX0695/28

Twin Fused C14 Power Inlet (cold condition)

and Sheet F Power Outlet , 2.8 or 6.3mm tabs:

= PF0033/63 + PX0695/63

= PF0033/28 + PX0695/28

Single Fused C14 Power Inlet (cold condition) and

Sheet F Shuttered Power Outlet, 2.8 or 6.3mm tabs:

= PF0011/63 + PX0783/63

= PF0011/28 + PX0783/28

Twin Fused C14 Power Inlet (cold condition) and

Sheet F Shuttered Power Outlet , 2.8 or 6.3mm tabs:

= PF0033/63 + PX0783/63

= PF0033/28 + PX0783/28

Filtered or Non Filtered Inlet

Z0000 = Non Filtered

Axxxx = Standard

Bxxxx = Medical

Cxxxx = High Performance Standard

Combination of Other Components

Neon Indicator:

= Red Neon Indicator

Double Pole Switch:

= D.P Switch

Double Pole Neon Switch:

= D.P Red Neon Switch

= D.P Green Neon Switch

Double Pole High Inrush Switch:

= D.P High Inrush Switch

For Filtered inlet use 6th to 9th characters from

filter ordering code see pages 115-118.

E.g. BZH11/A0620/10

Double Pole Switch Marked I/O:

= D.P Switch (I/O)

Double Pole Neon Switch Marked (I/O):

= D.P Red Neon Switch (I/O)

= D.P Green Neon Switch (I/O)

Double Pole High Inrush Switch Marked

(I/O):

= D.P High Inrush Switch (I/O)

= D.P High Inrush Green Neon Switch

(I/O)

Note: For technical details of individual components please see page 92

108

www.bulgin.co.uk
