K1525CAMCFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> K1525CAMCFREQ

K1525CAMCFREQ: DescriptionCMOS Output Clock Oscillator, 2MHz Min, 55MHz Max, DIP-14/4; CategoryPassive components oscillator; File Size315KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

K1525CAMCFREQ Overview

CMOS Output Clock Oscillator, 2MHz Min, 55MHz Max, DIP-14/4

K1525CAMCFREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	50%
linearity	10%
Manufacturer's serial number	K1525C
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	55 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	5 TTL, 15 pF
physical size	20.828mm x 13.208mm x 4.52mm
longest rise time	4 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

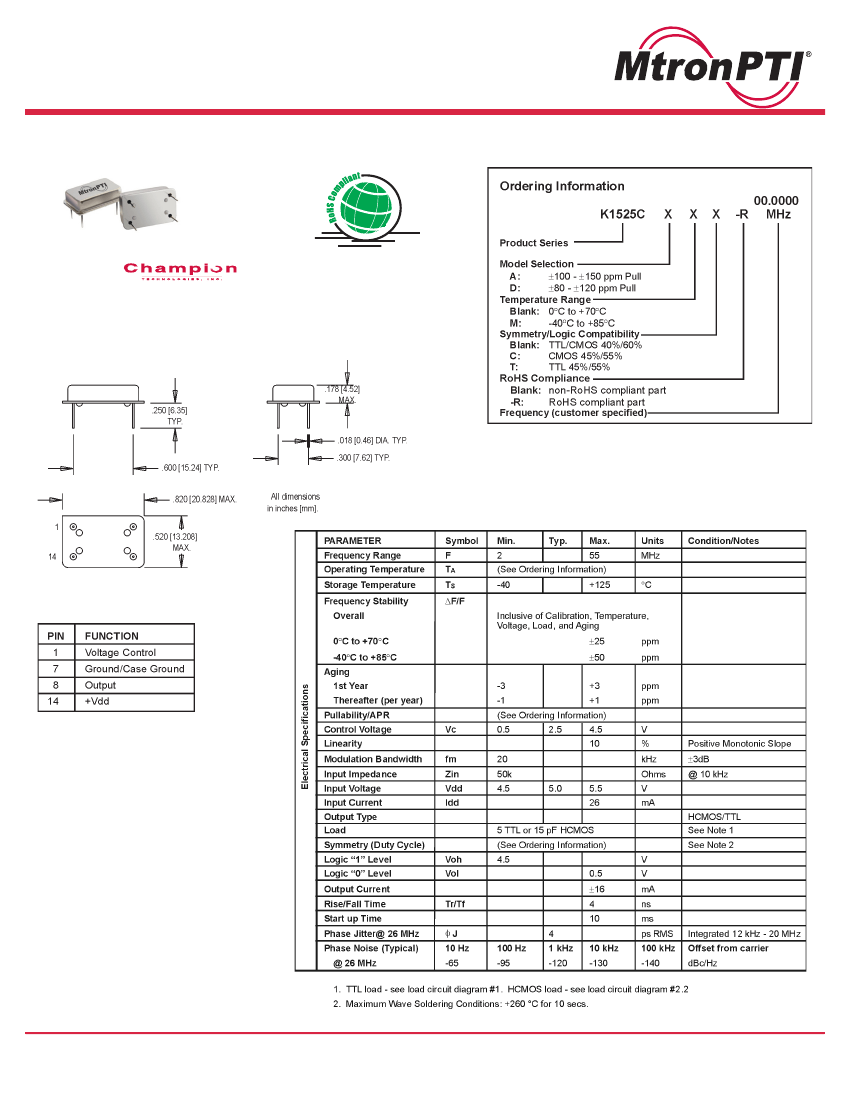

K1525C Series

14 pin DIP, 5.0 Volt, CMOS/TTL, VCXO

THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.

PLEASE REFER TO THE MV PRODUCT SERIES.

•

Former

Product

Phase-Locked Loops (PLL’s), Clock Recovery,

Reference Signal Tracking, Synthesizers,

Frequency Modulation/Demodulation

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 1-15-08
