EMPY3361X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> EMPY3361X

EMPY3361X: DescriptionSingle Color LED, Yellow Green, Clear Pale Yellow, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size251KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

EMPY3361X Overview

Single Color LED, Yellow Green, Clear Pale Yellow, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

EMPY3361X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
color	YELLOW GREEN
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
Lens type	CLEAR PALE YELLOW
Nominal luminous intensity	30.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.5 mm
method of packing	BULK
peak wavelength	570 nm
Maximum reverse voltage	4 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.5 mm
perspective	94 deg
Base Number Matches	1

Preview

Download Datasheet

View All

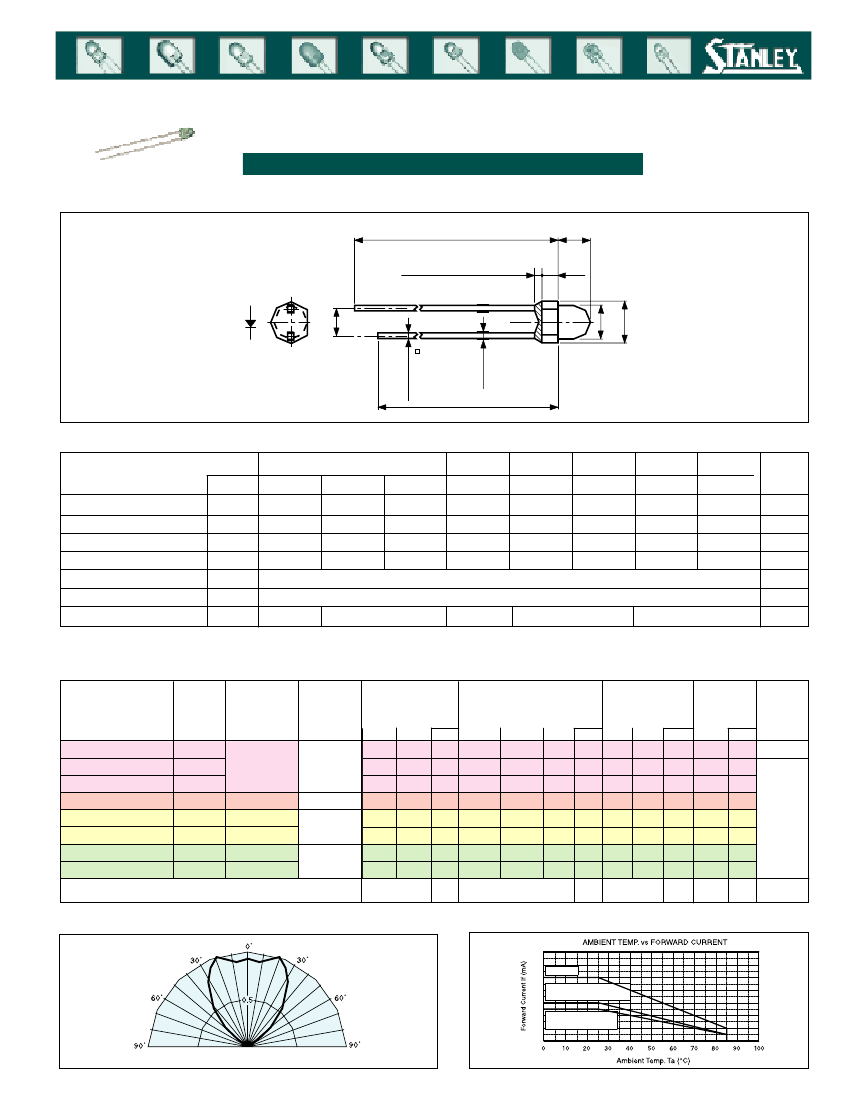

SINGLE COLOR LED

3mm Round Shape

3361X Series

Outline Dimensions

30MIN.

Meniscus 1MAX.

3 + 0.2

(1.5)

3.8 + 0.2

3.1 +0.1

/ _

(2.5)

0.7MAX.

0.5 + 0.1

28MIN.

Unit: mm

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Red

Orange

Yellow

Yellow Green

Green

Pure Green

(Ta=25°C)

EBR/BR

MPR

EMVR/MVR EMAA/MAA EMAY/MAY EMPY/MPY EMPG/MPG EMBG/MBG

Symbol

Units

°C

mA/°C

Topr

Tstg

100

300

-30 to +85

-30 to +100

0.33

0.40

0.67

0.40

0.33

* Ta=25°C, I

applies for the pulse width

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Lens

Color

Luminous

Intensity

MIN.

TYP

*The viewing angle is an average and will vary by color

(Ta=25°C)

Wavelength

Peak

TYP

Spectral Line

Dominant Half Width

TYP

Forward

Voltage

TYP

MAX.

Reverse Viewing

Current

Angle

MAX.

1/2)

EBR/BR3361X

GaAIAs

Red

MPR3361X

GaP

EMVR/MVR3361X GaAsP

Orange

EMAA/MAA3361X GaAsP

Yellow

EMAY/MAY3361X GaAsP

EMPY/MPY3361X

GaP

Yellow Green

Green

EMPG/MPG3361X

GaP

EMBG/MBG3361X

GaP

Pure Green

Units

Clear

Pastel

Red

Clear Pastel

Orange

Clear

Pastel

Yellow

Clear

Pastel

Green

12/6

0.8

8/4

12/6

10/5

20/10

12/6

6/3

18/12

1.6

12/8

18/12

15/10

30/20

18/12

9/6

660

700

630

605

580

570

560

555

647

635

624

606

590

572

567

558

100

1.7

2.1

2.0

2.2

2.1

2.0

2.8

100

µA

100°

90°

mcd

Deg.

Spatial Distribution (x)

Operation Current Derating Chart

EBR, BR

MPR, EMVR, MVR,

EMAY, MAY, EMPY, MPY

EMAA, MAA, EMPG,

MPG, EMBG, MBG

*Spatial distribution is viewed as a typical illustration and will vary by color

EMPY3361X Related Products

	EMPY3361X	EMAY3361X	MAA3361X	MAY3361X	MBG3361X
Description	Single Color LED, Yellow Green, Clear Pale Yellow, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Clear Pale Yellow, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Orange, Clear Pale Orange, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Clear Pale Yellow, T-1, 3mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, Clear Pale Green, T-1, 3mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color	YELLOW GREEN	YELLOW	ORANGE	YELLOW	GREEN
color@wavelength	Yellow	Yellow	Amber	Yellow	Green
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.025 A	0.03 A	0.025 A
Maximum forward voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
Lens type	CLEAR PALE YELLOW	CLEAR PALE YELLOW	CLEAR PALE ORANGE	CLEAR PALE YELLOW	CLEAR PALE GREEN
Nominal luminous intensity	30.0 mcd	15.0 mcd	12.0 mcd	10.0 mcd	6.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	570 nm	580 nm	605 nm	580 nm	555 nm
Maximum reverse voltage	4 V	4 V	4 V	4 V	4 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	94 deg	92 deg	97 deg	92 deg	78 deg
Maker	-	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
