SMP3308LP-682M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SMP3308LP-682M

SMP3308LP-682M: DescriptionGeneral Purpose Inductor, 68uH, 20%, 1 Element, SMD,; CategoryPassive components inductor; File Size394KB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

SMP3308LP-682M Overview

General Purpose Inductor, 68uH, 20%, 1 Element, SMD,

SMP3308LP-682M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.46 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	SMP3308LP
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.87 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

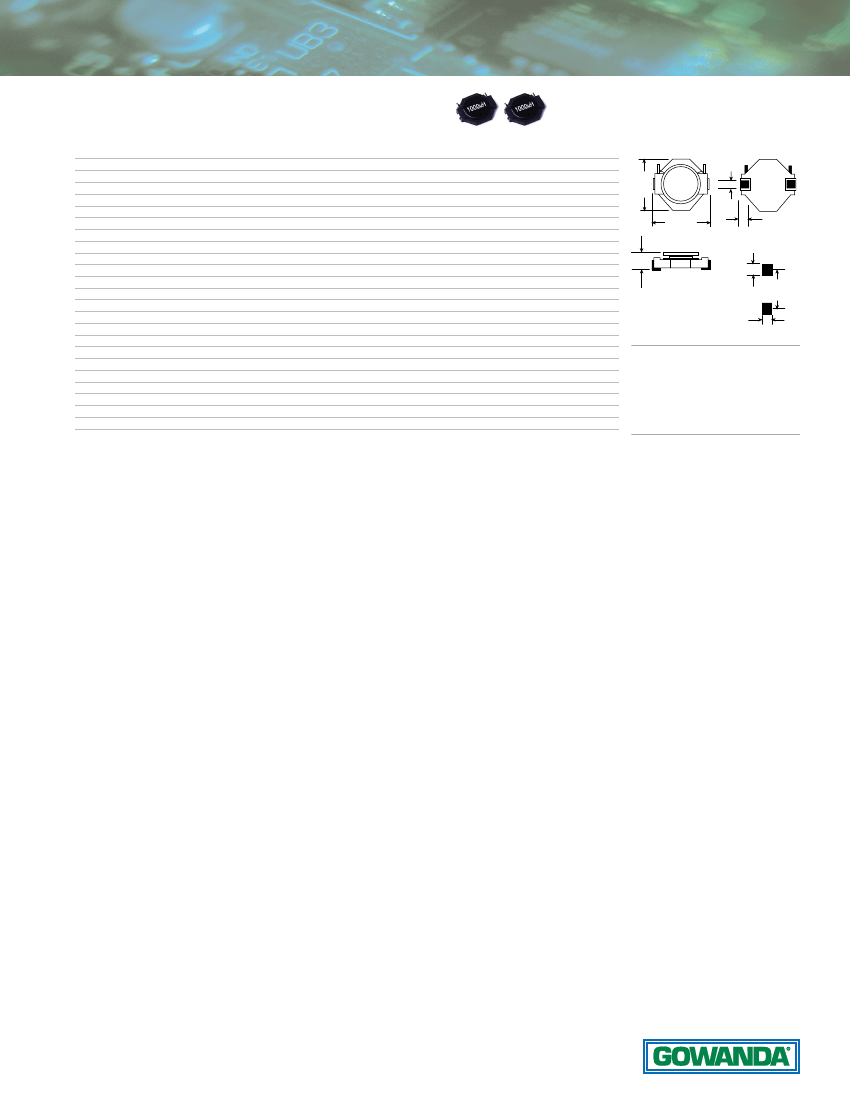

POWER INDUCTORS - SURFACE MOUNT

SMP3308LP

PART

NUMBER

L µH ±20%

@ 100 kHz

Low Profile Power Inductors

DCR

MAX

SATURATION CURRENT*

DC AMPS

CURRENT RATING**

DC AMPS

TOP VIEW

SMP3308LP-101M

SMP3308LP-151M

SMP3308LP-221M

SMP3308LP-331M

SMP3308LP-471M

SMP3308LP-681M

SMP3308LP-102M

SMP3308LP-152M

SMP3308LP-222M

SMP3308LP-332M

SMP3308LP-472M

SMP3308LP-682M

SMP3308LP-103M

SMP3308LP-153M

SMP3308LP-223M

SMP3308LP-333M

SMP3308LP-473M

SMP3308LP-683M

SMP3308LP-104M

SMP3308LP-224M

SMP3308LP-334M

SMP3308LP-474M

SMP3308LP-564M

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1000

2200

3300

4700

5600

.023

.032

.041

.047

.056

.072

.092

.114

.148

.206

.320

.460

.641

1.05

1.62

2.28

2.76

4.36

6.62

12.5

19.3

32.0

38.0

9.0

7.0

6.0

5.0

4.3

3.8

3.0

2.5

2.0

1.7

1.4

1.2

.940

.770

.640

.530

.430

.360

.300

.185

.155

.140

.125

3.9

3.3

2.9

2.7

2.5

2.2

2.0

1.7

1.5

1.3

1.0

.87

.74

.58

.46

.39

.35

.28

.23

.17

.13

.10

.096

BOTTOM VIEW

.070 (1.78)

REF

.420

(10.67)

MAX

470µH

.530 MAX

(13.46)

SIDE VIEW

.100 (2.54)

MAX

.030 MIN

(.76)

RECOMMENDED

FOOT PRINT

(3.05).120

.470

(11.94)

CENTERS

in. (mm)

.120

(3.05)

NOTES:

• Operating temperature -55°C to +125°C

*Saturation current is the approximate value

that will reduce the initial inductance by 10%

**Rated current is based on a 40°C

temperature rise at an ambient temperature

of 85°C.

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter inches:

700

16 mm

24 mm

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com
