SMP3308LP-224MLF: DescriptionGeneral Purpose Inductor, 2200uH, 20%, 1 Element, SMD, 5342, CHIP, 5342, ROHS COMPLIANT; CategoryPassive components inductor; File Size396KB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

SMP3308LP-224MLF Overview

General Purpose Inductor, 2200uH, 20%, 1 Element, SMD, 5342, CHIP, 5342, ROHS COMPLIANT

SMP3308LP-224MLF Parametric

Parameter Name	Attribute value
package instruction	5342
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5342
DC Resistance	12.5 Ω
Nominal inductance(L)	2200 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SMP3308LPLF
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.17 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

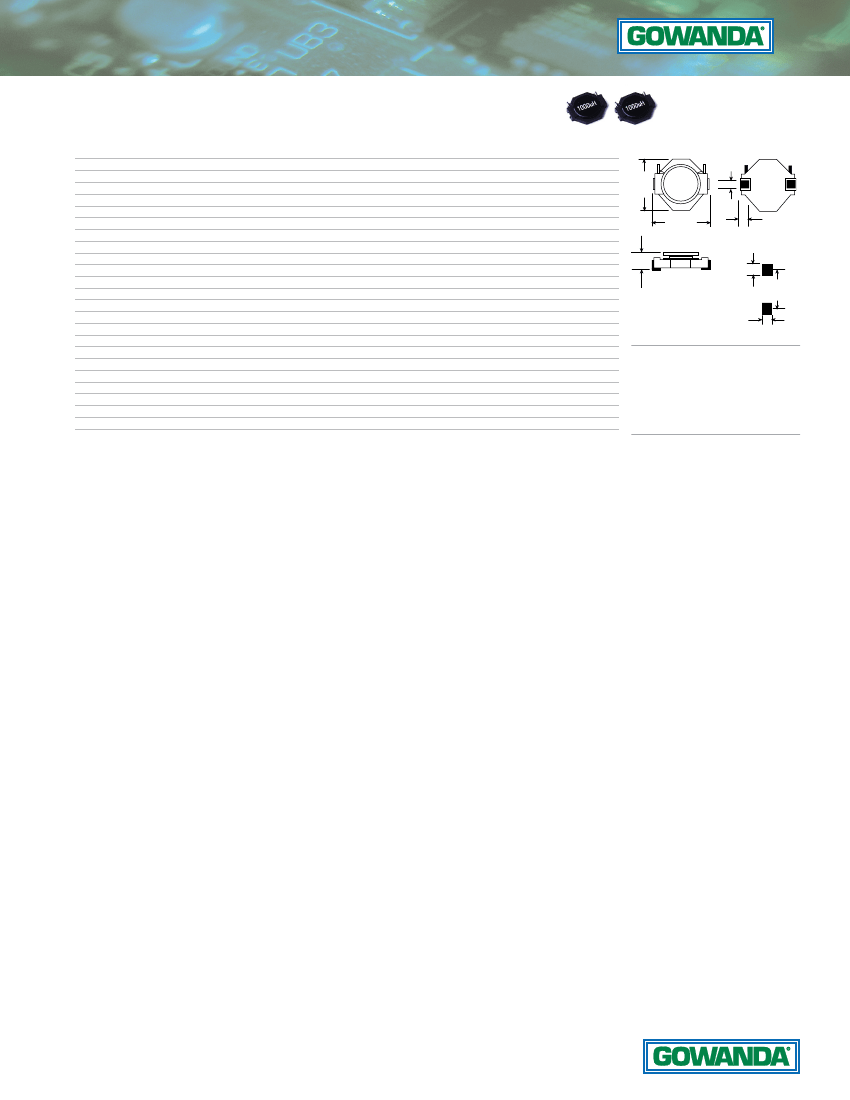

POWER INDUCTORS - SURFACE MOUNT

SMP3308LPLF

PART

NUMBER

L µH ±20%

@ 100 kHz

RoHS Low Profile Power Inductors

DCR

MAX

SATURATION CURRENT*

DC AMPS

CURRENT RATING**

DC AMPS

TOP VIEW

SMP3308LP-101MLF

SMP3308LP-151MLF

SMP3308LP-221MLF

SMP3308LP-331MLF

SMP3308LP-471MLF

SMP3308LP-681MLF

SMP3308LP-102MLF

SMP3308LP-152MLF

SMP3308LP-222MLF

SMP3308LP-332MLF

SMP3308LP-472MLF

SMP3308LP-682MLF

SMP3308LP-103MLF

SMP3308LP-153MLF

SMP3308LP-223MLF

SMP3308LP-333MLF

SMP3308LP-473MLF

SMP3308LP-683MLF

SMP3308LP-104MLF

SMP3308LP-224MLF

SMP3308LP-334MLF

SMP3308LP-474MLF

SMP3308LP-564MLF

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

470

680

1000

2200

3300

4700

5600

.023

.032

.041

.047

.056

.072

.092

.114

.148

.206

.320

.460

.641

1.05

1.62

2.28

2.76

4.36

6.62

12.5

19.3

32.0

38.0

9.0

7.0

6.0

5.0

4.3

3.8

3.0

2.5

2.0

1.7

1.4

1.2

.940

.770

.640

.530

.430

.360

.300

.185

.155

.140

.125

3.9

3.3

2.9

2.7

2.5

2.2

2.0

1.7

1.5

1.3

1.0

.87

.74

.58

.46

.39

.35

.28

.23

.17

.13

.10

.096

BOTTOM VIEW

.070 (1.78)

REF

.420

(10.67)

MAX

470µH

.530 MAX

(13.46)

SIDE VIEW

.100 (2.54)

MAX

.030 MIN

(.76)

RECOMMENDED

FOOT PRINT

(3.05).120

.470

(11.94)

CENTERS

in. (mm)

.120

(3.05)

NOTES:

• Operating temperature -55°C to +125°C

*Saturation current is the approximate value

that will reduce the initial inductance by 10%

**Rated current is based on a 40°C

temperature rise at an ambient temperature

of 85°C.

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter inches:

700

16 mm

24 mm

13

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com
