BUK854-800A,127 datasheet, PDF

BUK854-800A,127: Description12A, 800V, N-CHANNEL IGBT, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size227KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

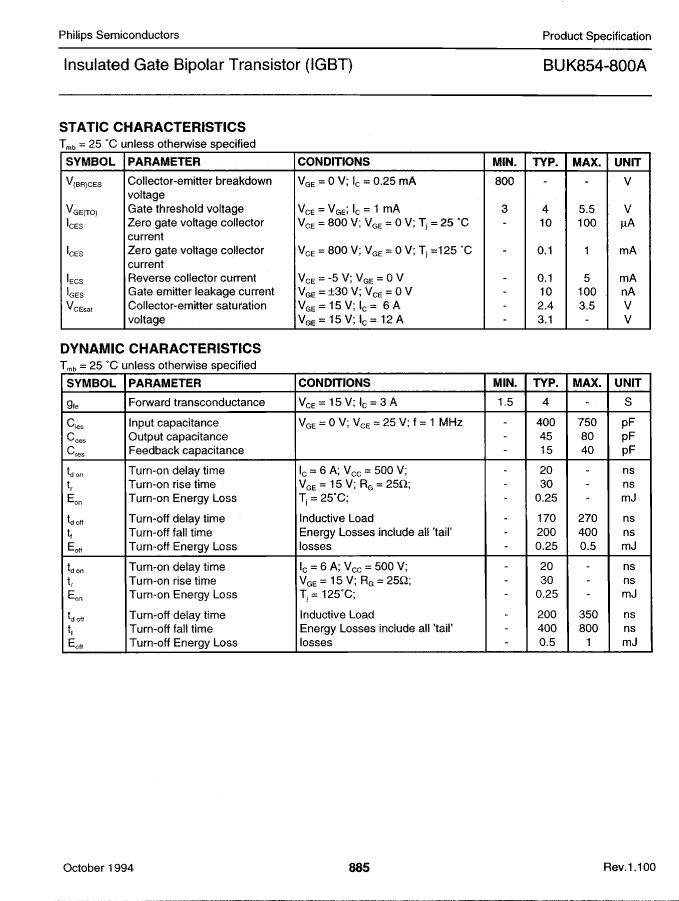

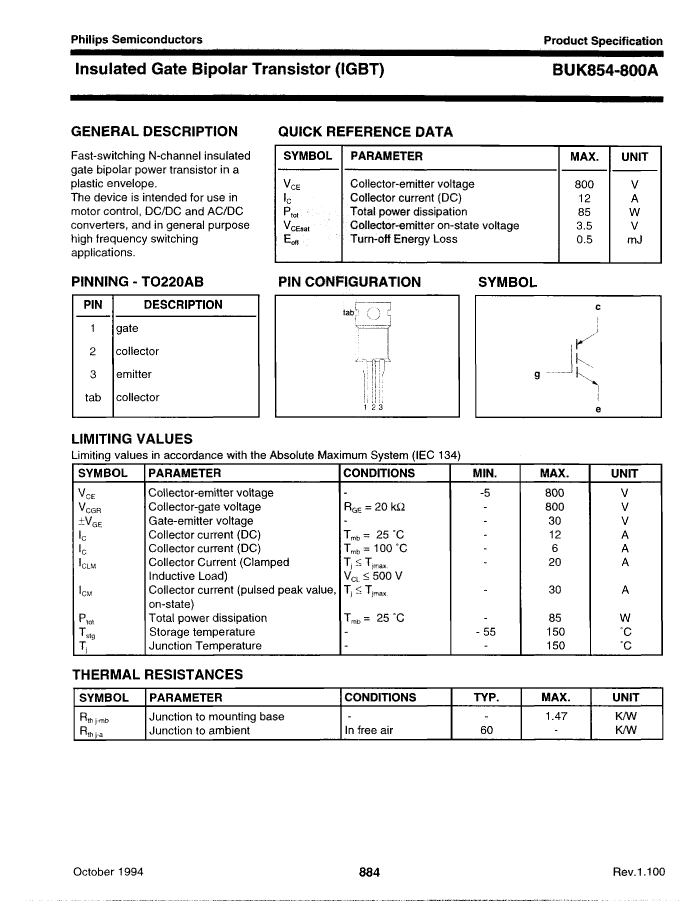

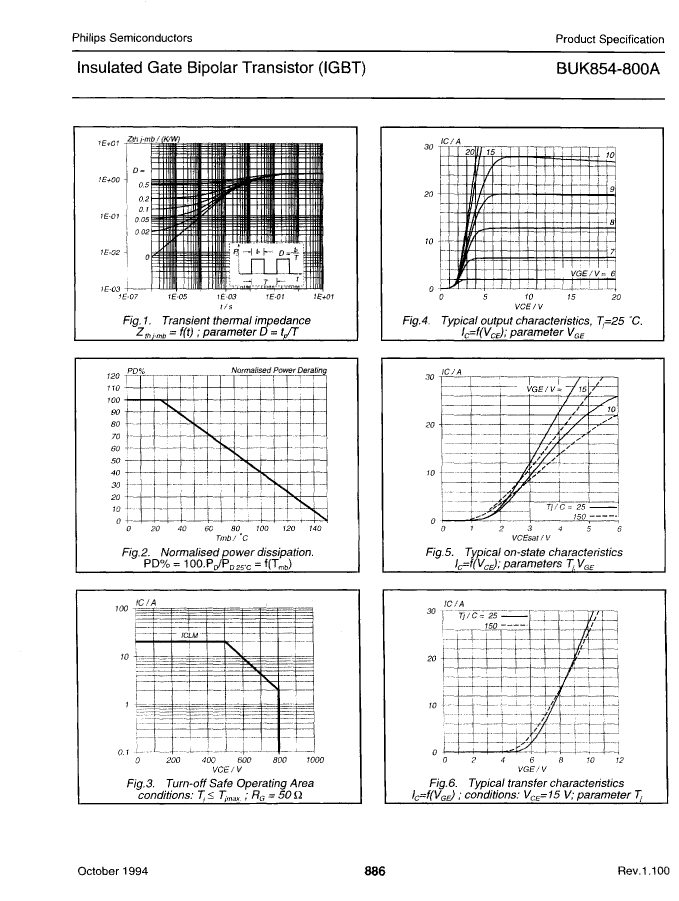

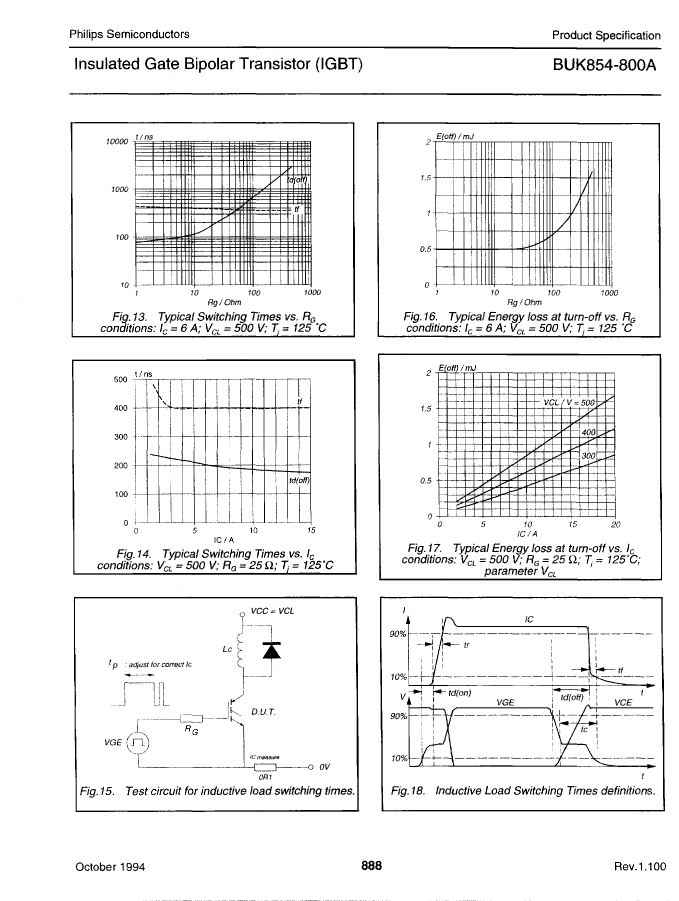

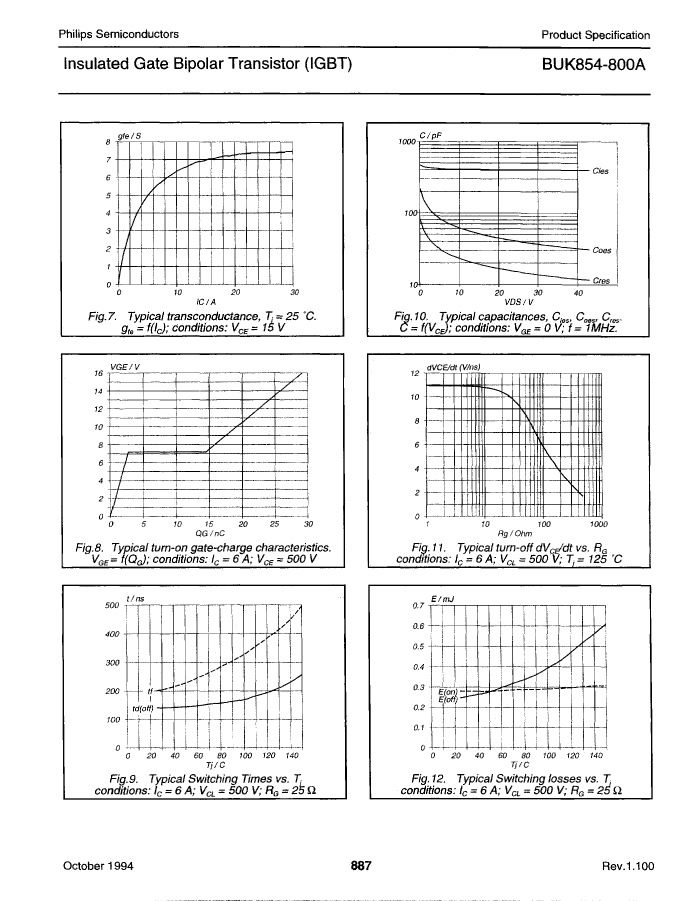

BUK854-800A,127 Overview

12A, 800V, N-CHANNEL IGBT, TO-220AB

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Other features	FAST SWITCHING
Shell connection	COLLECTOR
Maximum collector current (IC)	12 A
Collector-emitter maximum voltage	800 V
Configuration	SINGLE
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	600 ns
Nominal on time (ton)	50 ns
Base Number Matches	1

	BUK854-800A,127	BUK854-800A127	BUK854-800A
Description	12A, 800V, N-CHANNEL IGBT, TO-220AB	TRANSISTOR 12 A, 800 V, N-CHANNEL IGBT, TO-220AB, Insulated Gate BIP Transistor	TRANSISTOR 12 A, 800 V, N-CHANNEL IGBT, TO-220AB, PLASTIC PACKAGE-3, Insulated Gate BIP Transistor
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	12 A	12 A	12 A
Collector-emitter maximum voltage	800 V	800 V	800 V
Configuration	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	MOTOR CONTROL	MOTOR CONTROL	MOTOR CONTROL
Transistor component materials	SILICON	SILICON	SILICON
Nominal off time (toff)	600 ns	600 ns	200 ns
Nominal on time (ton)	50 ns	50 ns	50 ns
Other features	FAST SWITCHING	FAST SWITCHING	-
Base Number Matches	1	1	-
