AIF25R48N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AIF25R48N

AIF25R48N: Description1-OUTPUT 700 W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size103KB，2 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

AIF25R48N Overview

1-OUTPUT 700 W DC-DC REG PWR SUPPLY MODULE

AIF25R48N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vertiv
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XXMA-P23
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	23
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Maximum output voltage	30.8 V
Minimum output voltage	22.4 V
Nominal output voltage	28 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	700 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

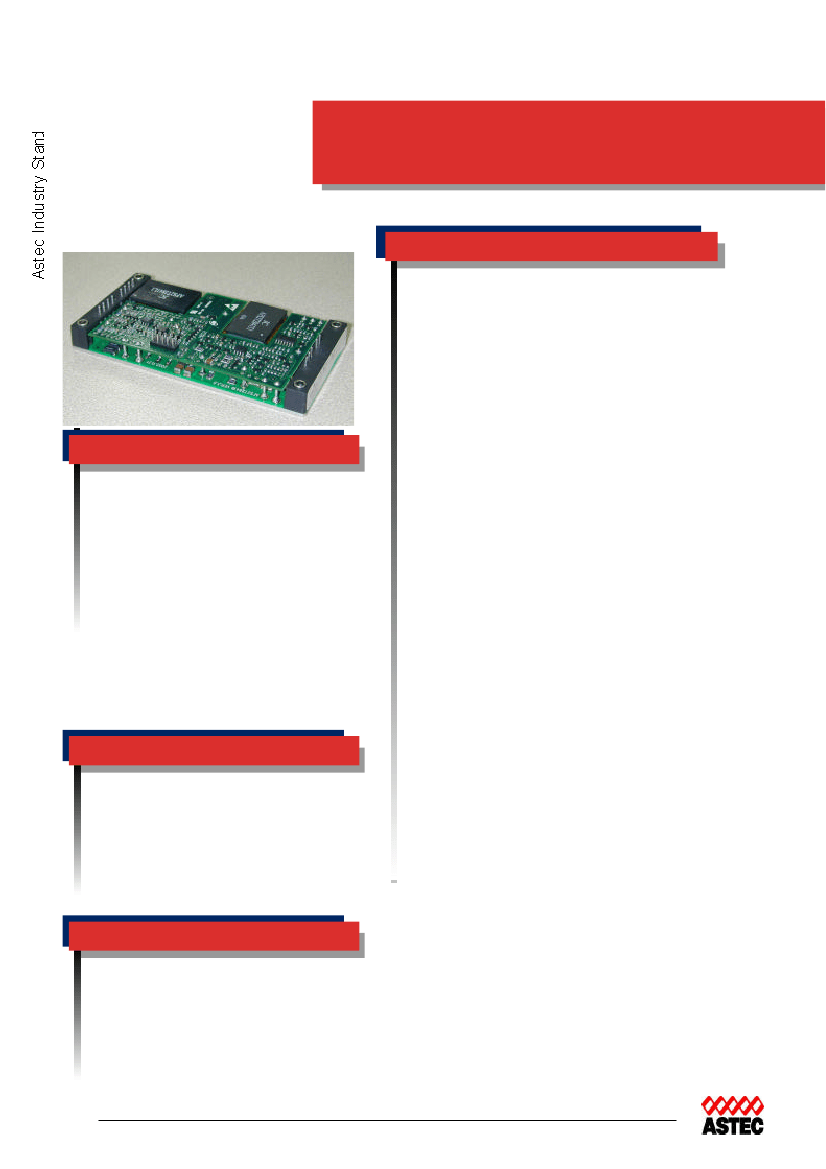

700 Watts

AIF25R48

Total Power:

Input Voltages:

No. of Outputs:

700 Watts (28V@25Amps)

48V

Single

Electrical Specs

Input

Input range

Input Surge

Efficiency

36 - 75 VDC

100V / 100ms

89%@28V

Output

Load Regulation

Line Regulation

Noise / Ripple

Remote sense

Output voltage

adjust range

Transient Response

0.5% typical down to min load

0.2% typical

200mV typical

Up to 0.5V

+10%/-20%

3% max for deviation with

25% to 50% full load

500 µS (max) recovery

5% typical

140% Vo (max)

140% Io (max)

Special Features

• 700W Continuous power at 100°C baseplate

temperature

• High efficiency - 89% @ 28V

• Low output ripple and noise

• Industry standard pin out

• Positive and Negative enable function

• Excellent transient response

• OVP, LVP, OCP,OTP, S/C protection

• Paralleable with accurate current sharing

• Basic Insulation

Current Share Accuracy

Overvoltage Protection

Current Limit

Control

Voltage Adjust

Enable

80 to 110% Vo

TTL compatible

(positive & negative enable

options)

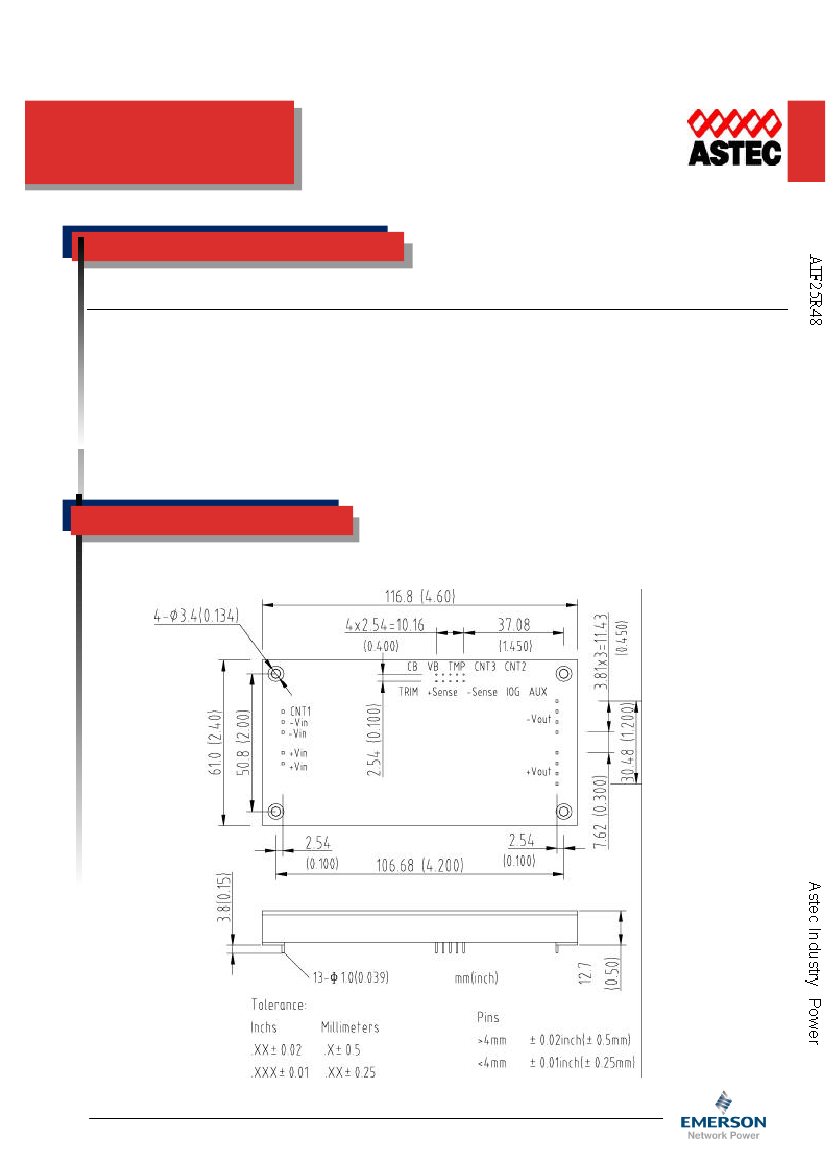

Notes

Nominal values apply with sense pins connected and other

control pin unconnected.

Environmental

Operating temperature

-20°C to +100°C (Case temperature)

Storage temperature: -55°C to +125°C

Overtemperature protection: 120°C max

MTBF: TBD hours

Specifications subject to change without notice.

Safety

CSA

TUV

EN60950 Licensed

CE Mark

60950 Recognized

North America (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
