BTCPower
3AW Series
Features
•
•
•
•
•
•
•
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion
3W DC-DC Converters
3W Isolated Output
24-Pin DIP Package
Efficiency to 80%
4:1 Input Range
Regulated Outputs
Pi Input Filter
Continuous Short Circuit Protection
Model
Number
3AW-01
3AW-02
3AW-03
3AW-04
3AW-05
3AW-06
3AW-07
3AW-11
3AW-12
3AW-13
3AW-14
3AW-15
3AW-16
3AW-17
Input
Voltage
Output
Voltage
5 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
Output
Current
600 mA
250 mA
200 mA
±300 mA
±125 mA
±100 mA
600 mA
600 mA
250 mA
200 mA
±300 mA
±125 mA
±100 mA
600mA
Input Current
No Load
Full Load
15
15
15
25
25
25
15
mA
mA
mA
mA
mA
mA
mA
174 mA
165 mA
165 mA
179 mA
174 mA
174 mA
117 mA
87
78
78
88
87
87
58
mA
mA
mA
mA
mA
mA
mA
% Efficiency
Case
9-36VDC
72
76
76
70
72
72
70
72
80
80
71
72
72
70
A
18-72VDC
7.5 mA
7.5 mA
7.5 mA
12 mA
12 mA
12 mA
7.5 mA
A
Note: Nominal Input Voltage 24 or 48VDC
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com •Email: sales@btcpower.com
DS LP 3AW Rev2 16-1-04
3AW Series
Specifications
Input Specifications:
3W DC-DC Converters
BTCPower
TM
Range…………….…………….24V…………...………………..9-36V
48V……………………………18-72V
Input Filter………………………………………………………..Pi Type
Output Specifications:
Voltage Accuracy…………….. ………………………….+/- 2.0 % max.
Voltage Balance ( Dual )………………………………...+/- 1.0 % max.
Ripple & Noise, 20 MHz BW
Single & ±5V...………………………………...………100 mV p-p max.
Dual…………………..………………………… 1% p-p max.
Temperature Coeffcient………………………… +/- 0.05 % / ºC max.
Short Circuit Protection………………………………..……Continuous
Line Regulation ¹ Single / Dual Output………….……..+/- 0.5 % max.
Load Regulation ² Single ……………...…………….….+/- 0.5 % max.
Dual³………………..…..…………+/- 1.0 % max.
General Specifications
:
Efficiency……………………………………………..……...…see table
Isolation Resistance…………………………………………..100Mohm
Switching Frequency……………………………...….…..100 KHz, min.
Operating Temperature Range…………………………-25ºC ~ +71ºC
Case Temperature………………………………………….100 ºC max.
Cooling……………………………………………....Free air convection
Storage Temperature Range……………………..…..-40 ºC ~ +100ºC
Isolation Voltage………………………….………………..500VDC min.
Suffix “H” Models
4
………………….………………...……3K VDC min.
Dimensions………….……1.25” x 0.8” x 0.4 “(31.8 x 20.3 x 10.2 mm)
Case Material……………….…………..Non-Conductive Black Plastic
Suffix “M” Models(Material)
5
…………..…..Black Coated Copper with
Non-conducted base

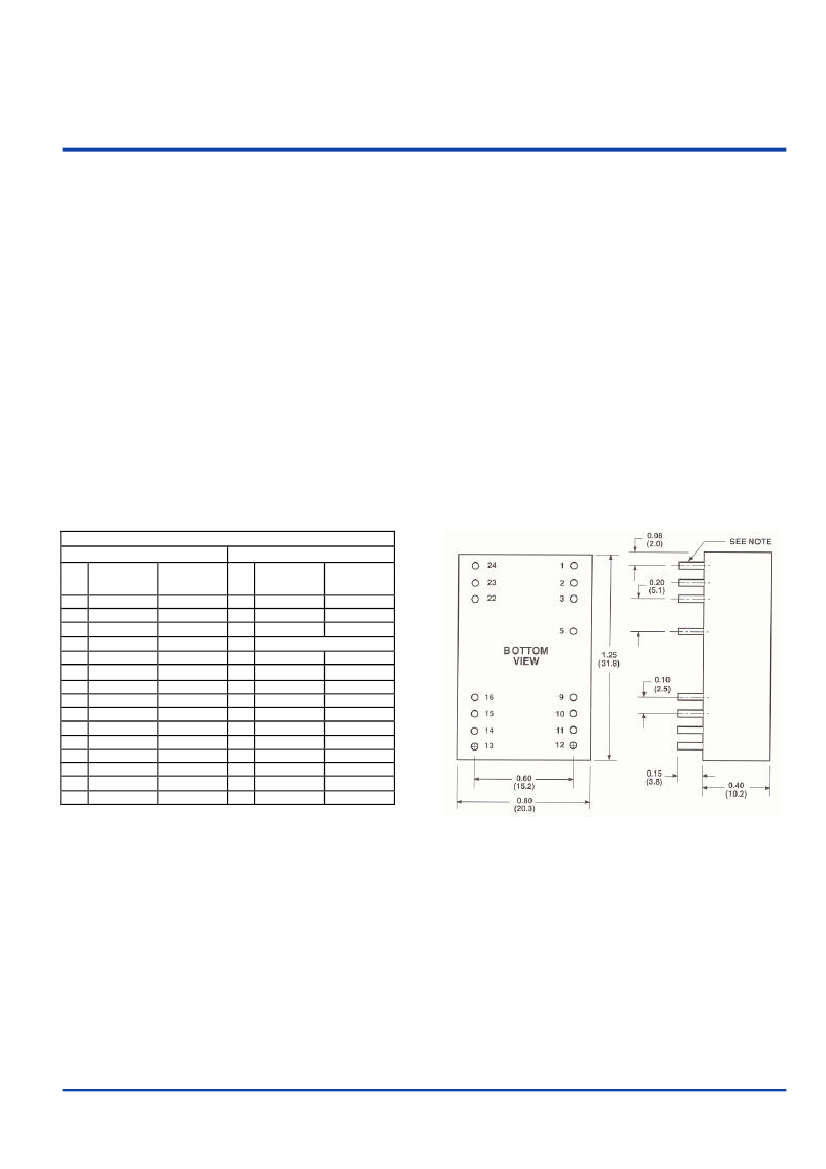

Outline Information and Pin-out
500VDC
PIN
1
2
3
5
9
10
11
12
13
14
15
16
22
23
24
Single
Output
+V input
NC
NC
NP
NP
-V output
+V output
-V input
-V input
+V output
-V output
NP
NC
NC
+V input
PIN CONNECTION
1.5K & 3K VDC
Dual
Output
+V input
-V output
Common
NP
NP
Common
+V output
-V input
-V input
+V output
Common
NP
Common
-V output
+V input
PIN
1
2
3
5
9
10
11
12
13
14
15
16
22
23
24
Single
Output
NP
-V input
-V input
NP
NC
NC
NC
NP
NP
+V output
NC
-V output
+V input
+V input
NP
Common
NC
-V output
NP
NP
+V output
NC
Common
+V input
+V input
NP
Dual
Output
NP
-V input
-V input
* NP---No Pin
* NC---No connection with pin
Note:
1.
2.
3.
4.
5.
Measured from high line to low line
Measured from full load to 10% load
Measured from full load to 1/4 load
Non-conductive black plastic only
Suffix “HM” 1.5KVDC instead of 3KVDC isolation
All dimensions are in inches [mm]
All pins sizes are dia. 0.02” [0.508mm] and 0.14”[0.35mm] length
The information and specifications contained in this brief are believed to be accurate and reliable at the time of publication. Specifications are
subject to change without notice. Refer to product specification sheet for performance characteristics and application guidelines.
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com •Email: sales@btcpower.com
DS LP 3AW Rev2 16-1-04
