BTCPower
3BB Series
Features
•
•
•
•
•
•
•
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion
7.5W DC-DC Converters
7.5W Isolated Output
Remote On/Off option
82% Efficiency
2:1 Input Range
Regulated Outputs
Continuous Short Circuit Protection
Conductive EMI Meet EN55022 Class B
Model
Number
3BB-01
3BB-02
3BB-03
3BB-04
3BB-05
3BB-06
3BB-07
3BB-11
3BB-12
3BB-13
3BB-14
3BB-15
3BB-16
3BB-17
3BB-21
3BB-22
3BB-23
3BB-24
3BB-25
3BB-26
3BB-27
Input
Voltage
Output
Voltage
5 VDC
12 VDC
15 VDC
±12 VDC
±15 VDC
±5 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
±12 VDC
±15 VDC
±5 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
±12 VDC
±15 VDC
±5 VDC
3.3 VDC
Output
Current
1500 mA
625 mA
500 mA
±310 mA
±250 mA
±750 mA
1500 mA
1500 mA
625 mA
500 mA
±310 mA
±250 mA
±750 mA
1500mA
1500 mA
625 mA
500 mA
±310 mA
±250 mA
±750 mA
1500 mA
•
Pi Input Filter
Input Current
No Load
Full Load
7.5 mA
7.5 mA
7.5 mA
12 mA
12 mA
7.5 mA
7.5 mA
5 mA
5 mA
5 mA
7.5 mA
7.5 mA
7.5 mA
5 mA
2
2
2
3
3
3
3
mA
mA
mA
mA
mA
mA
mA
820 mA
780 mA
780 mA
775 mA
780 mA
820 mA
557 mA
400 mA
380 mA
380 mA
385 mA
385 mA
400 mA
271 mA
200 mA
192 mA
192 mA
192 mA
192 mA
200 mA
136 mA
% Efficiency
Case
9-18 VDC
76
80
80
80
80
76
74
78
82
82
81
81
78
76
78
81
81
81
81
78
76
B
18-36 VDC
B
36-72VDC
B
Note: Nominal Input Voltage 12, 24, 28 or 48VDC
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com • Email: sales@btcpower.com
DS LP 3BB Rev2 16-1-04
3BB Series
Specifications
Input Specifications:
7.5W DC-DC Converters
BTCPower
TM
Input Voltage Range…………….………12V………………...…9-18V
24V…………………..18-36V
48V……………………36-72V
Input Filter………………………………………………………..Pi Type
Output Specifications:
Voltage Accuracy…………….. ………………………….+/- 2.0 % max.
Voltage Balance ( Dual )………………………………...+/- 1.0 % max.
Ripple & Noise, 20 MHz BW………3.3V / 5V……. 100 mV p-p max.
12V / 15V……….…1 % p-p max.
Temperature Coeffcient………………………… +/- 0.05 % / ºC max.
Short Circuit Protection………………………………..……Continuous
Line Regulation ¹ Single / Dual Output………….……..+/- 0.5 % max.
Load Regulation Single² …………………………….….+/- 0.5 % max.
Dual³……………………….………+/- 1.0 % max.
General Specifications
:
Efficiency………………………………………………..……...see table
Isolation Resistance………………………………………….100Mohm
Switching Frequency……………………………...….…..100 KHz, min.
Operating Temperature Range…………………………-25ºC ~ +71ºC
Case Temperature………………………………………….100 ºC max.
Cooling …………………………………..………….Free air convection
Storage Temperature Range……………………..…..-40 ºC ~ +100ºC
Isolation Voltage………………………….……………....1500VDC min.
Dimensions……………….……2” x 1” x 0.4“ (50.8 x 25.4 x 10.2 mm)
Case Material…….Black Coated Copper with Non-conducted base
Note:
1.
2.
3.
4.
Measured from high line to low line
Measured from full load to 10% load
Measured from full load to ¼ load
Suffix “T” to the Model Number with Remote On/Off

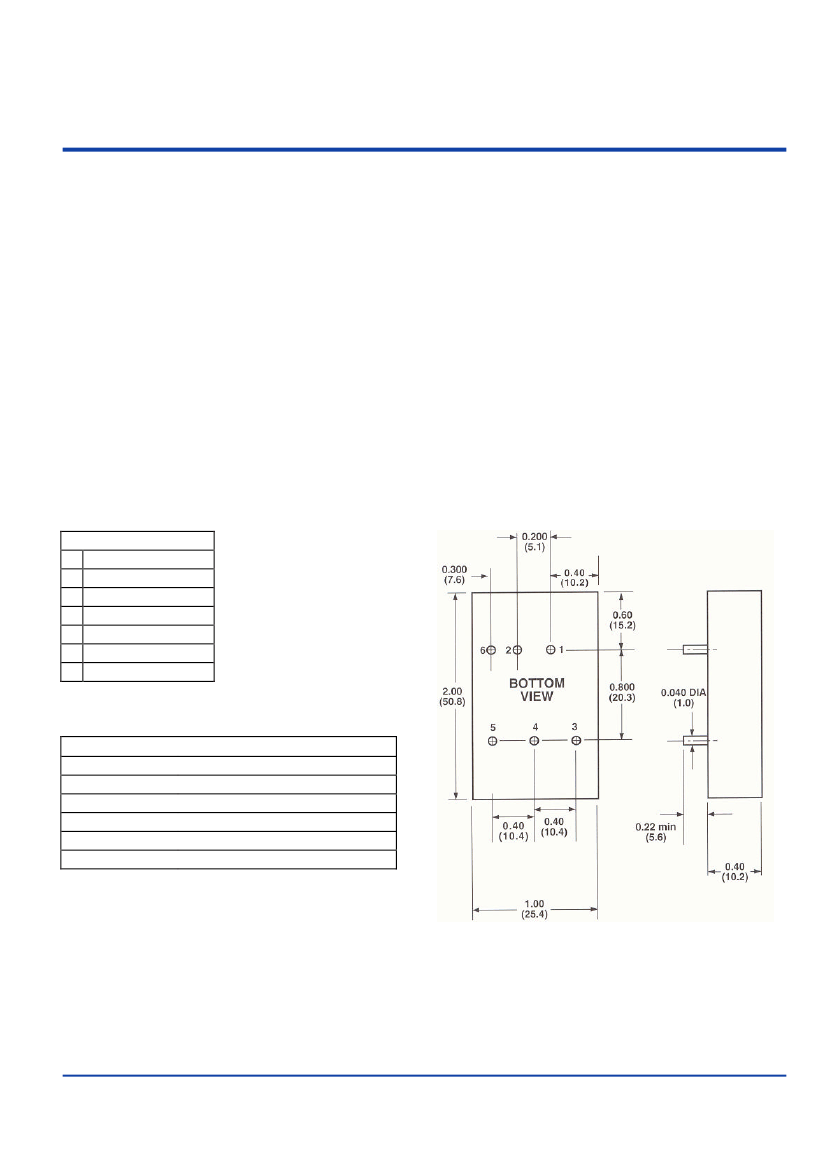

Outline Information and Pin-out
PIN CONNECTION
Pin
1
2
3
4
5
6
Function
+ Input
- Input
+ Output
Common / NP
- Output
NP (Remote control)
* NP---No Pin
Remote On/Off Control
Logic compatibility
Ec-0n
Ec-Off
Shutdown Idle current
Input resistance
Control common
CMOS or Open collector TTL
>5.5 Vdc or open circuit
<1.8 Vdc
10mA
100K ohms (Ein 0Vdc to 9Vdc)
Referenced to Input minus
All dimensions are in inches [mm]
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com • Email: sales@btcpower.com
DS LP 3BB Rev2 16-1-04
