STR-6-H-I-L-TL-40 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> STR-6-H-I-L-TL-40

STR-6-H-I-L-TL-40: DescriptionRF Coaxial Relay, SP6T, Latched, 0.48A (Coil), 12VDC (Coil), 5760mW (Coil), 40000MHz, 2W (RF Input), DC Input, DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size179KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

STR-6-H-I-L-TL-40 Overview

RF Coaxial Relay, SP6T, Latched, 0.48A (Coil), 12VDC (Coil), 5760mW (Coil), 40000MHz, 2W (RF Input), DC Input, DC Output, Panel Mount,

STR-6-H-I-L-TL-40 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN TTL DRIVER AND INDICATOR
body height	105.41 mm
Body length or diameter	55.88 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.48 A
Coil power	5760 mW
Coil resistance	25 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum input power	2 W
Maximum insertion loss	0.9 dB
Maximum isolation	50 dB
Manufacturer's serial number	STR
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Relay action	LATCHED
Relay function	SP6T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	125 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

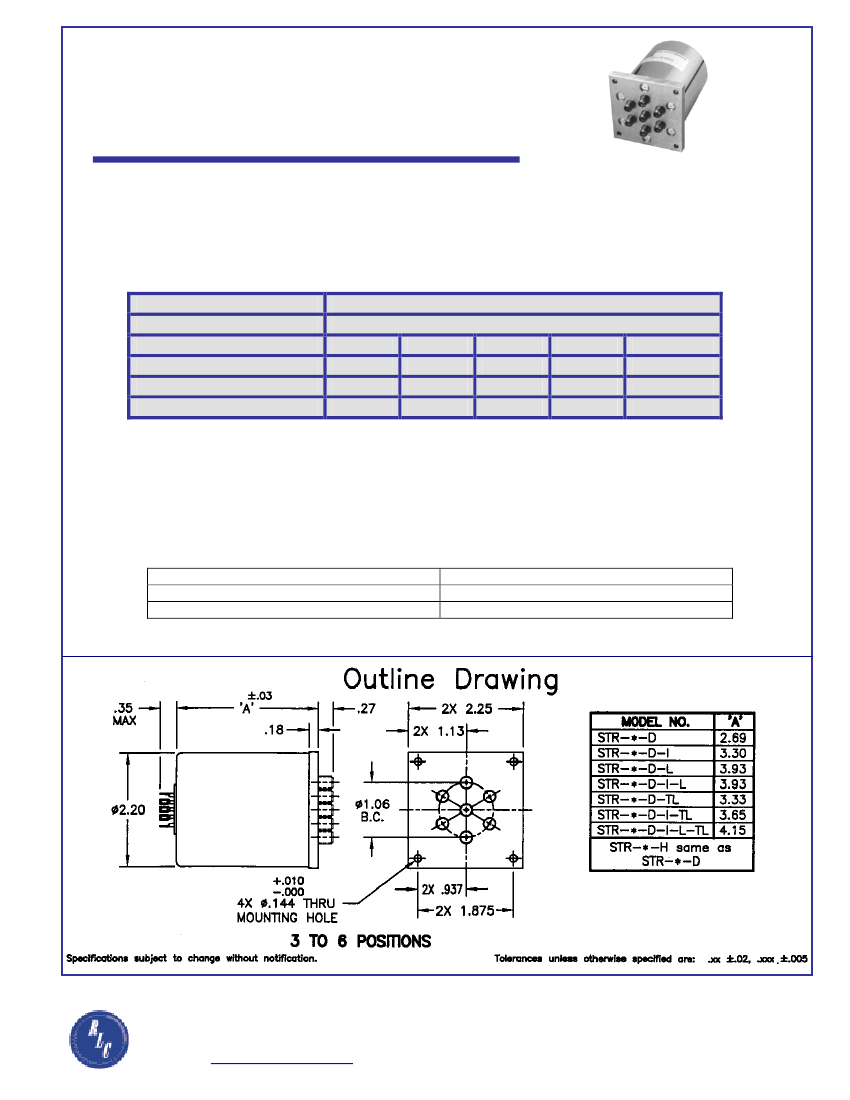

DC-40 GHz Terminated

Multi-Position Coaxial

Switches (3 to 6 Position)

RLC Electronics' Terminated Multi-Position

Coaxial Switch line provides proven reliability,

long life and outstanding electrical performance.

This switch features extremely low insertion loss

and VSWR over the entire DC-40 GHz range,

while maintaining high isolation.

Specifications

STR

—1—2—3—4—5—6

SWITCH TYPE

Frequency Range

Frequency (GHz)

Insertion Loss (dB Max.)

VSWR (Max.)

Isolation (dB Min.)

SP-3T thru SP-6T

DC-40 GHz

4.0-12.4 12.4-18

18-26.5

0.4

0.5

0.75

1.4

1.5

1.7

DC-4.0

0.2

1.25

26.5-40.0

0.9

2.0

Power Rating RF Cold Switching:

2 watts average

Impedance:

50 ohms

Operating Power 25 C:

(Failsafe):

12Vdc at 600ma nom.

28Vdc at 260ma nom.

(Latching):

12Vdc at 480ma nom. 28Vdc at 240ma nom.

Cutthroat circuitry (standard), recovery time 100ms nom.

Connectors, RF:

2.92mm female

Life:

1,000,000 operations

Switching Time:

25 ms Max. failsafe 125 ms latching

Weight:

20 oz.

Environmental Conditions:

MIL-S-3928

Operating Mode:

Failsafe or Latching

Switching Sequence:

Break before make

(1)

(2)

(3)

To designate the switch desired use:

"3", "4", "5" or "6" throw operation

(4)

"L" for Latching cutthroat if desired

"D" for 28 Vdc or "H" for 12 Vdc

(5)

"TL" for TTL Driver if desired

"I" for indicators if desired.

(6)

"40" for 40GHz option

Example: STR-3-D-40 is a SP-3T, 28 Vdc, without indicators, failsafe switch that operates at DC to 40GHz.

Specials requiring closer tolerances, different frequency ranges, special connectors

different materials, finishes, etc. can be furnished upon request.

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 Telephone 914-241-1334 Fax 914-241-1753

e-mail:

sales@rlcelectronics.com

www.rlcelectronics.com
