BTCPower
BAO10 ~ 60 Series
•
•
•
•
•
•
•
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion

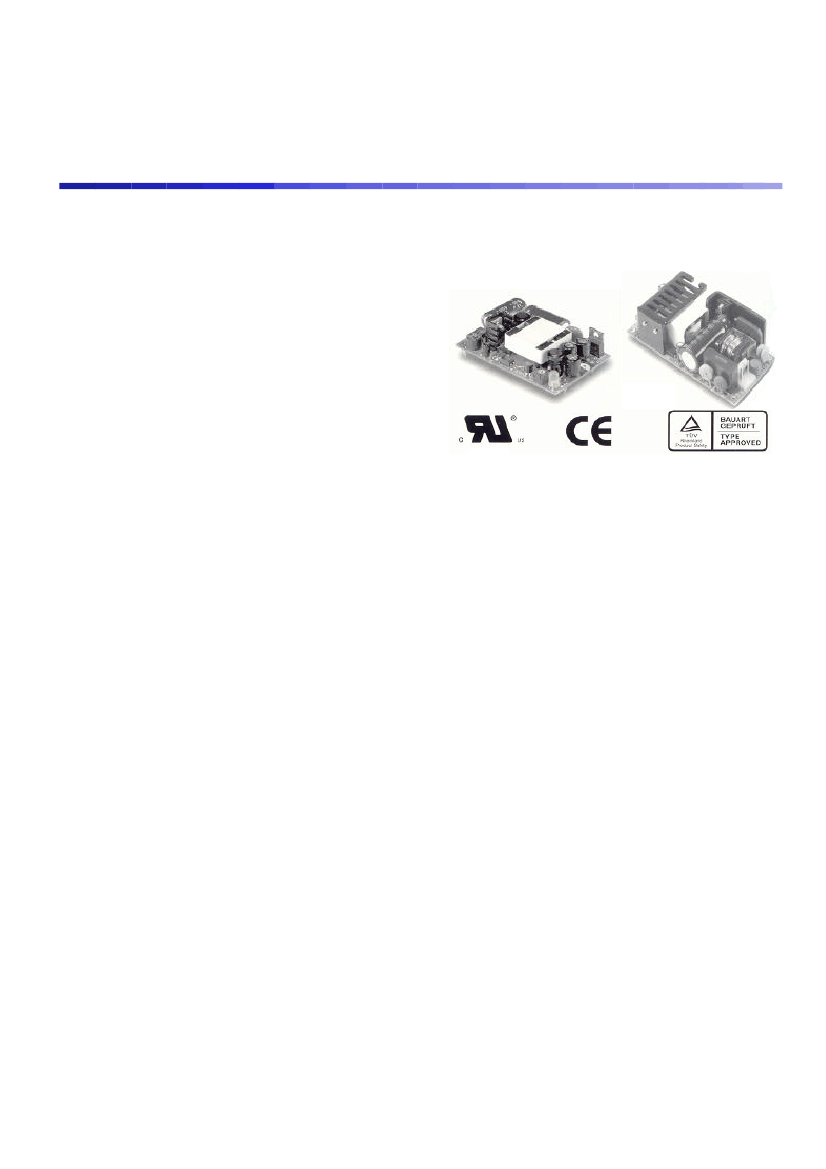

10 ~ 60W Open Frame AC-DC Power Modules
Universal Input 90-264 Vac
PCB Mountable
Efficiency to 75%.
Industry Standard Pin Out
100 % full load burn-in test
ISO-9001 certified manufacturer
Short circuit / overload / over voltage
protection
•
Approvals: UL / TUV / CE
Specifications
Input voltage range……………………………………
90-264 Vac
Input frequency………….……………………………… 47 – 63 Hz
Inrush current…………………………………………… Cold start, 25A / 155Vac, 50A / 230Vac max.
Output voltage….………………………………………… Refer to below table
Initial Accuracy ………………………………………….. ±1.0% max.
Temperature Coefficient ……………………………….. ±0.05% / ºC
Ripple & Noise, 20Mhz BW ……………………………. 50mVp-p, max @ 3.3/5Vo; 1%p-p,max @
others output voltage modules
Hold-up time ¹ ………………………………………….. 8-16ms typ.
Short circuit protection……………...…………………… Continuous
Line regulation ² .…………………………………….…. ±0.05% max.
Load regulation ³ ………………………………………… ±1.0% max.
Efficiency ………..…..…………………………………… Refer to below table
Isolation Voltage (Input/Output) ……………………… 4242 Vac
Operating temp. range ………………………………… 0 ºC – 45 ºC
Storage temp. range ………………………..…………. -40 ºC – +100 ºC
Cooling…………………………………………………… Free air convection
Note:
1.
2.
3.
Measured at Vin = 115 Vac, Full load
Measured from high line to low line
Measured from full load to 10% load
BTCPower
Part Number Selection
Part No
BAO10-UAC-3.3
BAO10—UAC-5
BAO10-UAC-9
BAO10-UAC-12
BAO10-UAC-15
BAO10-UAC-24
BAO15-UAC-3.3
BAO15-UAC-5
BAO15-UAC-9
BAO15-UAC-12
BAO15-UAC-15
BAO15-UAC-24
BAO20-UAC-3.3
BAO20-UAC-5
BAO20-UAC-9
BAO20-UAC-12
BAO20-UAC-15
BAO20-UAC-24
BAO40-UAC-3.3
BAO40- UAC-5
BAO40- UAC-9
BAO40- UAC-12
BAO40- UAC-15
BAO40- UAC-24
BAO40- UAC-30
BAO40- UAC-36
BAO40- UAC-48
BAO60- UAC-3.3
BAO60- UAC-5
BAO60- UAC-9
BAO60- UAC-12
BAO60- UAC-15
BAO60- UAC-24
BAO60- UAC-30
BAO60- UAC-36
BAO60- UAC-48
Output
3.3V, 2.5A
5V, 2.0A
9V, 1.11A
12V, 0.83A
15V, 0.67A
24V, 0.417A
3.3V, 3.0 A
5V, 4.4 A
9V, 2.44A
12V, 1.8 A
15V, 1.4 A
24V, 0.92A
3.3V, 4.4A
5V, 4.4A
9V, 2.44A
12V, 1.8A
15V, 1.4A
24V, 0.92A
3.3V, 6 A
5V, 6 A
9V, 4.45A
12V, 3.34A
15V, 2.67A
24V, 1.67A
30V, 1.33A
36V, 1.11A
48V, 0.834A
3.3V, 8 A
5V, 8 A
9V, 6.67A
12V, 5 A
15V, 4 A
24V, 2.5 A
30V, 2 A
36V, 1.67A
48V, 1.25A
Tolerance
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
Ripple
50 mV
50 mV
90 mV
120 mV
150 mV
240 mV
50 mV
50 mV
90 mV
120 mV
150 mV
240 mV
50 mV
50 mV
90 mV
120 mV
150 mV
240 mV
50 mV
50 mV
90 mV
120 mV
150 mV
240 mV
300 mV
360 mV
480 mV
50 mV
50 mV
90 mV
120 mV
150 mV
240 mV
300 mV
360 mV
480 mV
Efficiency
65%
70%
72%
75%
75%
78%
70%
70%
77%
80%
80%
82%
70%
73%
77%
80%
80%
82%
74%
78%
82%
84%
85%
86%
86%
87%
88%
74%
78%
82%
84%
85%
86%
86%
87%
88%
TM
Note: BAO40 and BAO60 series , the output voltage can be 0.1V interval
.
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A. Pg.
2
.
Tel.: 714-259-4888 • Fax: 714-259-0840 • www.btcpower.com • Email: sales@btcpower.com AC/DC BAO10-60 PB Ver1 8-7-03
