BTCPower
BAO15 Series
•
•
•
•
•
•
•
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion

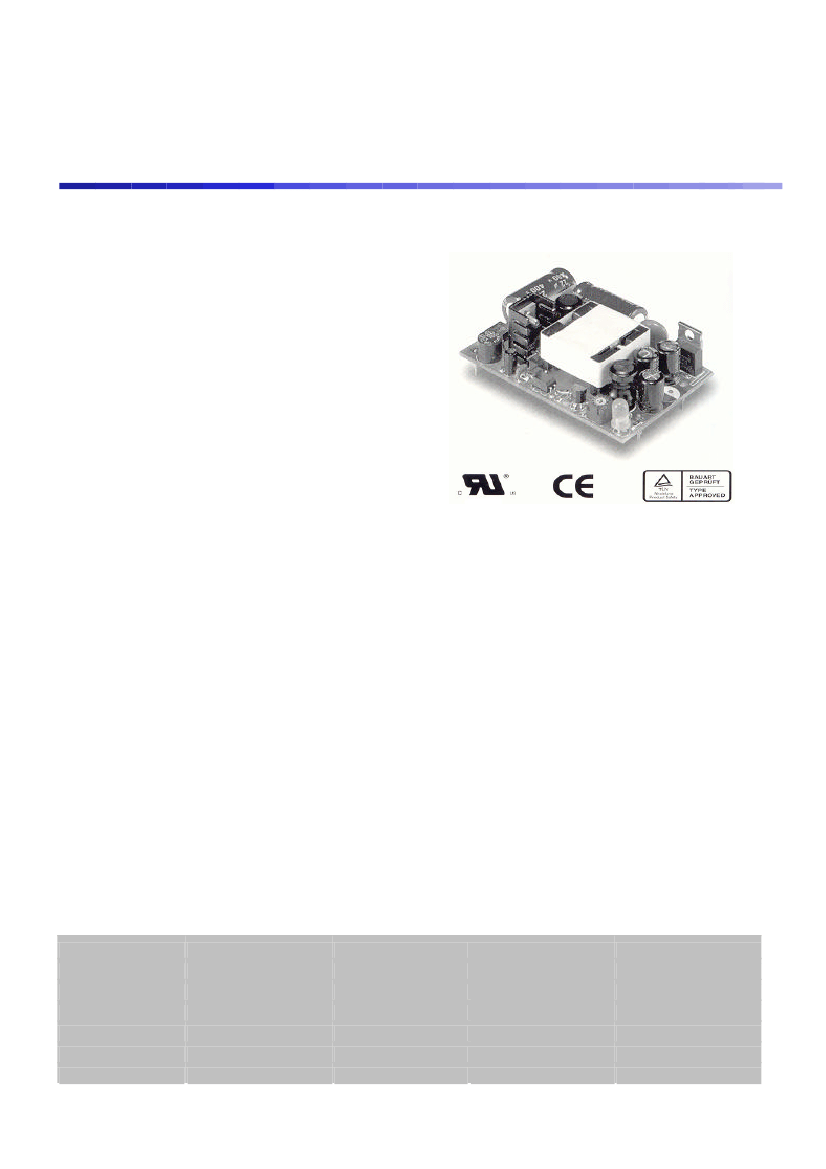

15W Open Frame AC-DC Power Modules
Universal Input 85-264 Vac
PCB Mountable
Efficiency to 75%
Industry Standard Pin Out
100 % full load burn-in test
ISO-9001 certified manufacturer
Short circuit / overload / over voltage
protection
•
Approvals: UL / TUV / CE
Specifications
Input voltage range……………………………………
85-264 Vac
Input frequency………….……………………………… 47 – 63 Hz
Inrush current…………………………………………… Cold start, 20A / 155Vac, 40A / 230Vac
Output voltage….………………………………………… Refer to below table
Initial Accuracy ………………………………………….. ±1.0% max.
Temperature Coefficient ……………………………….. ±0.05% / ºC
Ripple & Noise, 20Mhz BW ……………………………. 50mVp-p, max @ 3.3/5Vo; 1%p-p,max @
others output voltage modules
Hold-up time ¹ ………………………………………….. 16ms typ.
Short circuit protection……………...…………………… Continuous
Line regulation ² .…………………………………….…. ±0.05% max.
Load regulation ³ ………………………………………… ±1.0% max.
Efficiency ………..…..…………………………………… Refer to below table
Working temp……………………………………………
0-50 ºC @ 100 %, -10 ºC @ 80%, 60 ºC @ 60%
Isolation Voltage (Input/Output) ……………………… 4242 Vac
Operating temp. range ………………………………… 0 ºC – 45 ºC
Storage temp. range ………………………..…………. -40 ºC – +100 ºC
Cooling…………………………………………………… Free air convection
Part No
BAO15-UAC-3.3
BAO15-UAC-5
BAO15-UAC-9
BAO15-UAC-12
BAO15-UAC-15
BAO15-UAC-24
Output
3.3V, 3.0A
5V, 4.4A
9V, 2.44A
12V, 1.8A
15V, 1.4A
24V, 0.92A
Tolerance
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
+/ - 1 %
Ripple
50 mV
50 mV
90 mV
120 mV
150 mV
240 mV
Efficiency
70%
70%
77%
80%
80%
82%
BTCPower
Note:
1.
2.
3.
Measured at Vin = 115 Vac, Full load
Measured from high line to low line
Measured from full load to 10% load
TM

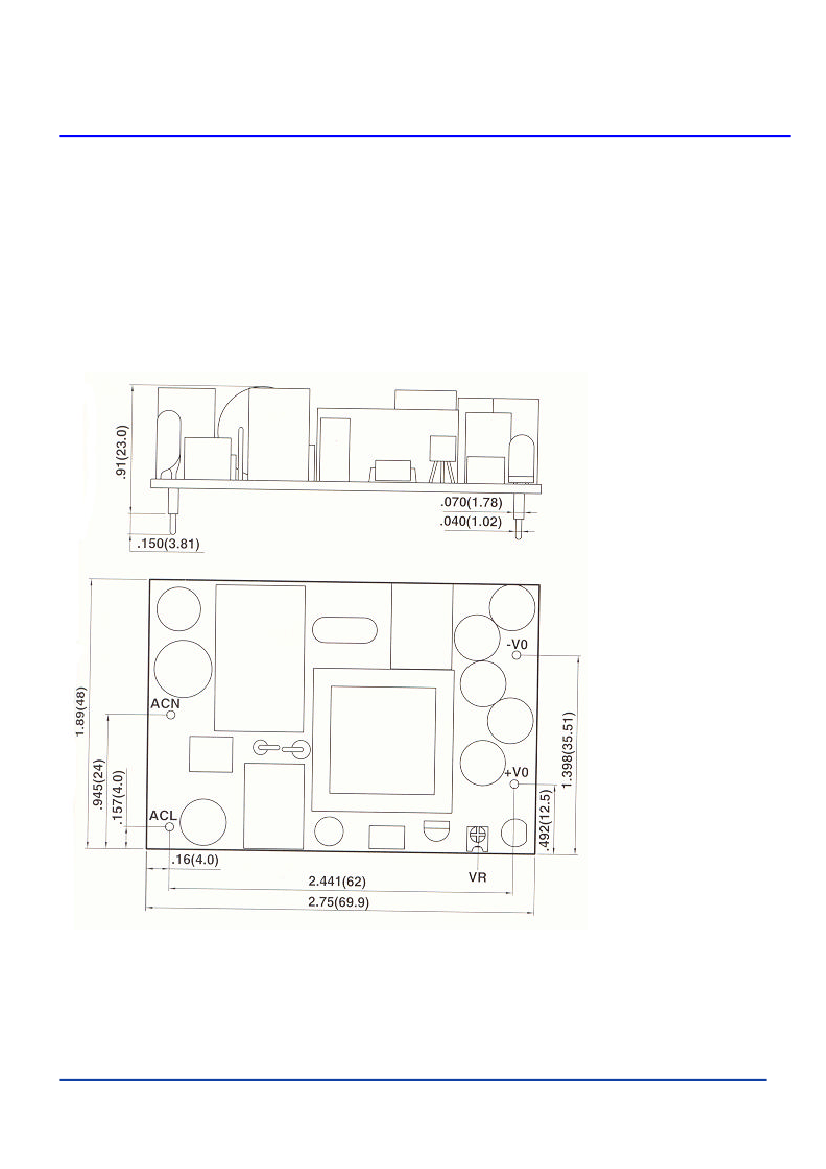

MECHANICAL DRAWING
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A. Pg.
2
.
Tel.: 714-259-4888 • Fax: 714-259-0840 • www.btcpower.com • Email: sales@btcpower.com AC/DC BAO15 PS Ver1 8-7-03
