BAO60-UAC-3.3: Description60W Open Frame AC-DC Power Modules; File Size224KB，2 Pages; ManufacturerBTCPower; Websitehttp://www.btcpower.com/

Download Datasheet View All

BAO60-UAC-3.3 Overview

60W Open Frame AC-DC Power Modules

Preview

Download Datasheet

View All

BTCPower

BAO60 Series

•

Broadband TelCom Power,

Inc.

Redefining “Current” Limits In Power Conversion

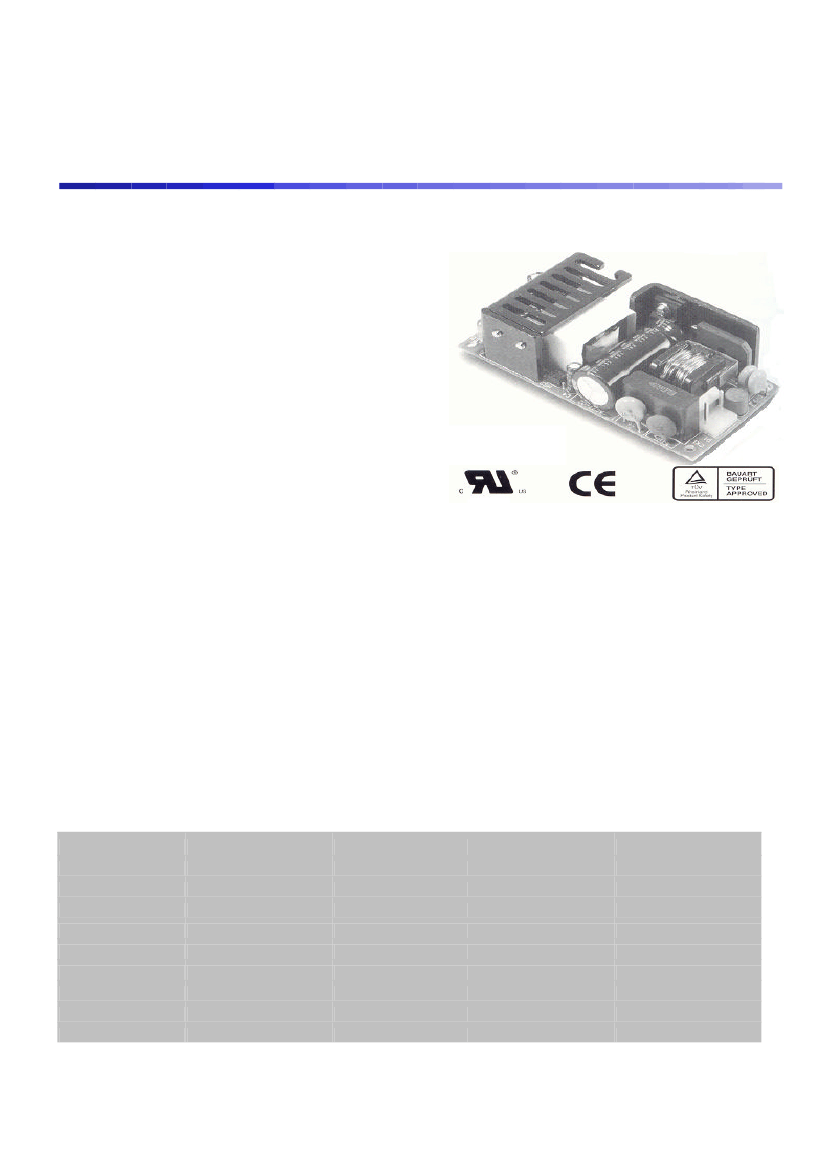

60W Open Frame AC-DC Power Modules

Universal Input 90-264 Vac

PCB Mountable

Efficiency to 85%

Industry Standard Pin Out

100 % full load burn-in test

ISO-9001 certified manufacturer

Short circuit / overload / over voltage

protection

•

Approvals: UL / TUV / CE

Specifications

Input voltage range………………………………………………………………..90-264 Vac

Input frequency………….…………………………………………………………47 – 63 Hz

Inrush current………………………………………………………………………Cold start, 25A / 155Vac, 50A / 230Vac

Output voltage….…………………………………………………………………..Refer to below table

Initial Accuracy ………………………………………………………………….. ±1.0% max.

Temperature Coefficient ………………………………………………………….±0.05% / ºC

Ripple & Noise, 20Mhz BW ………………………………………….…………. 50mVp-p, max @ 3.3/5Vo; 1%p-p,max @

other output voltage modules

Hold-up time ¹ ……………………………………………………………………..8ms typ.

Short circuit protection……………...………………………………………….…Continuous

Line regulation ² .………………………………………………………………….±0.05% max.

Load regulation ³ …………………………………………………………….……±1.0% max.

Efficiency ………..…..…………………………………………………………….Refer to below table

Isolation Voltage (Input/Output) ………………………………………………...4242 Vac

Operating temp. range ……………………………………………………….…..0 ºC – 50 ºC

Storage temp. range ………………………..……………………………………-40 ºC – +100 ºC

Cooling………………………………………………………………………………Free air convection

Part No

BAO60- UAC-3.3

BAO60- UAC-5

BAO60- UAC-9

BAO60- UAC-12

BAO60- UAC-15

BAO60- UAC-24

BAO60- UAC-30

BAO60- UAC-36

BAO60- UAC-48

Output

3.3V, 8 A

5V, 8 A

9V, 6.67A

12V, 5 A

15V, 4 A

24V, 2.5 A

30V, 2 A

36V, 1.67A

48V, 1.25A

Tolerance

+/ - 1 %

Ripple

50 mV

90 mV

120 mV

150 mV

240 mV

300 mV

360 mV

480 mV

Efficiency

74%

78%

82%

84%

85%

86%

87%

88%

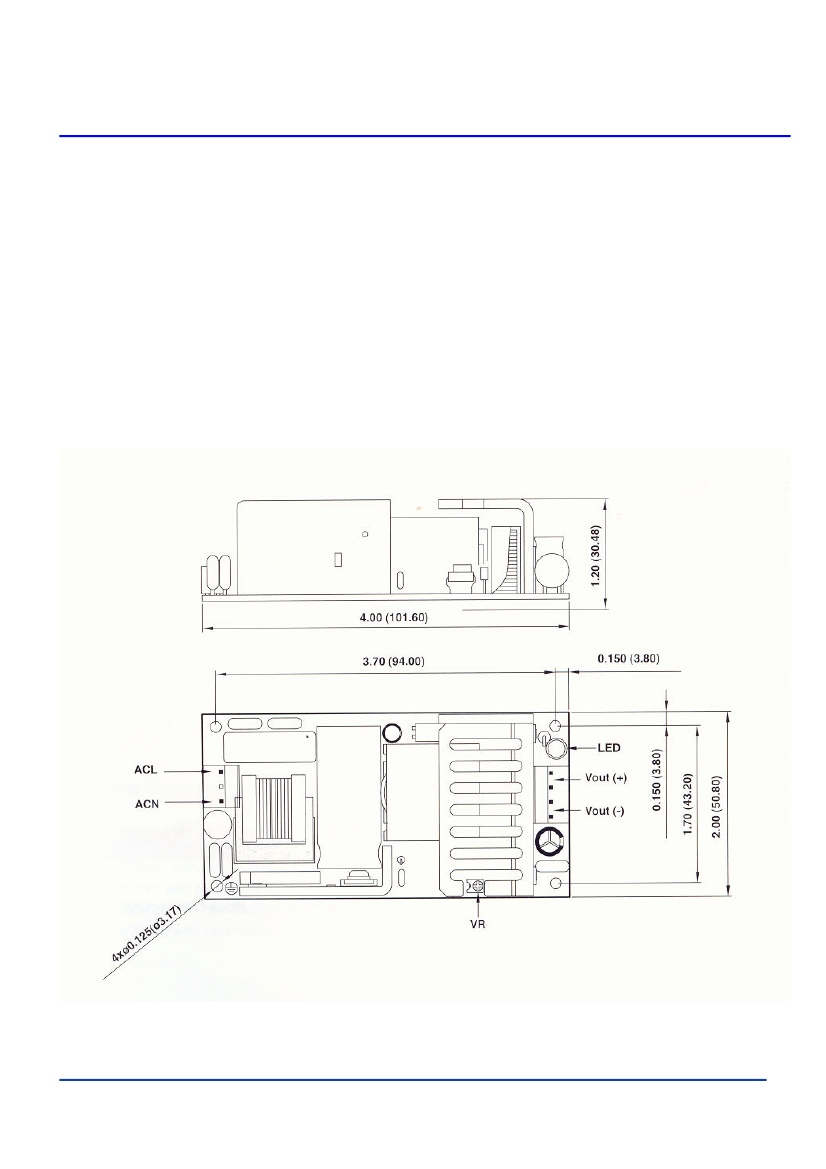

Note: The output voltage cab be 0.1V interval changed.
