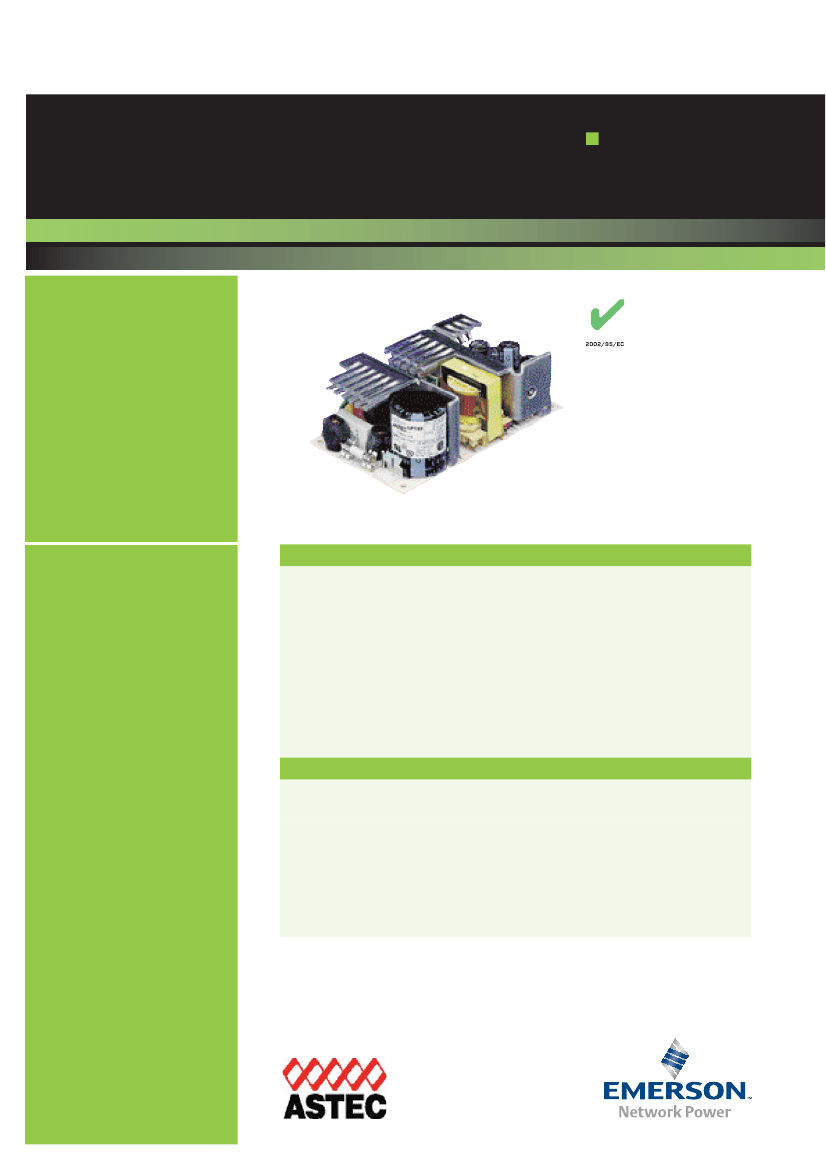

LPT60-M Series
60 Watts
Medical
Total Power:
Input Voltage:
# of Outputs:
60 - 80 Watts
85 - 264 VAC
120 - 300VDC
Triple
Rev. 06.15.07
LPT60-M Series
1 of 3
RoHS
Electrical Specifications
Special Features
•
•
•
•
•
•
•
•
•
•
•
Medical safety approvals
Universal input
3" x 5" footprint
Remote sense on main output
Built-in EMI filter
Low output ripple
Adjustable 5V output
Overvoltage protection
Overload protection
110KHz switching frequency
LPX60 enclosure kit available
Input
Input range
Frequency
Inrush current
Input current
Efficiency
EMI
85-264VAC
120-300VDC
47-440Hz
<18A peak @ 115VAC;
<36A peak @ 230VAC, cold start @ 25°C
1.5A max. (RMS) @ 115VAC
70% typical at full load
FCC Class A conducted; CISPR 22 Class A conducted
EN55022 Class A conducted;
VDE 0878 PT3 Class A conducted
<75μA max. @ 50/60 Hz, 264VAC input
Safety ground
leakage current
Output
Maximum Power
Cross regulation
Adjustment range
Hold-up time
Overload protection
0750/EN60601-1 (IEC601)
21310-3336-0015
UL2601
E182560
CSA 22.2 No. 601.1
LR109492
Mark (LVD)
Overvoltage protection
Remote sense
60W for convection; 80W with 30CFW forced air
±2% on output 1; ±5% on outputs 2, 3
-5, +10% minimum
20ms @ 60W load, 115VAC nominal line
Short circuit protection on all outputs. Case overload
protected @ 110% to 145% above peak rating
5.7 to 6.7 VDC on the main output
Compensates for 0.5 V lead drop min. Will operate without
remote sense connected. Reverse connection protected.
Safety
VDE
UL
CSA
CE
Embedded Power for
Business-Critical Continuity
Environmental Specifications
Operating temperature:
Electromagnetic
susceptibility:
Humidity:
Vibration:

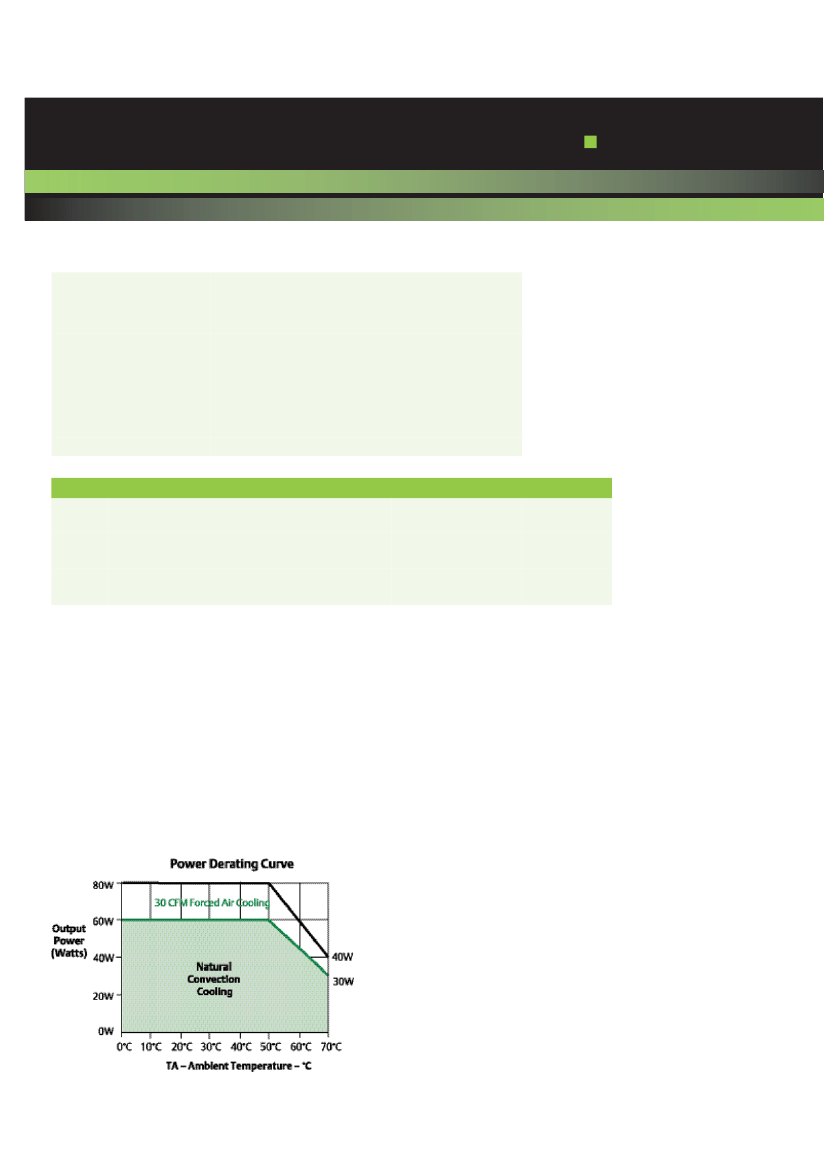

0° to 50°C ambient derate each output at 2.5% per degree
from 50° to 70°C, -20°C startup
Designed to meet IEC 801, -2, -3, -4, -5, -6, Level 3
Operating; non-condensing 5% to 95%
Three orthogonal axes, sweep at 1 oct/min, 5 min. dwell
at four major resonances 0.75G peak 5 Hz to 500 Hz,
operational
-40° to 85°C
±.04% per °C
>550,000 hours at full load and 25°C ambient conditions
Rev. 06.15.07
LPT60-M Series
2 of 3
Storage temperature:
Temperature coefficient:
MTBF demonstrated:
Ordering Information
Maximum Load
Maximum Load
with Convnection
with 30CFM
cooling
Forced Air
LPT62-M
+5V
0.7A
7A
8A
+12V
0.3A
3A
3.5A
-12V
0A
0.7A
1A
LPT63-M
+5V
0.7A
7A
8A
+15V
0.3A
2.8A
3.3A
-15V
0A
0.7A
1A
1. Peak current lasting <30 seconds with a maximum 10% duty cycle.
Model
Number
Output
Voltage
Minimum
Load
Peak Load
1
10A
6A
1.5A
10A
4A
1.5A
Regulation
2
±2%
±5%
±5%
±2%
±5%
±5%
Ripple P/P (PARD)
3
50mV
120mV
120mV
50mV
150mV
150mV
2. At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10μF in parallel with a 0.1μF capacitor at rated line voltage and load ranges.
4. Minimum Loads are required.
Embedded Power for
Business-Critical Continuity

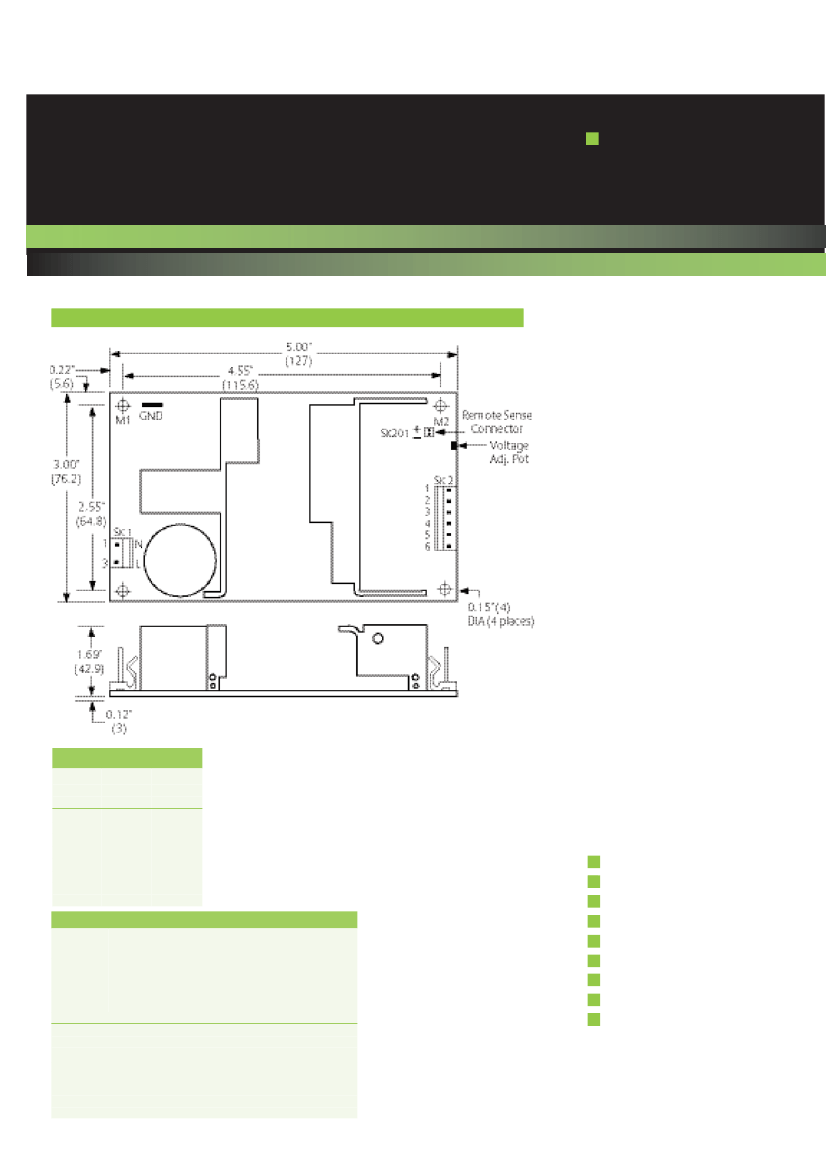

Mechanical Drawing
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Rev. 06.15.07
LPT60-M Series
3 of 3
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
16th - 17th Floors, Lu Plaza
2 Wing Yip Street, Kwun Tong
Kowloon, Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.astecpower.com
www.artesyn.com
technicalsupport@astec.com
technicalsupport@artesyn.co
m
While every precaution has been taken to ensure
accuracy and completeness in this literature,
Emerson Network Power assumes no responsibility,
and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Printed in US A
Pin Assignments
Connector
SK1-1
SK1-3
SK2-1
SK2- 2
SK2- 3
SK2-4
SK2-5
SK2-6
SK201-1
SK201-2
LPT62-M
Neutral
Line
+12V
+5V
+5V
Common
Common
-12V
+Sense
-Sense
LPT63-M
Neutral
Line
+15V
+5V
+5V
Common
Common
-15V
+Sense
-Sense
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
Connectivity
DC Power
Embedded Power
Inbound Power
Integrated Cabinet Solutions
Outside Plant
Precision Cooling
Site Monitoring and Services
EmersonNetworkPower. com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2007 Emerson Electric Co.
Mating Connectors
AC Input:
DC Outputs:
Molex 09-50-8031 (USA)
09-91-0300 (UK)
PINS: 08-58-0111
Molex 09-50-8061 (USA)
09-91-0600 (UK)
PINS: 08-52-0113
Remote Sense: Molex 22-01-2025
PINS: 08-52-0113
Astec Connector Kit #70-841-006, includes all of the above
1.
2.
3.
4.
5.
6.
7.
Specifications subject to change without notice.
All dimensions in inches (mm), tolerance is ±0.02" (±0.5mm)
Mounting holes M1 and M2 should be grounded for EMI purposes.
Mounting hole M1 is safety ground connection.
Specifications are for convection rating at factory settings at 115 VAC input,
25°C unless otherwise stated.
Warranty: 2 year
Weight: 0.75lbs/0.34kg
