BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BPD-BQA331
END- LOOK PACKAGE
PIN PHOTO DIODE
Features
1. Wide receiving angle
2. Linear response vs. irradiance
3. Fast switching time
4. End-looking Package ideal for space
limited applications
5. Lens Appearance: Water clear
6. This product don't contained restriction
substance, compliance RoHS standard.
●
Package Dimensions:
3.00(.118)
0.81(.032)
5.30(.209)
Anode
1.5(.059) MAX.
23.4(.921) MIN.
Cathode
3.80(.150)
0.5(.02) SQ. TYP.
Anode
Cathode
Description
The BPD-BQA331 device consists
of a PIN silicon photodiode molded in
a black epoxy package which allows
spectral response from visible to
infrared light wavelengths. The wide
receiving angleprovides relatively even
reception over a large area. The
end-looking package is designed for
easy PC board mounting. This photodiode
is mechanically and spectrally matched to
BRIGHT’s GaAs and GaAlAs series of infrared
emitting diodes.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.25mm (0.01’) unless otherwise specified.
3.Lead spacing is measured where the leads emerge from the package
4. Specifications are subject to change without notice
1.00(.039) MIN.
2.54(.100) NOM.
Absolute Maximum Ratings(Ta=25℃)
½鴻工業股½有限公司
http://www.brtled.com
Parameter
Maximum Rating
100
Unit
mW
Power Dissipation
Reverse Breakdown Voltage
Operating Temperature
60V
-40℃~+85℃
Storage Temperature Range
-45℃~+100℃
Lead Soldering Temperature
260℃ for 5 seconds
Rev.1.1
Page:1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BPD-BQA331
Electrical Characteristics
(TA=25℃ unless otherwise noted)
SYM
BOL
I
L
I
D
V
(BR)
V
F
C
T
tr/tf
PARAMETER
Reverse Light Current
Reverse Dark Current
Reverse Break down Voltage
Forward Voltage
Total Capacitance
Rise Time/ Fall Time
MIN
-
-
30
-
-
-
TYP
25
-
-
-
5
10
MAX
-
30
-
1.2
-
-
UNITS
µA
nA
V
V
PF
ns
TEST CONDITIONS
V
R
=5V.Ee=1mW/cm
2
V
R
=10V.Ee=0 mW/cm
2
I
R
=100µA
I
F
=1mA
V
R
=5V.Ee=0,f=1.0MHZ
V
R
=20V,λ=850nm.RL=50Ω

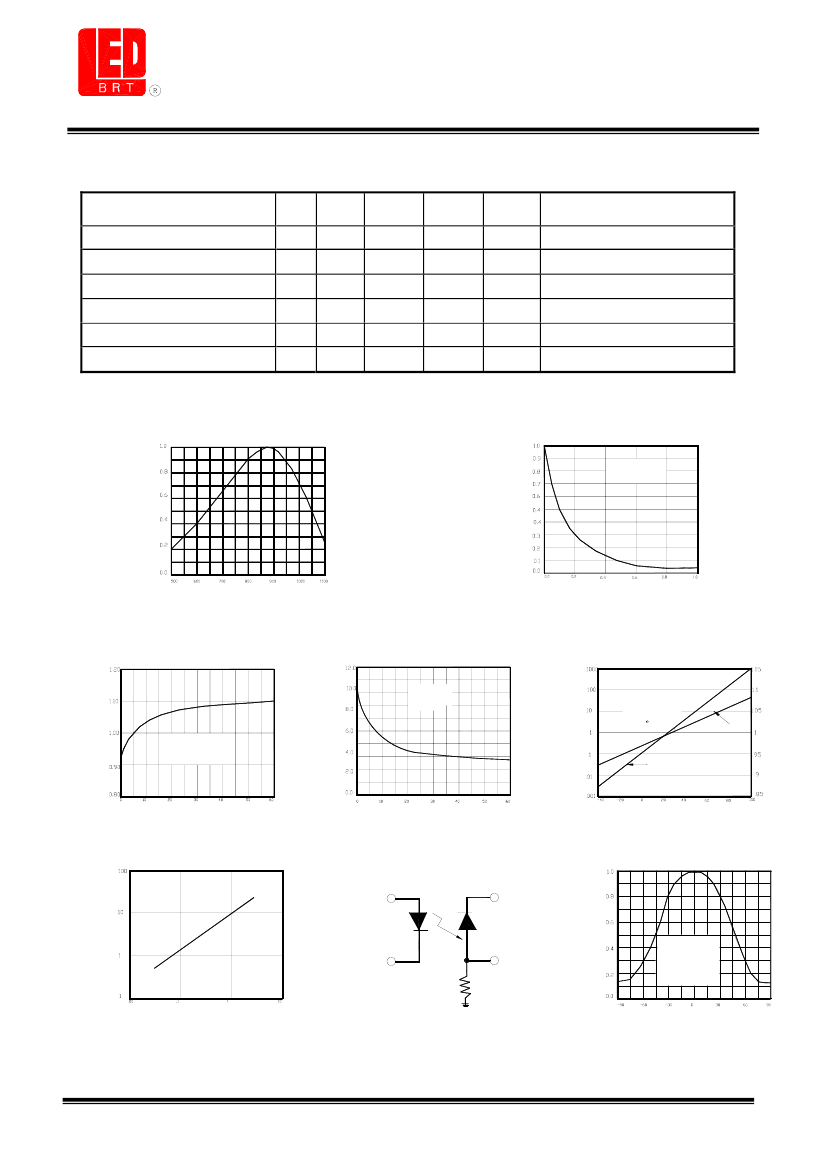

Typical Optical-Electrical Characteristic Curves
Relative Response vs.
Wavelength
Relative Response-%
Relative Output Current
Coupling Characteristics
VR=5V
IF=20mA
λ
-Wavelength-nm
Distance Between Lens Tips-inches
Normalized Light Current
TA=25℃
Ee=0mW/cm
2
f=1MHZ
Normalized Dark Current
VR=5V
λ
=935nm
Normalized to
TA=25 c
Light Current
TA=25°
C
λ
=935nm
Normalized to VR=5V
Dark Cuttent
Reverse Voltage
Reverse Voltage
Ambient Temperature
Light Current vs. Angular
Displacement
Light Current vs. lrradiance
Switching Time Test Circuit
VR=5V
TA=25°
C
λ
=935nm
Normalized Current
½鴻工業股½有限公司
http://www.brtled.com
IF
VR
OUT
Note:
See Above For.
Conditions
IL-light Current-uA
RL
Test Conditions
λ
=935nm
VR=5V
Distance Lens to
Lens=1.5inches
lrradiance-mW/cm
2
Angular Displacement-Deg
Rev.1.0
Page:2 of 3
Normalized Light Current
Normalized Light Current vs
Reverse Voltage
Total Capacitance vs
Reverse Voltage
Normalized Light and Dark
Current vs Ambient Temperture
Total Capacitance
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BPD-BQA331
●

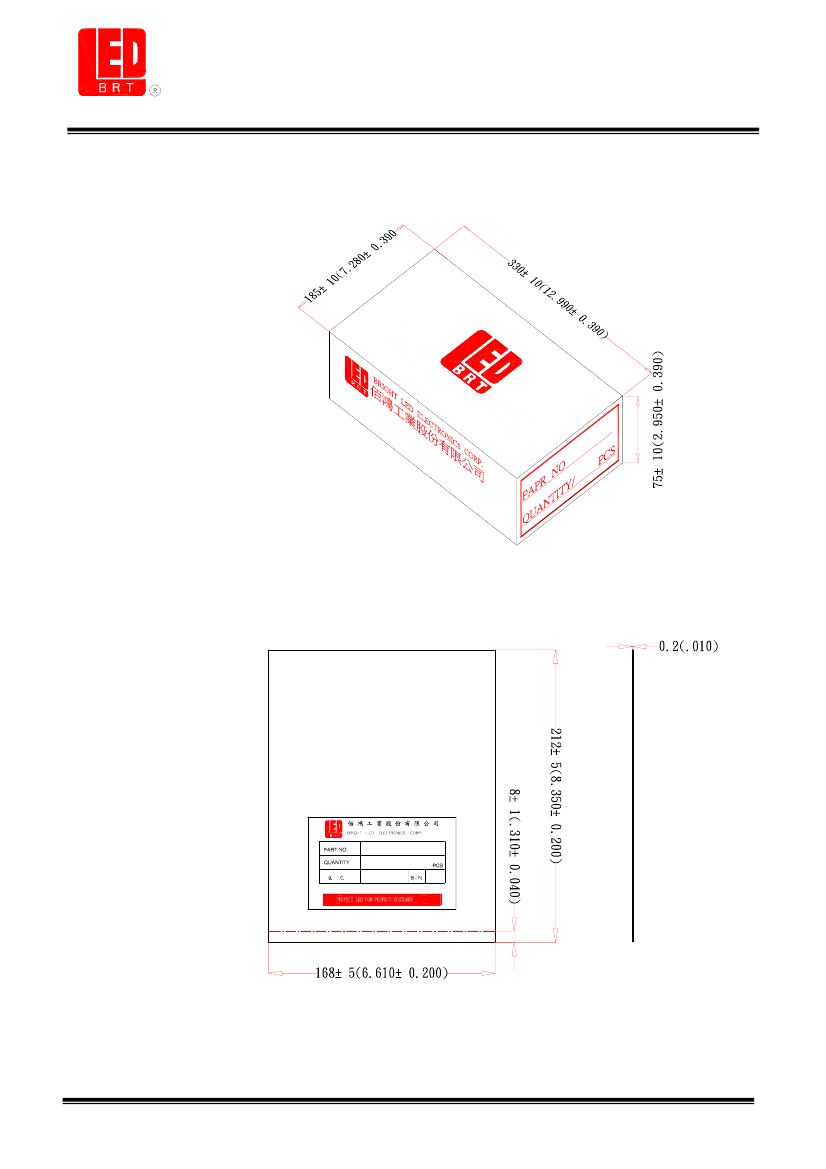

Tapping and packaging specifications(Units: mm)
Packaging Bag Dimensions
½鴻工業股½有限公司
http://www.brtled.com
Notes:
1、1K per bag,8Kpcs per box.
2、All dimensions are in millimeters(inches).
3、Specifications are subject to change without notice.
Rev.1.0
Page:3 of 3
