BL-HB4D134B-TRB
●
Features:
1. Emitted Color : Super Blue and
Super Red
2. Lens Appearance : Water Clear
3. Bi-color type.
4. 3.2x1.0x2.0mm(1204) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Package Dimensions:
3.2(.126)!O0.2
1.3(.051)
0.6(.024)
1
Super Blue
Super Blue
3,4
2
Super Red
1
3
1.0(.039)!O0.2
2
4
0.4(.016)
0.3(.012)
Super Red
4-R0.25(.010)
2.0(.079)
For reflow soldeving
For upright mounting
2.0(.079)!O0.2
1.5(.059)
2.0(.079)
1.5(.059)
0.5(.020)
1.0(.039)
Cathode Mark
For right anoge mounting
1.5(.059)
2.0(.079)
1.5(.059)
Cathode
0.6(.024)
0.6(.024)
Cathode
1.2(.047)
0.8(.02)
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Super Blue
120
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Super Red
60
30
100
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HB4D134B-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Color
Super Blue
Super Red
Super Blue
Super Red
Super Blue
Super Red
Super Blue
Super Red
Super Blue
Super Red
Super Blue
Super Red
Super Blue
Super Red
Min.
-
28
12.3
-
-
465
638
-
-
Typ.
3.4
1.8
50
25
-
470
660
-
30
20
100
Max.
3.8
2.6
-
100
-
475
648
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

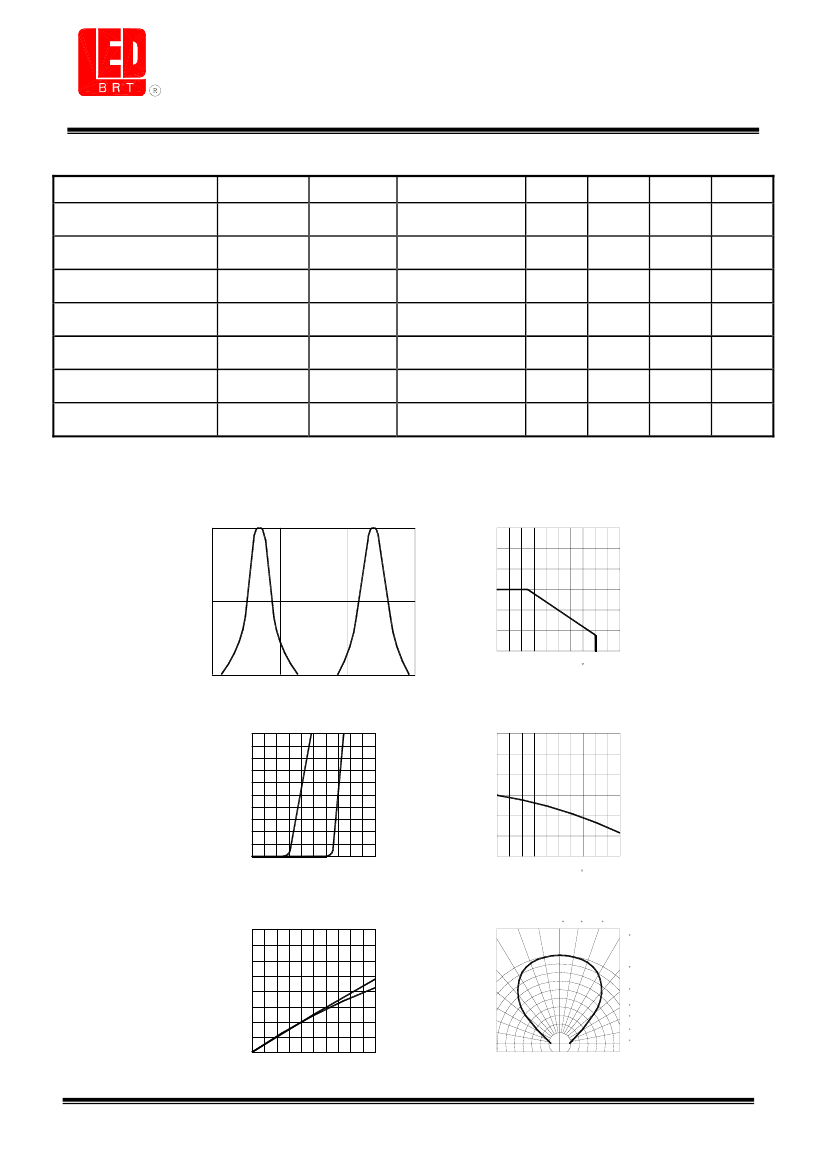

Typical Electro-Optical Characteristics Curves
Fig.2 Forward current derating curve
Fig.1 Relative intensity vs. wavelength
(B)
1.0
(R)
60
vs. ambient temperature
50
Forward Current (mA)
40
Relative radiant intensity
30
0.5
20
10
0
20
40
60
80
100
Ambient temperature Ta( C)
0
400
500
600
700
Wavelength (nm)
Fig.3 Forward current vs. forward voltage
(R)
(B)
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
Relative luminous intensity
2.5
Forward current (mA)
(Normalized @ 20mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
4.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
3.0
Relative radlant intensity
1.0
40
(B)
2.0
(R)
0.9
0.8
50
60
70
1.0
0.7
80
90
0
5
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HB4D134B-TRB
●

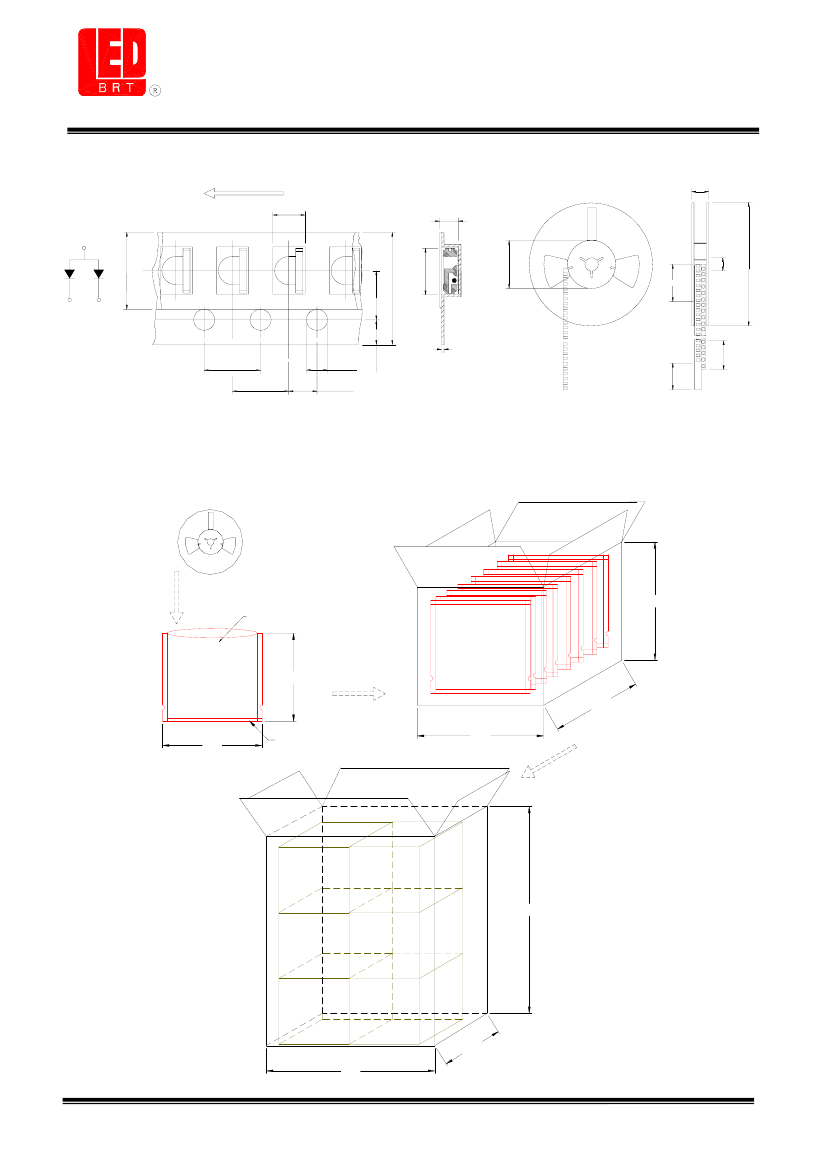

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
2.3 ± 0.1
ANODE
START
END
17.2± 1.2
1.3 ± 0.1
71.0± 0.1
13.0± 0.5
5.3 ± 0.05
8.0 ± 0.3
3.3 ± 0.1
CATHODE
CATHODE
3.5 ± 0.05
TRAILER
1.75 ± 0.1
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
LEADER
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
●
Package Method:(unit:mm)
10 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
Ver.1.0 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HB4D134B-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A ) ( B 4 )
BIN CODE
Min. (mcd)
M
N
P
Q
24.0
37.0
55.0
82.0
Max. (mcd)
48.0
72.0
11 0 . 0
160.0
C o l o r B i n L i m i ts ( A t 2 0 m A ) ( B 4 )
BIN CODE
Min. (nm)
4
5
464
469
Max. (nm)
471
476
V
F
B i n L i m i ts ( A t 2 0 m A ) ( B 4 )
BIN CODE
H
J
K
L
Min.(v)
2.95
3.15
3.35
3.55
Max.(v)
3.25
3.45
3.65
3.85
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A ) ( D 1 )
BIN CODE
Min. (mcd)
K
L
M
N
11 . 0
16.0
24.0
37.0
Max. (mcd)
21.0
32.0
48.0
72.0
●
B IN：
x
x
x - x
Intensity
BIN CODE(D1)
V
F
BIN CODE(B4)
Color BIN CODE(B4)
Intensity BIN CODE(B4)
Ver.1.0 Page 4 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HB4D134B-TRB
●
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021
:B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021
:B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021
:B-10
Storage
Low
Temperature JIS-C-7021
:B-12
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021
:A-4
Thermal Shock MIL-STD-202:107D
Environmental
MIL-STD-750:1051
Test
MIL-STD-883:1011
Solder
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021
:A-1
Connect with a power If=20mA
Ta=Under room temperature
Test time=1,000hrs
Ta=+65℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-35℃±5℃
Test time=1,000hrs
-35℃ ~ +25℃ ~ +85℃ ~ +25℃
60min 20min
60min
20min
Test Time=5cycle
-35℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating：
140℃-160℃,within 2 minutes.
Operation heating：
235℃(Max.), within 10seconds. (Max.)
0/20
0/20
0/20
0/20
0/20
0/20
0/20
●
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
V
F
( V)
I
R
(uA)
Iv ( mcd )
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgement criteria for failure
Over Ux1.2
Over Ux2
Below SX0.5
Note:
1.U means the upper limit of specified characteristics.
S means initial value.
2.Measurment shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
Ver.1.0 Page 5 of 7
