UC1134-00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> UC1134-00

UC1134-00: Description925 MHz - 960 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size120KB，2 Pages; ManufacturerRakon Limited

Download Datasheet Parametric Compare View All

UC1134-00 Overview

925 MHz - 960 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN

UC1134-00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
structure	COMPONENT
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.7 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	925 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	ISOLATOR
Base Number Matches	1

Preview

Download Datasheet

View All

DROP-IN CIRCULATORS & ISOLATORS

High power Subminiature SMD isolators

HIGH POWER

SUBMINIATURE SMD ISOLATORS

Description

TEMEX surface mount isolators, designed for cellular applications, with high performance at low cost.

These designs are suitable for IR reﬂow assembly at 235° C. Delivered in tape and reel, they are

available at the main cellular frequency band. Reel of 500 pieces are delivered in sealed pack with P/N

and date code.

Custom product are available upon request.

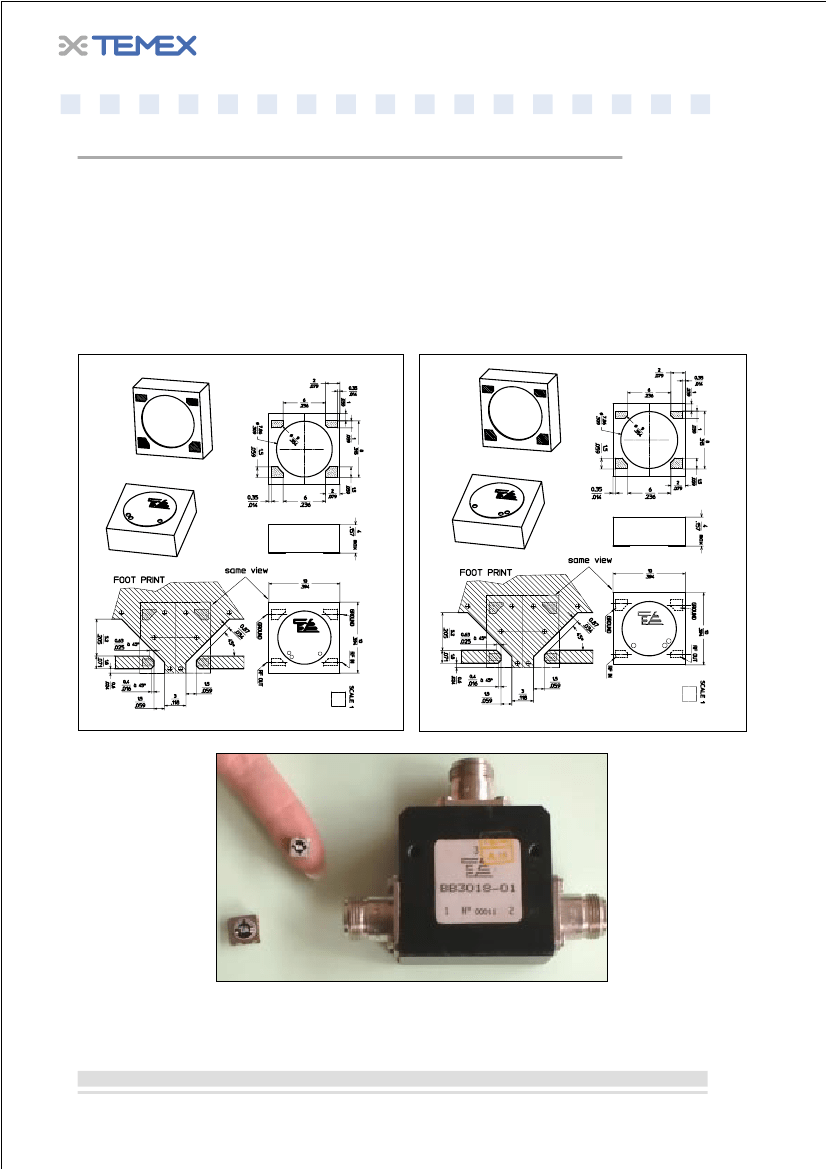

Outline drawings

CCW

SALES OFFICES: VISIT OUR WEB SITE AT

http://www.temex.net

15-11

Vol. 1

UC1134-00 Related Products

	UC1134-00	UC1234-08	UC1130-01	UC1134-08	UC1134-12	UC1230-01	UC1234-00	UC1234-06	UC1134-06	UD1234-12
Description	925 MHz - 960 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	819 MHz - 854 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	869 MHz - 894 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	819 MHz - 854 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	885 MHz - 920 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	869 MHz - 894 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	925 MHz - 960 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	880 MHz - 915 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	880 MHz - 915 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN	885 MHz - 920 MHz RF/MICROWAVE ISOLATOR, SMD, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	40 dBm	40 dBm	40 dBm	40 dBm	40 dBm	40 dBm	40 dBm	40 dBm	40 dBm	40 dBm
Maximum insertion loss	0.7 dB	0.7 dB	0.7 dB	0.7 dB	0.7 dB	0.7 dB	0.7 dB	0.7 dB	0.7 dB	0.9 dB
Maximum operating frequency	960 MHz	854 MHz	894 MHz	854 MHz	920 MHz	894 MHz	960 MHz	915 MHz	915 MHz	920 MHz
Minimum operating frequency	925 MHz	819 MHz	869 MHz	819 MHz	885 MHz	869 MHz	925 MHz	880 MHz	880 MHz	885 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-20 °C
RF/Microwave Device Types	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR
Base Number Matches	1	1	1	1	1	1	1	1	1	1
