MCM6949TS8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MCM6949TS8

MCM6949TS8: Description1MX4 STANDARD SRAM, 8ns, PDSO44, TSOP2-44; Categorystorage storage; File Size303KB，10 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM6949TS8 Overview

1MX4 STANDARD SRAM, 8ns, PDSO44, TSOP2-44

MCM6949TS8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP44,.46,32
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	8 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	18.41 mm
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.005 A
Minimum standby current	3 V
Maximum slew rate	0.175 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

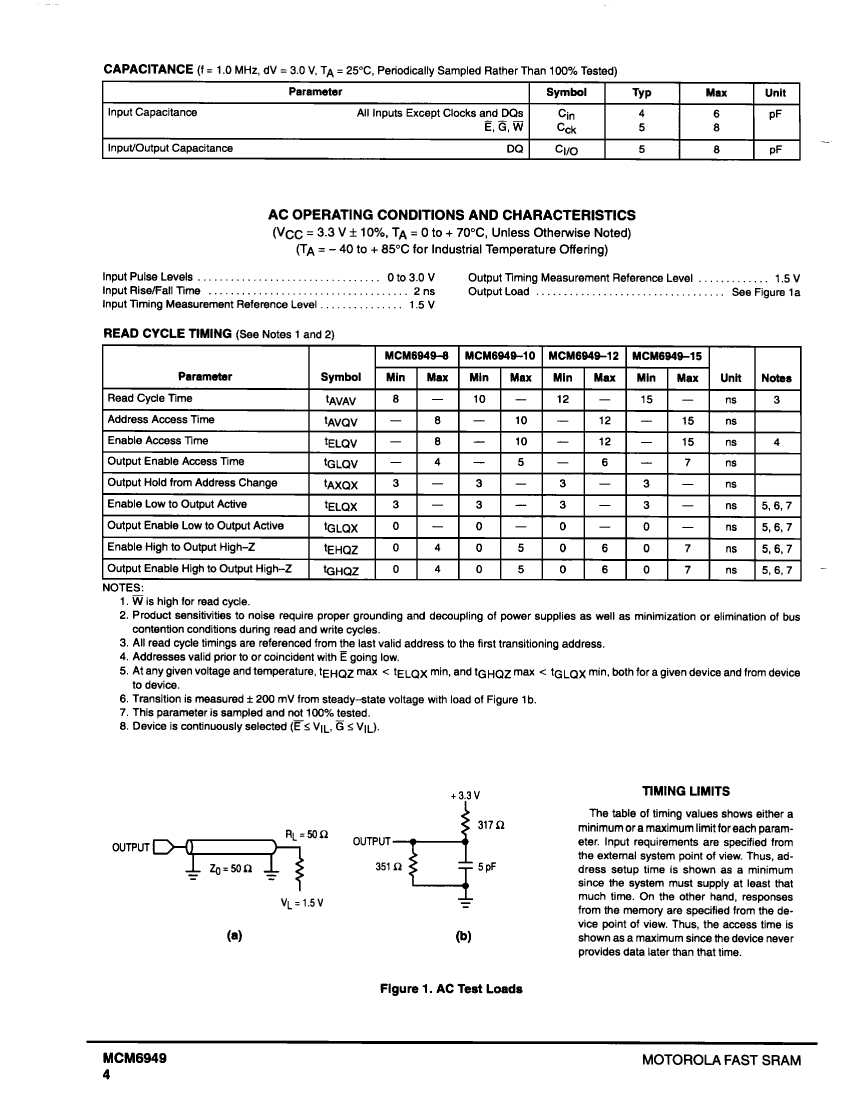

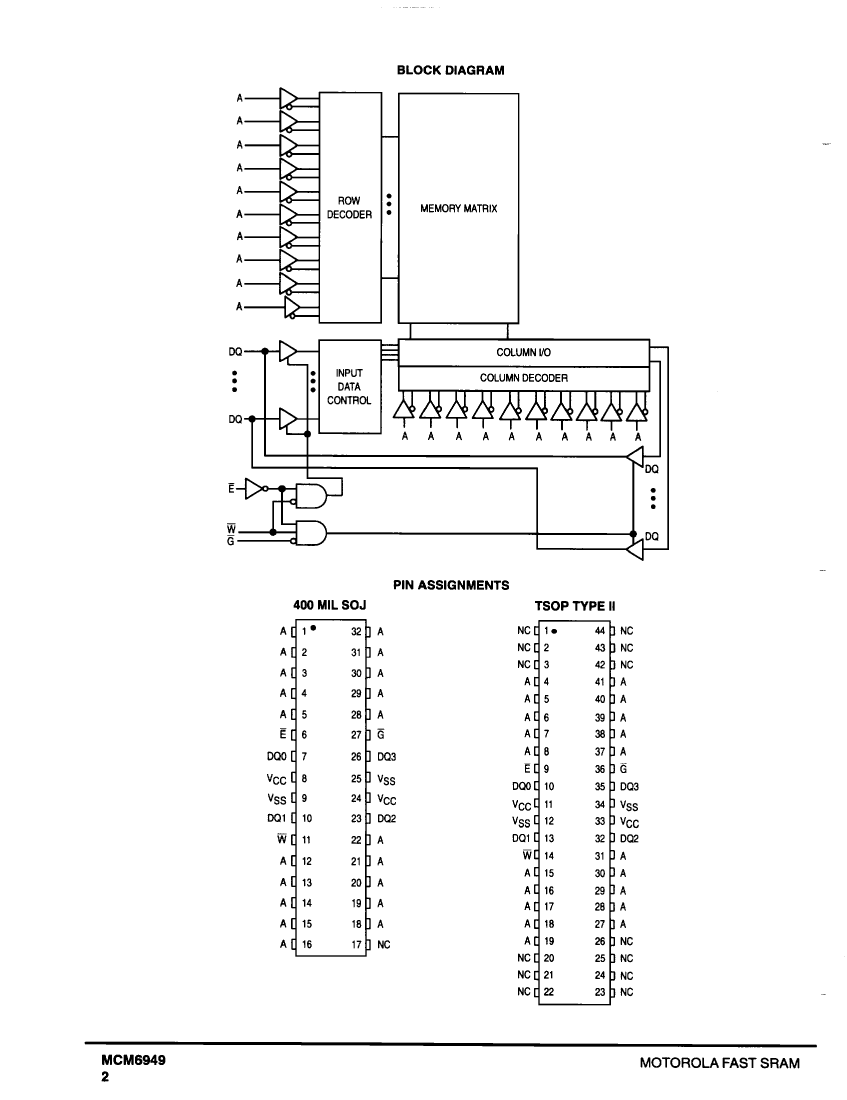

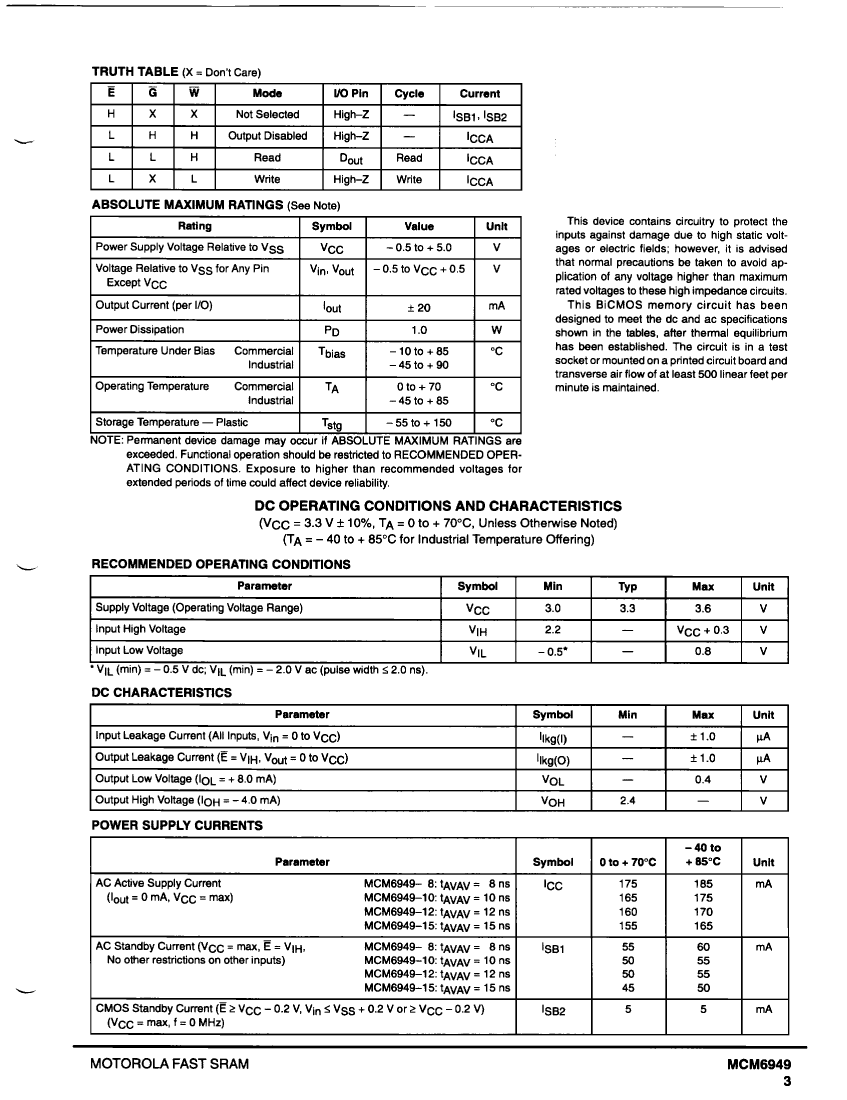

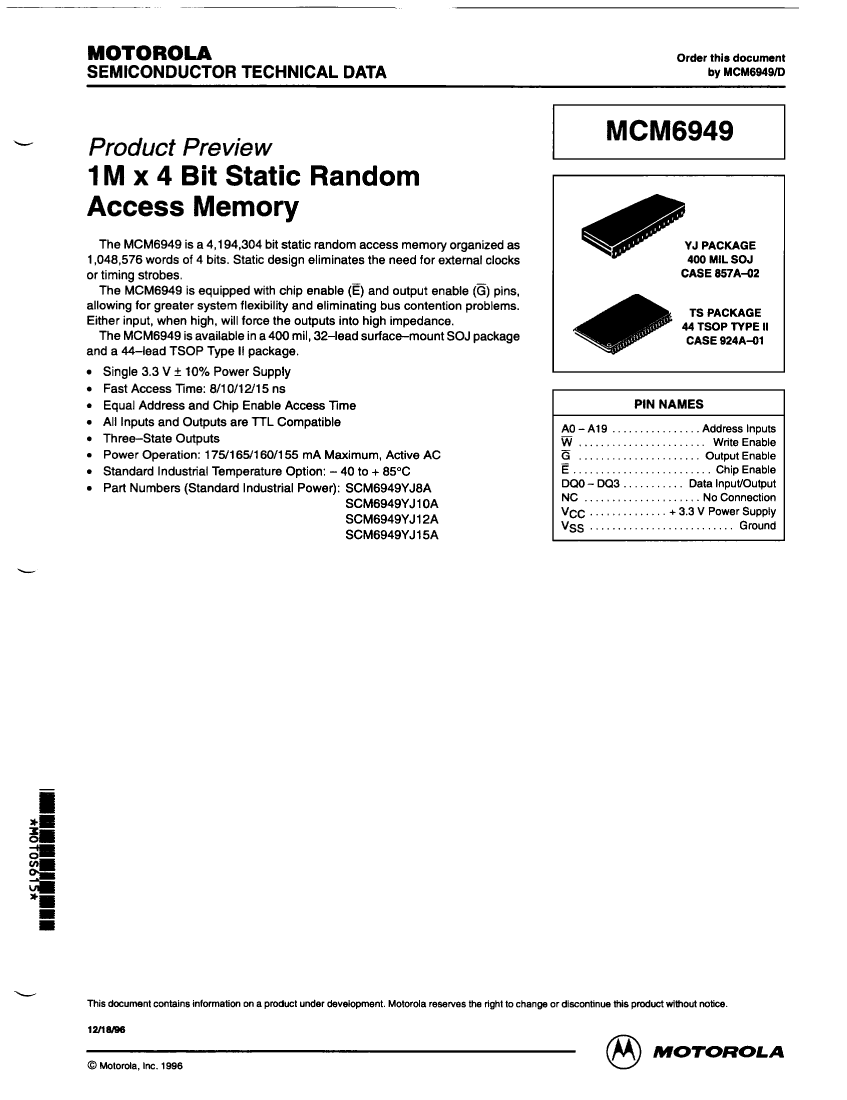

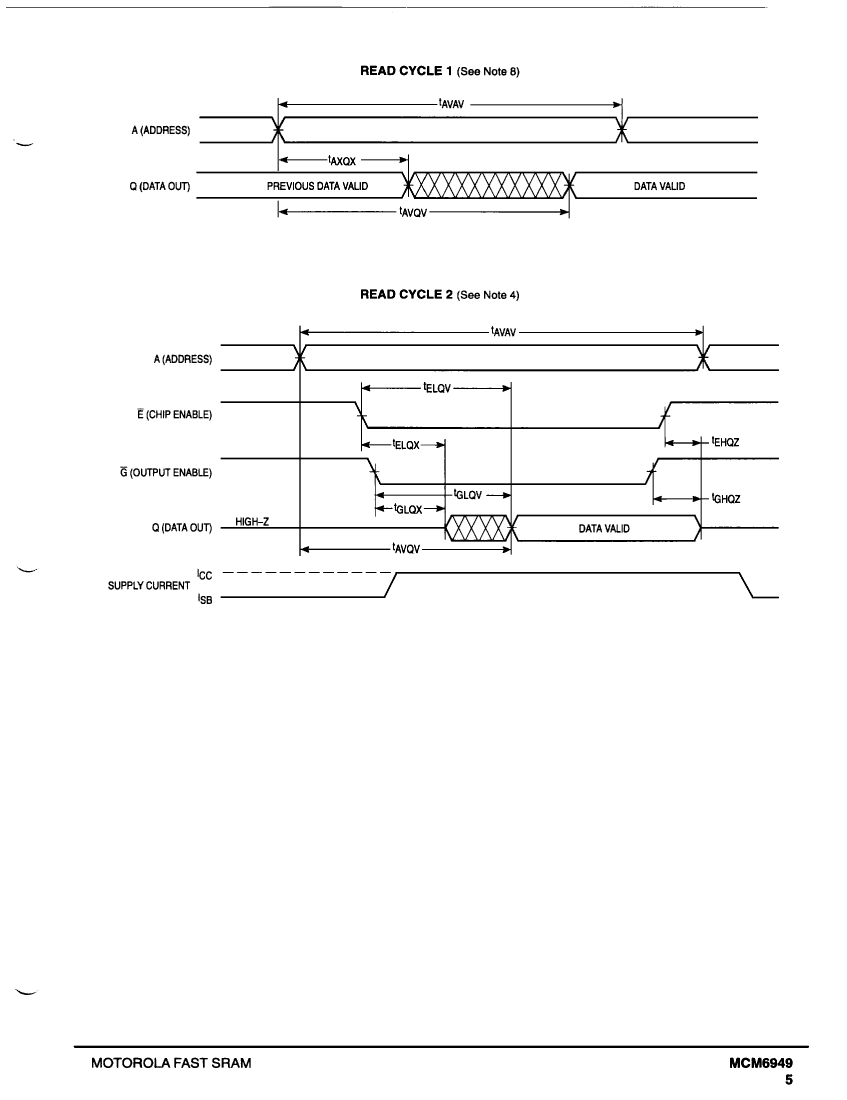

Preview

Download Datasheet

View All

MCM6949TS8 Related Products

	MCM6949TS8	SCM6949YJ8A	SCM6949YJ8AR	SCM6949TS8A
Description	1MX4 STANDARD SRAM, 8ns, PDSO44, TSOP2-44	1MX4 STANDARD SRAM, 8ns, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 1MX4, 8ns, BICMOS, PDSO32, 0.400 INCH, SOJ-32	1MX4 STANDARD SRAM, 8ns, PDSO44, TSOP2-44
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	TSOP2, TSOP44,.46,32	SOJ, SOJ32,.44	SOJ,	TSOP2, TSOP44,.46,32
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	8 ns	8 ns	8 ns	8 ns
JESD-30 code	R-PDSO-G44	R-PDSO-J32	R-PDSO-J32	R-PDSO-G44
length	18.41 mm	20.96 mm	20.96 mm	18.41 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	44	32	32	44
word count	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C
organize	1MX4	1MX4	1MX4	1MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	SOJ	SOJ	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3.76 mm	3.76 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	J BEND	J BEND	GULL WING
Terminal pitch	0.8 mm	1.27 mm	1.27 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Is it lead-free?	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	incompatible	-	incompatible
Parts packaging code	TSOP2	SOJ	-	TSOP2
Contacts	44	32	-	44
I/O type	COMMON	COMMON	-	COMMON
JESD-609 code	e0	e0	-	e0
Encapsulate equivalent code	TSOP44,.46,32	SOJ32,.44	-	TSOP44,.46,32
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	3.3 V	3.3 V	-	3.3 V
Maximum standby current	0.005 A	0.005 A	-	0.005 A
Minimum standby current	3 V	3 V	-	3 V
Maximum slew rate	0.175 mA	0.185 mA	-	0.185 mA
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
