SPICE MODELS: DF005S DF01S DF02S DF04S DF06S DF08S DF10S
DF005S - DF10S
1.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE
RECTIFIER
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Glass Passivated Die Construction
Diffused Junction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Surface Mount Application
UL Listed Under Recognized Component Index, File
Number E94661
Lead Free Finish, RoHS Compliant (Note 3)
Dim
DF-S
Min
7.40
6.20
0.22
0.076
—
1.02
8.13
2.40
5.00
1.00
Max
7.90
6.50
0.30
0.33
10.40
1.53
8.51
2.60
5.20
1.20
A
B
C
D
E
G
H
J
K
L
L
G
Mechanical Data
Case: DF-S
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Matte Tin. Solderable per
MIL-STD-202, Method 208
Polarity: As marked on Case
Marking: Type Number, See Page 3
Weight: 0.38 grams (approximate)
A B
D E
H
J
K
C
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Rectified Current
@ T
A
= 40°C
Non-Repetitive Peak Forward Surge Current, 8.3 ms
single half-sine-wave superimposed on rated load
(JEDEC method)
Forward Voltage (per element)
Peak Reverse Current at Rated
DC Blocking Voltage (per element)
I
2
t Rating for Fusing (t<8.3ms)
Typical Total Capacitance (per element) (Note 1)
Typical Thermal Resistance, Junction to Ambient
(Note 2)
Operating and Storage Temperature Range
Notes:
@ T
A
= 25°C unless otherwise specified
Symbol
V
RMM
V
RWM
V
R
V
RMS
I
O
I
FSM
V
FM
I
RM
I
2
t
C
T
R
qJA
T
j
, T
STG
DF
005S
50
35
DF
01S
100
70
DF
02S
200
140
DF
04S
400
280
1.0
50
1.1
10
500
10.4
25
40
-65 to +150
DF
06S
600
420
DF
08S
800
560
DF
10S
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
°C/W
°C
@ I
F
= 1.0A
@ T
A
= 25°C
@ T
A
= 125°C
1. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0V DC.
2. Thermal resistance, junction to ambient, measured on PC board with 5.0mm
2
(0.03mm thick) land areas.
3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
DS17001 Rev. 10 - 2
1 of 3
www.diodes.com
DF005S-DF10S
ã
Diodes Incorporated
60 Hz Resistive or
Inductive load
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.0
I
(AV)
, AVERAGE FORWARD CURRENT (A)
10
1.0
0.5
0.1
0
40
60
80
100
120
140
0.01
0.4
0.6
0.8
1.0
1.2
1.4
T
A
, AMBIENT TEMPERATURE (°C)

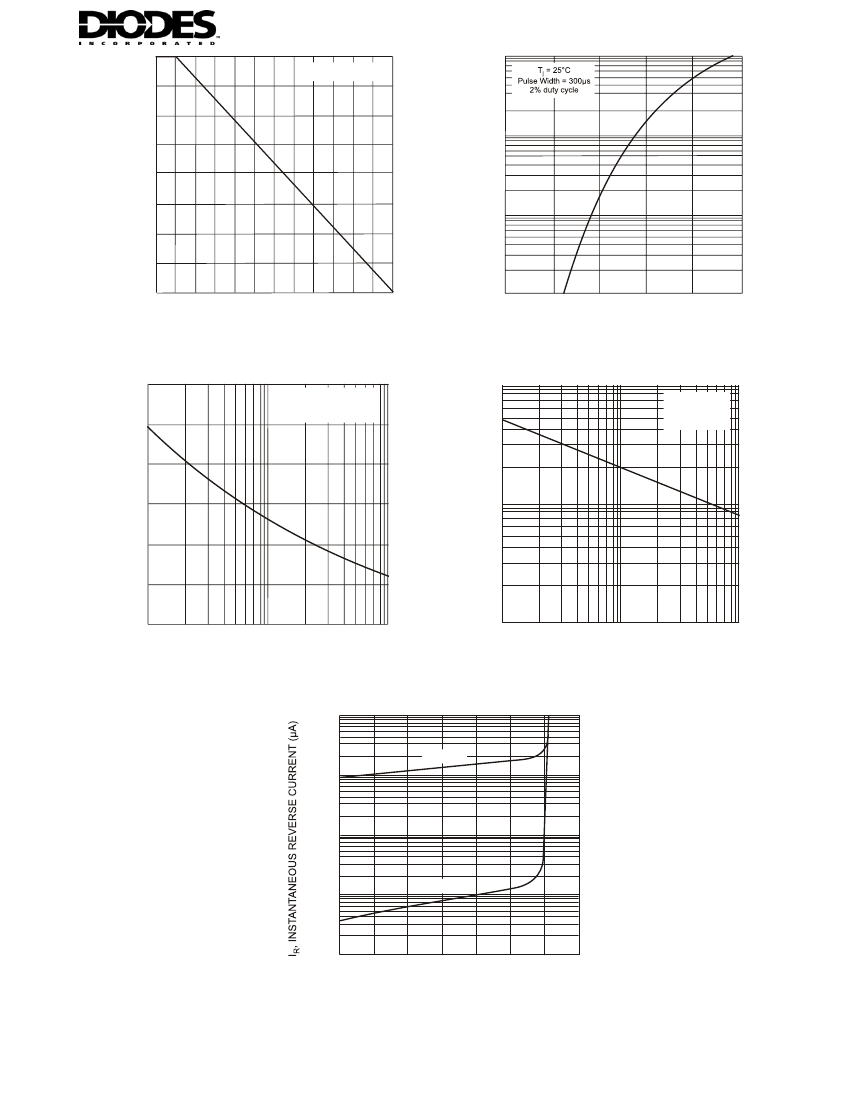

Fig. 1 Output Current Derating Curve
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typ Forward Characteristics (per element)
100
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
Single half-sine-Wave
(JEDEC Method)
50
C
T
, CAPACITANCE (pF)
T
j
= 25°c
f = 1.0 Mhz
V
sig
= 50 mV p-p
40
30
10
20
10
0
1
10
100
1
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typ Junction Capacitance (per element)
T
j
= 125°C
10
1.0
0.1
T
j
= 25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typ Reverse Characteristics (per element)
DS17001 Rev. 10 - 2
2 of 3
www.diodes.com
DF005S-DF10S
Ordering Information
Device*
DFxS
DFxS-T
(Notes 4 & 5)
Packaging
DF-S
DF-S
Shipping
50 Per Tube
1500/Tape & Reel, 13-inch
* x = Device type, e.g. DF005S or DF10S, etc.
Notes:
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
DFxxxS
XXXX
= Manufacturers’ code marking
DFxxxS = Product type marking code, ex: DF10S
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
DS17001 Rev. 10 - 2
3 of 3
www.diodes.com
