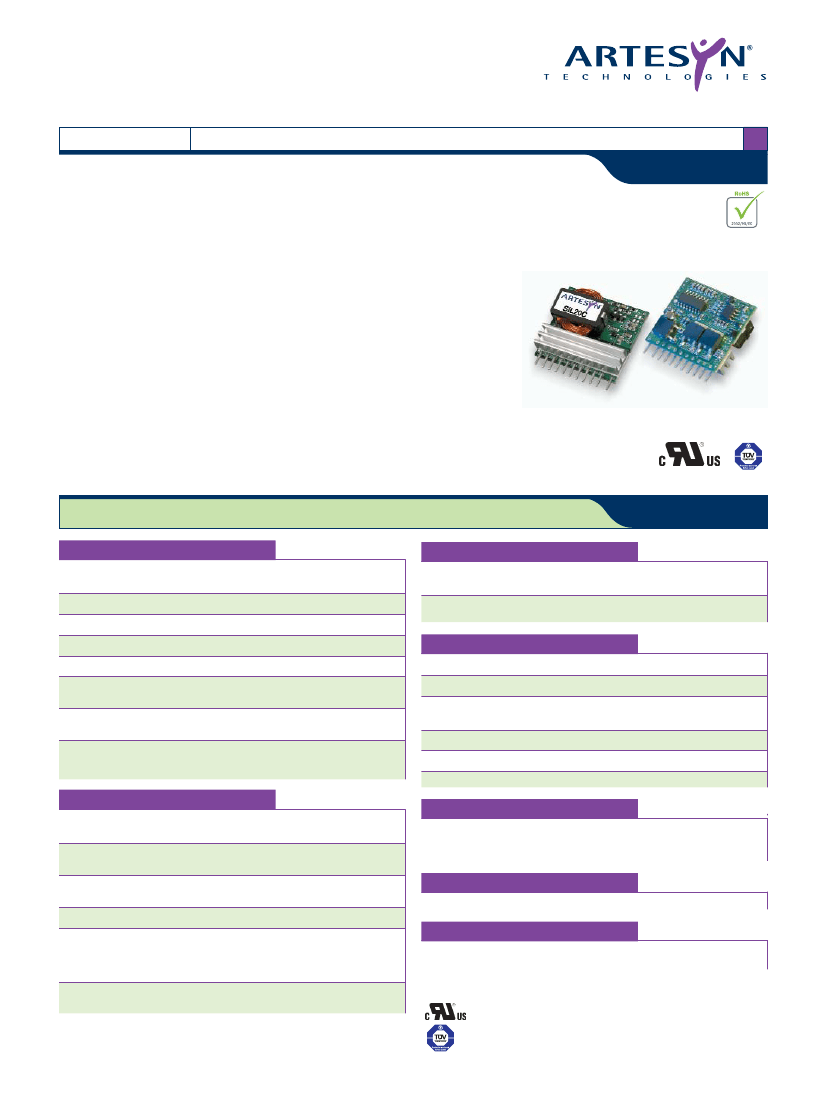

SIL20C Series
DC-DC CONVERTERS
•
•
•
•
•
•
C Class Non-isolated
5 Vin and 12 Vin single output
1
NEW Product
•
•
20 A current rating
Input voltage range: 4.5 Vdc to 5.5 Vdc or 10.2 Vdc to 13.8 Vdc
Output voltage range: 0.9 Vdc to 5.0 Vdc
Industry leading value
•
Cost optimized design
Excellent transient response
Output Voltage adjustability
•
Pathway for future upgrades
•
Supports silicon voltage migration
•
Resulting in reduced design-in and qualification time
Designed in reliability: MTBF of >7 million hrs
per Telcordia SR-332
Available RoHS compliant
The SIL20C Series is a new high density open frame non-isolated converter for space-sensitive
applications. Each model has a wide input range (4.5 Vdc to 5.5 Vdc or 10.2 Vdc to 13.8 Vdc)
and offer a wide 0.9 Vdc to 3.3 Vdc/5 Vdc output voltage range with a 20 A load. An external
resistor adjusts the output voltage from its pre-set value of 0.9 Vdc to any value up to the
maximum allowed value for that model. Typical efficiencies are 87% for the 5 V input version
and 91% for the 12 V input version at full load conditions. The SIL20C series offers remote
ON/OFF and overcurrent protection as standard. With full international safety approval including
EN60950 and
UL/cUL60950
, the SIL20C reduces compliance costs and time to market.
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
2 YEAR WARRANTY
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
(See Note 5)
5 V input models
12 V input models
0.9-3.3 Vdc
0.9-5.0 Vdc
±2.5%
±0.2% max.
±1.3% max.
0 A/20 A
5 V input models
12 V input models
(See Note 1)
Deviation
3% max.
1% max.
See table
100 mV
200 µs recovery to
within regulation band
INPUT SPECIFICATIONS (CONTD.)
Turn ON threshold
Turn OFF threshold
5 Vin
12 Vin
5 Vin
12 Vin
4.5 Vdc
9.0 Vdc
4.3 Vdc
7.5 Vdc
Output setpoint accuracy With 1.0% trim resistors
Line regulation
Load regulation
Min/max load
Overshoot
(at turn on)
Ripple and noise
5 Hz to 20 MHz
Transient response
(See Note 2)
Low line to high line
GENERAL SPECIFICATIONS
Efficiency
Switching frequency
Approvals and
standards
Material flammability
Weight
MTBF
Telcordia SR-332
Fixed
(See Note 4)
See Table
275 kHz typ.
TÜV Product Services
IEC60950, UL/cUL60950
UL94V-0
14.2 g (0.5 oz)
7,963,574 hours
INPUT SPECIFICATIONS
Input voltage range
Input current
Input current (max.)
(See Note 3)
Input reflected ripple
Remote ON/OFF
Logic compatibility
ON
OFF
Start-up time
(See Note 9)
Power up
Remote ON/OFF
5 V input model
12 V input model
Minimum load
Remote OFF
5 V input model
12 V input model
(See Note 4)
4.5-5.5 Vdc
10.2-13.8 Vdc
65 mA
20 mA
15 A @ lo max.
11 A @ lo max.
200 mA
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 10)
Operating ambient,
temperature
Non-operating
0 ºC to +80 ºC
-40 ºC to +125 ºC
PROTECTION
Short-circuit protection
RECOMMENDED SYSTEM CAPACITANCE
Hiccup, non-latching
Active high
>2.4 Vdc
<0.8 Vdc
<20 ms
<20 ms
Input capacitance
Output capacitance
(See Note 11)
(See Note 11)
270 µF/20 mΩ esr max.
680 µF/10 mΩ esr max.
International Safety Standard Approvals
UL/cUL CAN/CSA 22.2 No. E139421
UL60950 file No. E139421
TÜV Product Service (EN60950) Certificate No. B 04 08 19870 228
CB report and certificate to US/6415C/UL
File Name: sil20c.pdf Rev (01): 13 Dec 2005
SIL20C Series
DC-DC CONVERTERS
C Class Non-isolated
OUTPUT
POWER
(MAX.)
66 W
100 W
INPUT
VOLTAGE
4.5-5.5 Vdc
10.2-13.8 Vdc
OVP
N/A
N/A
5 Vin and 12 Vin single output
2
NEW Product
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
OUTPUT
CURRENT
VOLTAGE
(12)
(MIN.)
0.9-3.3 Vdc
0.9-5.0 Vdc
0A
0A
OUTPUT
CURRENT
(MAX.)
20 A
20 A
MAXIMUM
LOAD
(TYP.)
87%
91%
REGULATION
LINE
±0.2%
±0.2%
LOAD
±1.3%
±1.3%
MODEL
NUMBER
(8,13,14,15)
SIL20C-05SADJ-VJ
SIL20C-12SADJ-VJ
Part Number System with Options
SIL20C-12SADJ-VJ
Packaging Options
J = Pb-free (RoHS 6/6 compliant)
(15)
Mounting Option
V = Vertical Mount
H = Horizontal Mount
Number of Outputs
SADJ = Single Adjustable Output
Input Voltage
05 = 4.5 Vdc to 5.5 Vdc
12 = 10.2 Vdc to 13.8 Vdc
Output Voltage Adjustment of the SIL20C-12SADJ Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SIL20C-12SADJ series. It is no longer necessary to purchase a
variety of modules in order to cover different output voltages. The output
voltage can be trimmed in a range of 0.9 Vdc to 5.0 Vdc. When the SIL20C-
12SADJ series converter leaves the factory the output has been adjusted to
the default voltage of 0.9 V
Product Family
SIL = Single in Line
Rated Output Current
20 = 20 Amps
Performance
C = Cost Optimised
Notes
1
2
3
4
5
Measured as per recommended set-up. 2 x Cin = 270 µF (20 mΩ
esr max, Cout = 680 µF (10 mΩ esr max).
di/dt =
10
A/µs, Vin = Nom, Tc =
25
°C, load change = 0.50 lo max.
to 0.75 lo max. and 0.75 lo max. to 0.50 lo max.
External input fusing is recommended.
Measured with external filter. See Application Note 131 for details.
Uses external resistor from trim pin to output ground. Min value =
485
Ω
for 5 V model, 280
Ω
for 12 V model. See Application Note
131 for details.
Signal line assumed <3 m in length
This product is only for inclusion by professional installers within
other equipment and must not be operated as a stand alone
product.
The standard unit with the suffix '-V' is for vertical mounting. To
order a unit with horizontal mounting, please add the suffix '-H' to
the model number, e.g. SIL20C-05SADJ-HJ.
Notes Cond.
9
Power-up is the time from application of dc input to Power Good
enabled. Remote ON/OFF is from ON/OFF asserted high to power
good enabled.
See Application Note 131 for operation above 50 ºC.
See Application Note 131 for ripple current requirements.
These models have a wide trim output. 5 Vin has an output of
0.9 Vdc to 3.3 Vdc and 12 Vin has an output of 0.9 Vdc to 5 Vdc. An
external resistor adjusts the output voltage.
To order a unit with a pin length of 0.150”, please add suffix ‘P4’ to
the model number, e.g. SIL20C-05SADJ-HP4J.
TSE RoHS 5/6 (non Pb-free) compliant versions may be available on
special request, please contact your local sales representative for
details.
NOTICE: Some models do not support all options. Please contact
your local Artesyn representative or use the on-line model number
search tool at http://www.artesyn.com/powergroup/products.htm to
find a suitable alternative.
10
11
12
13
14
15
6
7
8
Ripple and Noise Specification
Model
5 V input models
12 V input models
Output
Voltage
0.9-2.5 Vdc
3.3 Vdc
0.9-2.5 Vdc
3.3-5 Vdc
Pk - Pk
30 mV
40 mV
50 mV
50 mV
RMS
15 mV
15 mV
20 mV
20 mV
File Name: sil20c.pdf Rev (01): 13 Dec 2005
SIL20C Series
DC-DC CONVERTERS
C Class Non-isolated
5 Vin and 12 Vin single output
3
NEW Product
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
0.48 Max
(12.2)
1.20
(30.5)
1.100
(27.94)
0.120 (3.05)
13 Places
0.15
(3.7)
0.025
±0.001
(0.64) Typ
±0.025
1.14 Max
(29.0)
0.050
2X (1.27)
PIN 1
0.050
(1.27)
0.100 (2.54)
9 Places
0.150
(3.81)
1.050
(26.67)
0.48 max
(12.2 max)
0.15
(3.7)
1.14 max
(29.0 max)
0.050
(1.27)
0.150
(3.81)
0.100
(2.54) 9 Places
1.050
(26.67)
0.48
±0.025
(12.1
±0.6)
1.000
2x (25.40)
1.10
(27.9)
0.29
(7.4) Max
0.062
(1.57) Ref
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
6
7
8
9
10
11
12
13
FUNCTION
Vout
Vout
Vout
Trim
PIN 11
All dimensions in inches (mm)
General tolerance
±0.015in
(±0.40mm)
except where specified otherwise
0.150
(3.81)

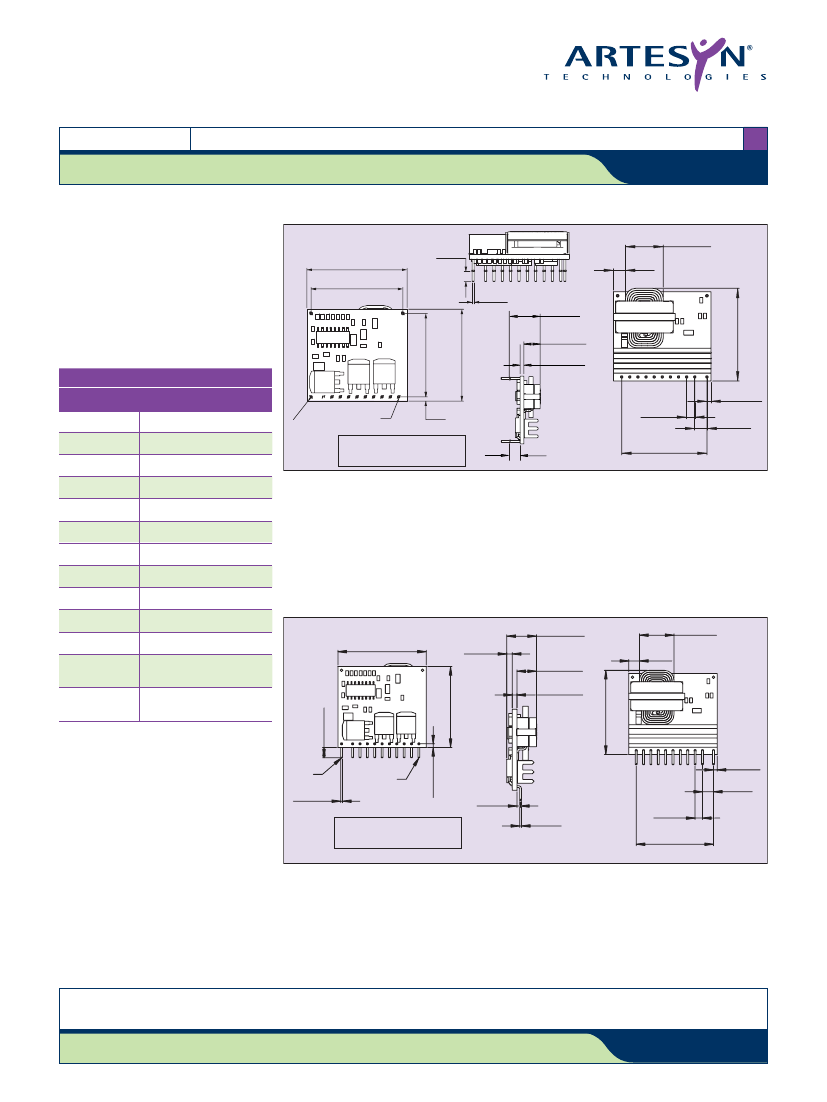

Figure 1: Mechanical Drawing - Horizontal Mount Version
Remote ON/OFF
Power Good
Ground
Ground
Reserved
Vin
Vin
Mechanical support
(horizontal version only)
0.140
(3.56) 11 Places
1.10
(27.9)
0.45 max
(11.4 max)
1.20
(30.5)
0.10 max
(2.5 max)
0.29 max
(7.4 max)
0.062
(1.57) Ref
Mechanical support
(horizontal version only)
Pin 11
Pin 1
0.025
±0.001
(0.64) Typ
±0.025
0.050
(1.27) Ref
0.050
(1.27) Typ
All dimensions in inches (mm)
General tolerance
±0.015in
(±0.40mm)
except where specified otherwise
0.025
±0.001
(0.64) Typ
±0.025
Figure 2: Mechanical Drawing - Vertical Mount Version
Datasheet © Artesyn Technologies® 2005
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
Application Note
Longform Data Sheet
www.artesyn.com
File Name: sil20c.pdf Rev (01): 13 Dec 2005
