SMT30C Series
DC-DC CONVERTERS
•
•
•
•
•
•
C Class Non-isolated
12 Vin single output
1
NEW Product
•
•
30 A current rating
Input voltage range: 10.2 Vdc - 13.8 Vdc
Output voltage range: 0.9 Vdc - 5.0 Vdc
Industry leading value
•
Cost optimized design
Excellent transient response
Output voltage adjustability
•
Pathway for future upgrades
•
Supports silicon voltage migration
•
Resulting in reduced design-in and qualification time
Designed in reliability: MTBF of > 4 million hours
per Telcordia SR-332
Available RoHS compliant

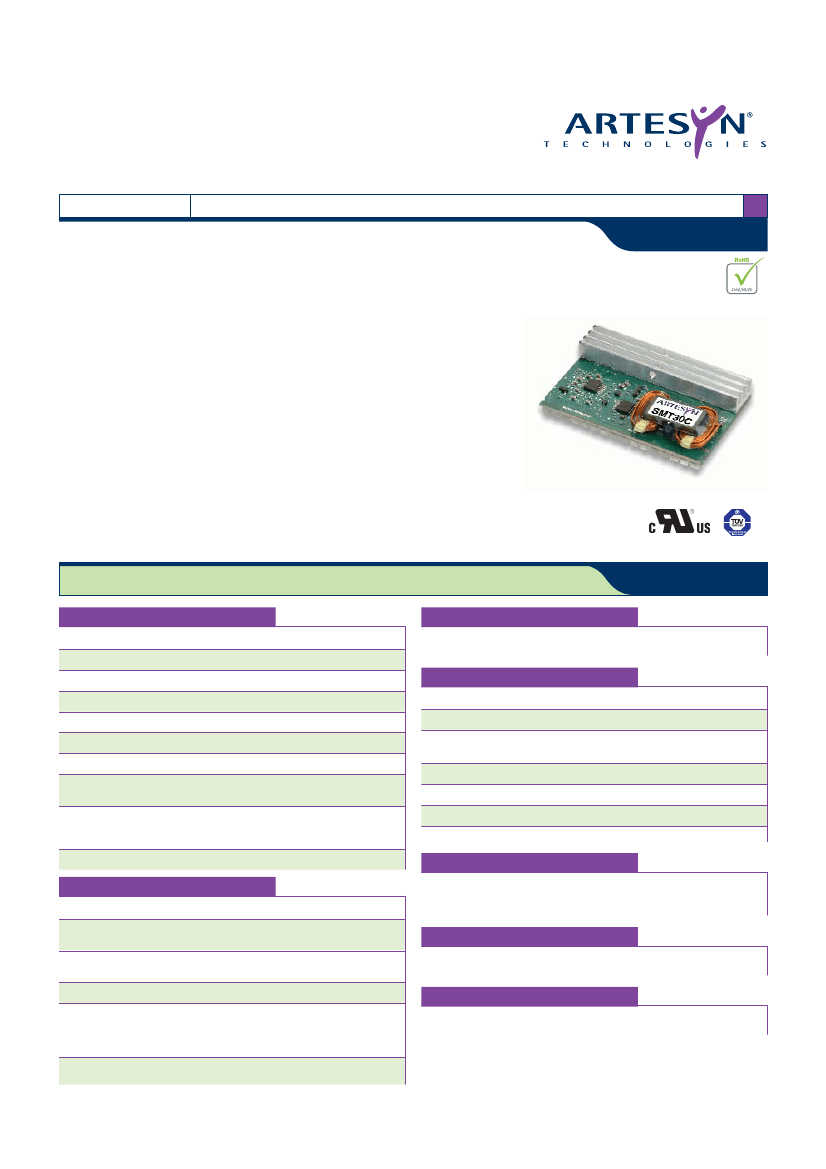

The SMT30C series is a new high density open-frame, non-isolated converter for space
sensitive applications. SMT30C has a wide input range of 10.2 Vdc to 13.8 Vdc and offers a
wide 0.9 Vdc to 5.0 Vdc output voltage range with a 30 A load. An external resistor adjusts the
output voltage from its pre-set value of 0.9 V to any value up to the 5 V maximum. Typical
efficiency is 91%. The series offers remote ON/OFF and over-current protection as standard.
With full international safety approvals including EN60950 and Ul/cUL60950, the SMT30C
reduces compliance costs and time to market.
All specifications are typical at nominal input Vin = 12 V, full load at 25 °C unless otherwise stated
2 YEAR WARRANTY
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
(See Note 1)
0.9-5.0 Vdc
±3%
±0.2% max.
±1.0% max.
0 A/30 A
At turn-on
At turn-off
(See Note 2)
1.0% max.
100 mV max.
50 mV pk-pk
15 mV rms
75 mV max. deviation
150 µs recovery to
within regulation band
Full load
±10%
INPUT SPECIFICATIONS (CONTD.)
Turn ON threshold
Turn OFF threshold
GENERAL SPECIFICATIONS
Efficiency
Switching frequency
Approvals and
standards
Material flammability
Weight
Coplanarity
MTBF
Telcordia SR-332
Fixed
(See Note 7)
91% typ.
300 kHz typ.
TÜV Product Services
IEC60950, UL/cUL60950
UL94V-0
28.3 g (1 oz)
150 µm
4,456,655 hours
9.0 Vdc typ.
7.6 Vdc typ.
Output setpoint accuracy 1.0% trim resistors
Line regulation
Load regulation
Min/max load
Overshoot
Undershoot
Ripple and noise
5 Hz to 20 MHz
Transient response
(See Note 3)
Current share
INPUT SPECIFICATIONS
Input voltage range
Input current
Input current (max.)
Input reflected ripple
Remote ON/OFF
Logic compatibility
ON
OFF
Start-up time
(See Note 5)
Power-up
Remote ON/OFF
Nominal 12 V
Minimum load
Remote OFF
(See Note 4)
(See Note 2)
Low line to high line
Full load to min. load
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 8)
Operating ambient,
temperature
Non-operating
0 ºC to +80 ºC
-40 ºC to +125 ºC
10.2-13.8 Vdc
230 mA
30 mA
13.8 A max. @ Io max.
and Vin = 10.8 V
150 mA (pk-pk)
Positive logic
>2.4 Vdc
<0.8 Vdc
<30 ms
<30 ms
PROTECTION
Short-circuit
Over-temperature
Foldback, non-latching
Hiccup, non-latching
RECOMMENDED SYSTEM CAPACITANCE
Input capacitance
Output capacitance
(See Note 9)
270 µF/20 mΩ ESR max.
(See Note 9) 2 x 680 µF/10 mΩ ESR max.
File Name: smt30c.pdf Rev (04): 16 Dec 2005
SMT30C Series
DC-DC CONVERTERS
C Class Non-isolated
OUTPUT
POWER
(MAX.)
150 W
INPUT
VOLTAGE
10.2-13.8 Vdc
OUTPUT
VOLTAGE
0.9-5.0 Vdc
OUTPUT
CURRENT
(MIN.)
0A
12 Vin single output
2
NEW Product
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
CURRENT
(MAX.)
30 A
EFFICIENCY
(TYP.)
91%
REGULATION
LINE
±0.2%
LOAD
±1.0%
MODEL
NUMBER
(11,12)
SMT30C-12SADJJ
Part Number System with Options
SMT30C-12SADJJ
Packaging Options
(11)
J = Pb-free (RoHS 6/6 compliant)
Product Family
SMT = Surface Mount
Rated Output Current
30 = 30 A
Performance
C = Cost Optimized
Number of Outputs
SADJ = Single Adjustable Output
Input Voltage
12 = 10.2 Vdc to 13.8 Vdc
Output Voltage Adjustment of the SMT30C Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SMT30C. It is no longer necessary to purchase a variety of modules
in order to cover different output voltages. The output voltage can be trimmed
in a range of 0.9 Vdc to 5.0 Vdc. When the SMT30C converter leaves the
factory the output has been adjusted to the default voltage of 0.9 V.
Notes
Uses external resistor from TRIM to ground. See Application Note 170
for details.
2
Measured with external filter. See Application Note 170 for details.
3
di/dt = 10 A/µs, Vin = Nom, Tc = 25 ºC, load change = 0.50 lo max. to
0.75 lo max, and vice versa.
4
External input fusing recommended.
5
Power up is the time from application of dc input to POWER GOOD high.
Remote ON/OFF asserted high to POWER GOOD high.
6
Signal line assumed <3 m in length.
7
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
8
See Application Note 170 for operation above 50 ºC.
9
See Application Note 170 for more details.
10
For redundant current sharing applications that use ORing diodes to
separate the outputs, please add the suffix ‘-S’ to the part number, e.g.
SMT30C-12SADJ-SJ. Please refer to Application Note 170 for further
details.
11
TSE RoHS 5/6 (non Pb-free) compliant versions may be available on
special request, please contact your local sales representative for details.
12
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool
at http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
1
International Safety Standard Approvals
UL/cUL CAN/CSA 22.2 No. 60950
UL 60950 File No. E139421
TÜV Product Service (EN60950:2000)
Certificate No. B 04 08 19870 228
CB report and certificate to IEC60950-US/6415C/UL
File Name: smt30c.pdf Rev (04): 16 Dec 2005
SMT30C Series
DC-DC CONVERTERS
C Class Non-isolated

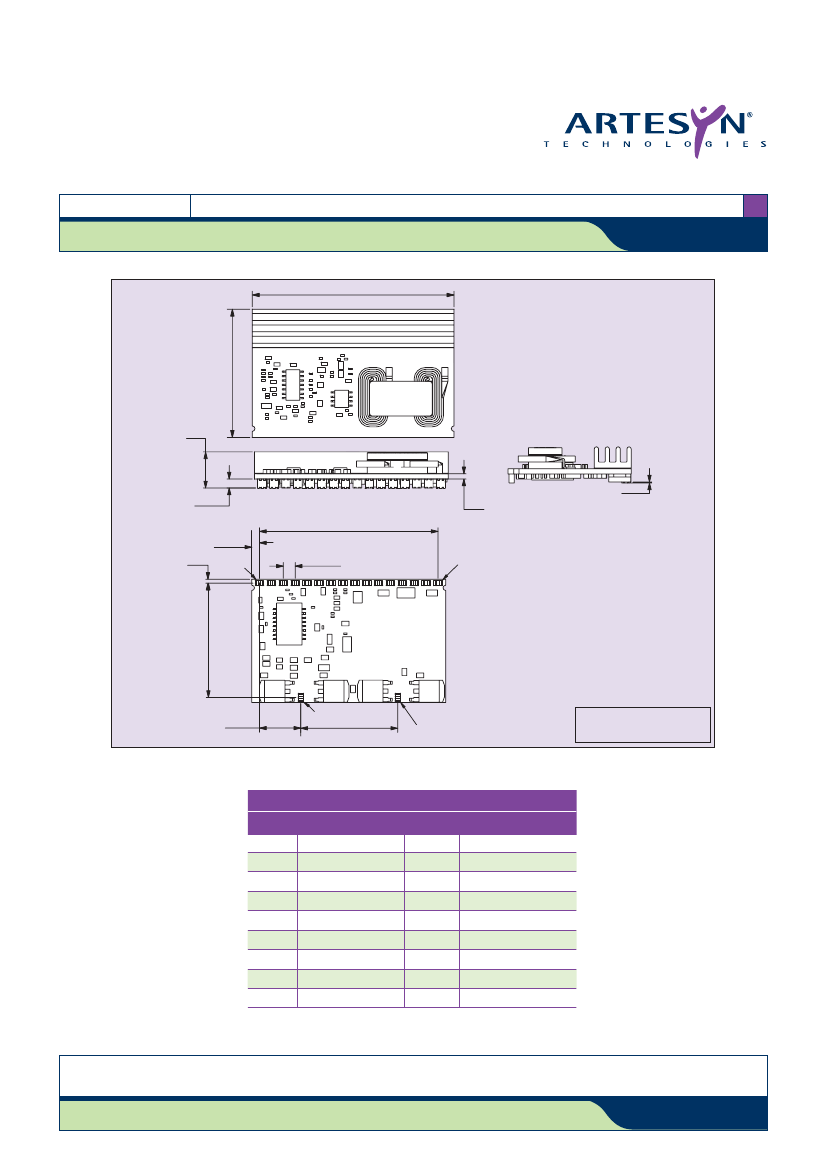

2.280
(57.91)
12 Vin single output
3
NEW Product
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
0.43
(10.8)
1.450
(36.83)
0.105
(2.67)
2.100
(53.34)
15 x 0.140
(3.56)
0.062
(1.57) PCB REF
0.090
(2.29)
PIN 1
Seating Plane
0.011
(0.27) Typ
0.045
(1.13)
PIN 16
2 x 1.345
(3417)
0.485
(12.33)
PIN 18
1.140
(28.96)
PIN 17
All dimensions in inches (mm)
All tolerance
±0.010in
(±0.25mm)
unless otherwise stated
PIN CONNECTIONS
PIN NO.
1
2
3
4
5
6
7
8
9
FUNCTION
Current Share
Trim
GND
GND
GND
Sense-
Sense+
Remote ON/OFF
Power Good
PIN NO.
10
11
12
13
14
15
16
17
18
FUNCTION
Vin
Vin
Vout
Vout
GND
Vout
GND
Mechanical Support
Mechanical Support
Datasheet © Artesyn Technologies® 2005
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. The information and specifications contained or described herein are subject to change in any manner at any time without notice. No rights under any patent
accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
Application Note
Longform Datasheet
www.artesyn.com
File Name: smt30c.pdf Rev (04): 16 Dec 2005
