TWIST TIES
1
NOTES:

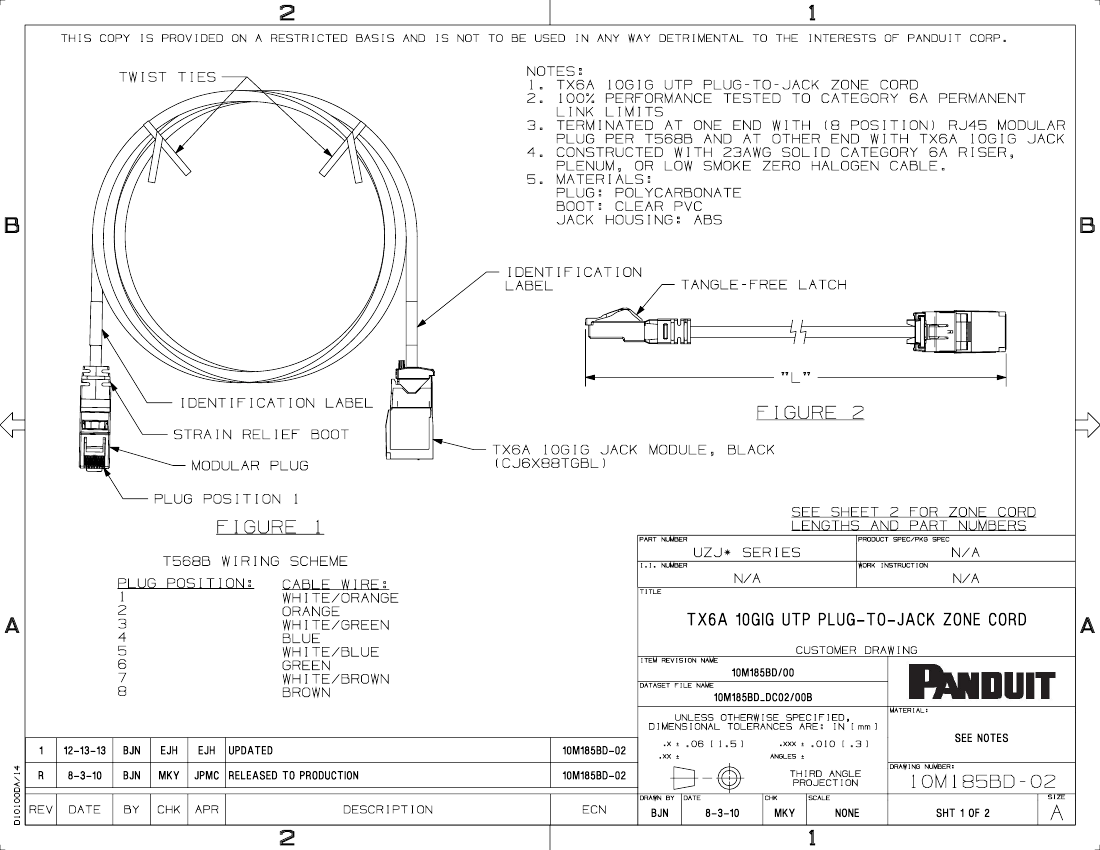

1. TX6A 10GIG UTP PLUG-TO-JACK ZONE CORD
2. 100% PERFORMANCE TESTED TO CATEGORY 6A PERMANENT
LINK LIMITS
3. TERMINATED AT ONE END WITH (8 POSITION) RJ45 MODULAR
PLUG PER T568B AND AT OTHER END WITH TX6A 10GIG JACK
4. CONSTRUCTED WITH 23AWG SOLID CATEGORY 6A RISER,
PLENUM, OR LOW SMOKE ZERO HALOGEN CABLE.
5. MATERIALS:
PLUG: POLYCARBONATE
BOOT: CLEAR PVC
JACK HOUSING: ABS
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
B
B
IDENTIFICATION
LABEL
TANGLE-FREE LATCH
R
"L"
IDENTIFICATION LABEL
STRAIN RELIEF BOOT
MODULAR PLUG
PLUG POSITION 1
TX6A 10GIG JACK MODULE, BLACK
(CJ6X88TGBL)
FIGURE 2
FIGURE 1
PART NUMBER
SEE SHEET 2 FOR ZONE CORD
LENGTHS AND PART NUMBERS
PRODUCT SPEC/PKG SPEC
T568B WIRING SCHEME
PLUG POSITION:
1
2
3
4
5
6
7
8
CABLE WIRE:
WHITE/ORANGE
ORANGE
WHITE/GREEN
BLUE
WHITE/BLUE
GREEN
WHITE/BROWN
BROWN
UZJ* SERIES
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6A
10GIG
UTP
PLUG-TO-JACK
ZONE
CORD
CUSTOMER DRAWING
ITEM REVISION NAME
A
10M185BD/00
DATASET FILE NAME
10M185BD_DC02/00B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
1
D10100DA/14
12-13-13
8-3-10
DATE
BJN
BJN
EJH
EJH
UPDATED
10M185BD-02
10M185BD-02
.X
.XX
.06 [1.5]
.XXX
ANGLES
.010 [.3]
DRAWING NUMBER:
SEE
NOTES
R
MKY
CHK
JPMC
RELEASED
TO
PRODUCTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
10M185BD-02
SIZE
REV
BY
APR
DESCRIPTION
ECN
BJN
8-3-10
MKY
NONE
SHT
1
OF
2
A
2
1
2

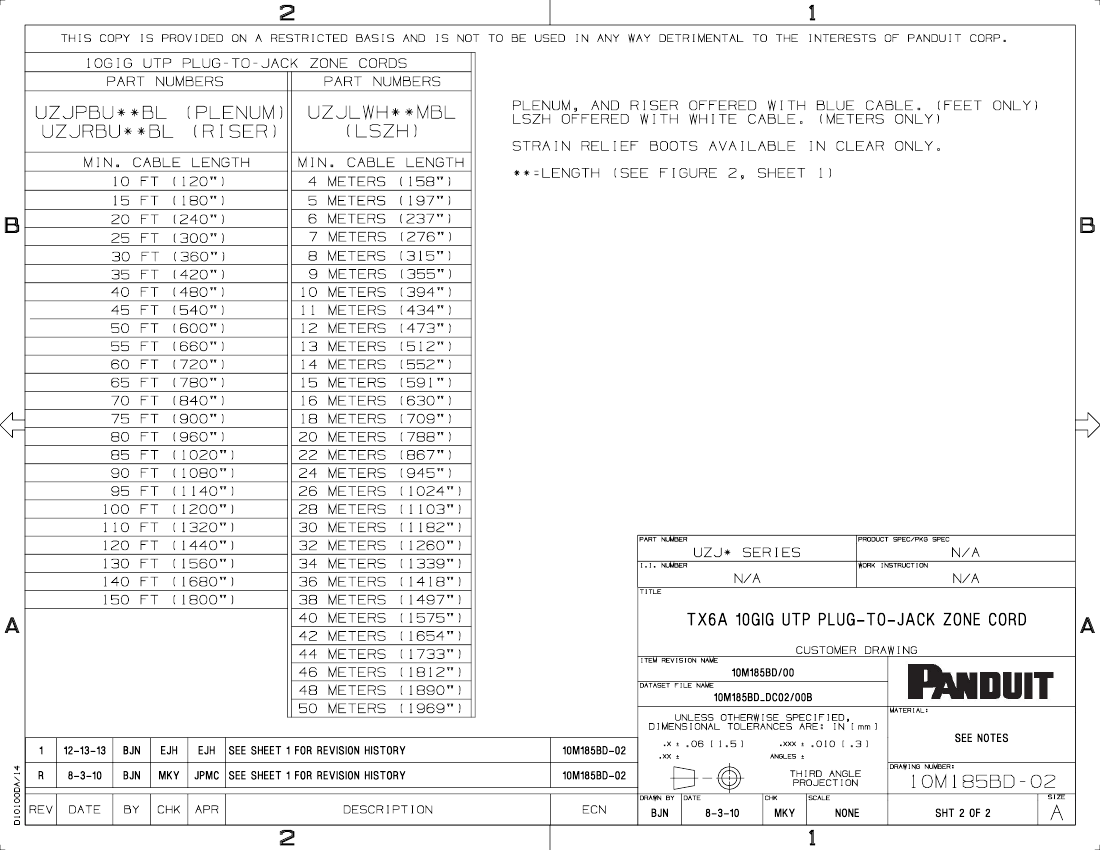

10GIG UTP PLUG-TO-JACK ZONE CORDS
PART NUMBERS
PART NUMBERS
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
UZJPBU**BL (PLENUM)
UZJRBU**BL (RISER)
MIN. CABLE LENGTH
10 FT (120")
15 FT (180")
UZJLWH**MBL
(LSZH)
MIN. CABLE LENGTH
4 METERS (158")
5 METERS (197")
6 METERS (237")
7 METERS (276")
8 METERS (315")
9 METERS (355")
10 METERS (394")
11 METERS (434")
12 METERS (473")
13 METERS (512")
14 METERS (552")
15 METERS (591")
16 METERS (630")
18 METERS (709")
20 METERS (788")
22 METERS (867")
24 METERS (945")
26 METERS (1024")
28 METERS (1103")
30 METERS (1182")
32 METERS (1260")
34 METERS (1339")
36 METERS (1418")
38 METERS (1497")
40 METERS (1575")
42 METERS (1654")
44 METERS (1733")
46 METERS (1812")
48 METERS (1890")
50 METERS (1969")
PLENUM, AND RISER OFFERED WITH BLUE CABLE. (FEET ONLY)
LSZH OFFERED WITH WHITE CABLE. (METERS ONLY)
STRAIN RELIEF BOOTS AVAILABLE IN CLEAR ONLY.
**=LENGTH (SEE FIGURE 2, SHEET 1)
B
20 FT (240")
25 FT (300")
30 FT (360")
35 FT (420")
40 FT (480")
45 FT (540")
50 FT (600")
55 FT (660")
60 FT (720")
65 FT (780")
70 FT (840")
75 FT (900")
80 FT (960")
85 FT (1020")
90 FT (1080")
95 FT (1140")
100 FT (1200")
110 FT (1320")
120 FT (1440")
130 FT (1560")
140 FT (1680")
150 FT (1800")
B
PART NUMBER
PRODUCT SPEC/PKG SPEC
UZJ* SERIES
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6A
10GIG
UTP
PLUG-TO-JACK
ZONE
CORD
CUSTOMER DRAWING
ITEM REVISION NAME
A
10M185BD/00
DATASET FILE NAME
10M185BD_DC02/00B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
1
D10100DA/14
12-13-13
8-3-10
DATE
BJN
BJN
EJH
EJH
SEE
SHEET
1
FOR
REVISION
HISTORY
10M185BD-02
10M185BD-02
.X
.XX
.06 [1.5]
.XXX
ANGLES
.010 [.3]
DRAWING NUMBER:
SEE
NOTES
R
MKY
CHK
JPMC
SEE
SHEET
1
FOR
REVISION
HISTORY
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
10M185BD-02
SIZE
REV
BY
APR
DESCRIPTION
ECN
BJN
8-3-10
MKY
NONE
SHT
2
OF
2
A
2
1
