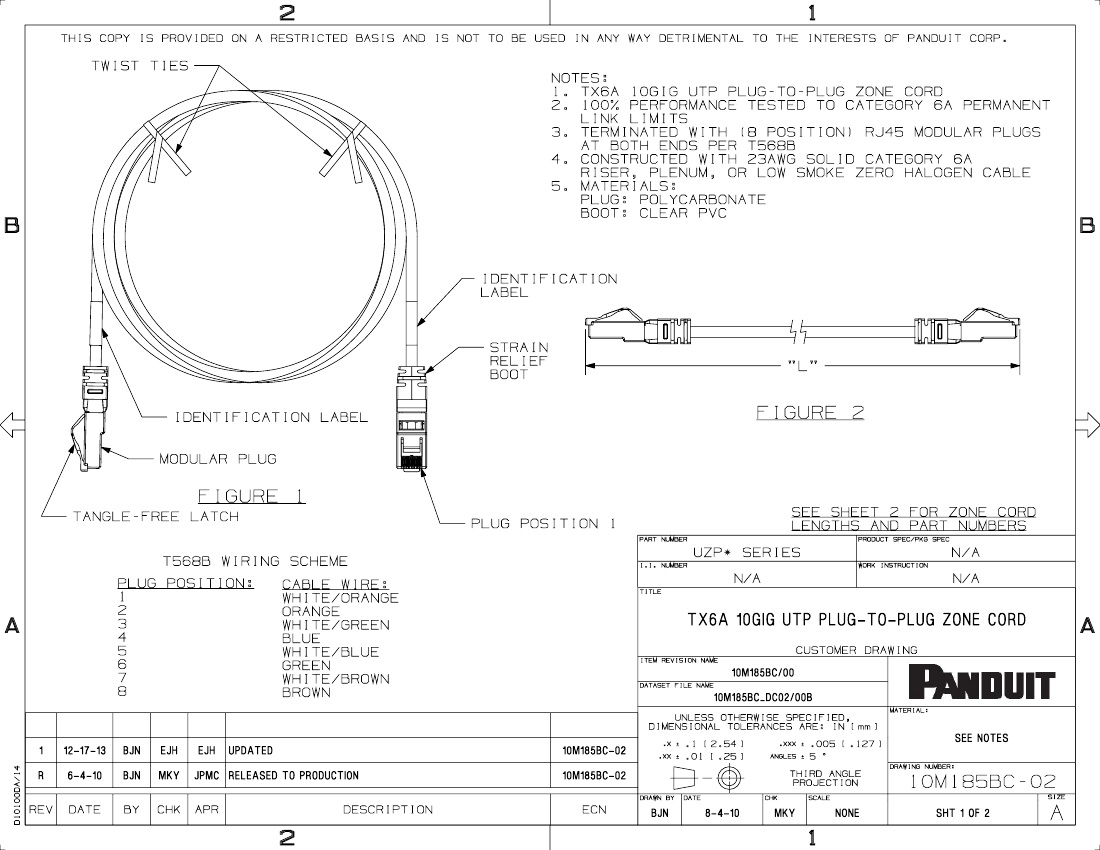

1. TX6A 10GIG UTP PLUG-TO-PLUG ZONE CORD
2. 100% PERFORMANCE TESTED TO CATEGORY 6A PERMANENT
LINK LIMITS
3. TERMINATED WITH (8 POSITION) RJ45 MODULAR PLUGS
AT BOTH ENDS PER T568B
4. CONSTRUCTED WITH 23AWG SOLID CATEGORY 6A
RISER, PLENUM, OR LOW SMOKE ZERO HALOGEN CABLE
5. MATERIALS:
PLUG: POLYCARBONATE
BOOT: CLEAR PVC
B
IDENTIFICATION
LABEL
STRAIN
RELIEF
BOOT
"L"
IDENTIFICATION LABEL
MODULAR PLUG
FIGURE 2
FIGURE 1
TANGLE-FREE LATCH
PLUG POSITION 1
PART NUMBER
SEE SHEET 2 FOR ZONE CORD
LENGTHS AND PART NUMBERS
PRODUCT SPEC/PKG SPEC
T568B WIRING SCHEME
PLUG POSITION:
1
2
3
4
5
6
7
8
CABLE WIRE:
WHITE/ORANGE
ORANGE
WHITE/GREEN
BLUE
WHITE/BLUE
GREEN
WHITE/BROWN
BROWN
UZP* SERIES
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6A
10GIG
UTP
PLUG-TO-PLUG
ZONE
CORD
CUSTOMER DRAWING
ITEM REVISION NAME
A
10M185BC/00
DATASET FILE NAME
10M185BC_DC02/00B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
1
D10100DA/14
12-17-13
6-4-10
DATE
BJN
BJN
EJH
EJH
UPDATED
10M185BC-02
10M185BC-02
.X
.XX
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
SEE
NOTES
R
MKY
CHK
JPMC
RELEASED
TO
PRODUCTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
10M185BC-02
SIZE
REV
BY
APR
DESCRIPTION
ECN
BJN
8-4-10
MKY
NONE
SHT
1
OF
2
A
2
1
2

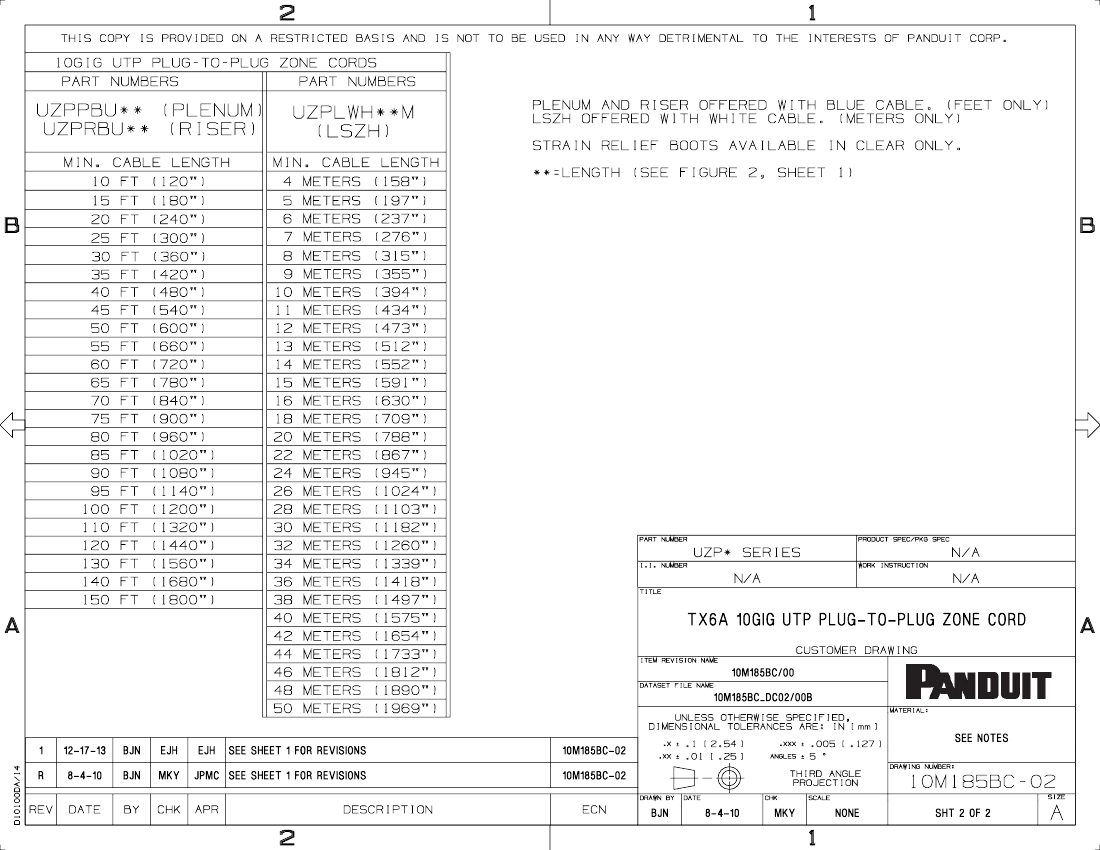

10GIG UTP PLUG-TO-PLUG ZONE CORDS
PART NUMBERS
PART NUMBERS
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
UZPPBU** (PLENUM)
UZPRBU** (RISER)
MIN. CABLE LENGTH
10 FT (120")
15 FT (180")
UZPLWH**M
(LSZH)
MIN. CABLE LENGTH
4 METERS (158")
5 METERS (197")
6 METERS (237")
7 METERS (276")
8 METERS (315")
9 METERS (355")
10 METERS (394")
11 METERS (434")
12 METERS (473")
13 METERS (512")
14 METERS (552")
15 METERS (591")
16 METERS (630")
18 METERS (709")
20 METERS (788")
22 METERS (867")
24 METERS (945")
26 METERS (1024")
28 METERS (1103")
30 METERS (1182")
32 METERS (1260")
34 METERS (1339")
36 METERS (1418")
38 METERS (1497")
40 METERS (1575")
42 METERS (1654")
44 METERS (1733")
46 METERS (1812")
48 METERS (1890")
50 METERS (1969")
PLENUM AND RISER OFFERED WITH BLUE CABLE. (FEET ONLY)
LSZH OFFERED WITH WHITE CABLE. (METERS ONLY)
STRAIN RELIEF BOOTS AVAILABLE IN CLEAR ONLY.
**=LENGTH (SEE FIGURE 2, SHEET 1)
B
20 FT (240")
25 FT (300")
30 FT (360")
35 FT (420")
40 FT (480")
45 FT (540")
50 FT (600")
55 FT (660")
60 FT (720")
65 FT (780")
70 FT (840")
75 FT (900")
80 FT (960")
85 FT (1020")
90 FT (1080")
95 FT (1140")
100 FT (1200")
110 FT (1320")
120 FT (1440")
130 FT (1560")
140 FT (1680")
150 FT (1800")
B
PART NUMBER
PRODUCT SPEC/PKG SPEC
UZP* SERIES
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6A
10GIG
UTP
PLUG-TO-PLUG
ZONE
CORD
CUSTOMER DRAWING
ITEM REVISION NAME
A
10M185BC/00
DATASET FILE NAME
10M185BC_DC02/00B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
1
D10100DA/14
12-17-13
8-4-10
DATE
BJN
BJN
EJH
EJH
SEE
SHEET
1
FOR
REVISIONS
10M185BC-02
10M185BC-02
.X
.XX
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
SEE
NOTES
R
MKY
CHK
JPMC
SEE
SHEET
1
FOR
REVISIONS
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
10M185BC-02
SIZE
REV
BY
APR
DESCRIPTION
ECN
BJN
8-4-10
MKY
NONE
SHT
2
OF
2
A
2
1
