CXP750096Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CXP750096Q

CXP750096Q: DescriptionMicrocontroller, 8-Bit, MROM, SPC700 CPU, 24MHz, CMOS, PQFP64, 14 X 20 MM, 1 MM PITCH, PLASTIC, QFP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size424KB，26 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp; Environmental Compliance

Download Datasheet Parametric View All

CXP750096Q Overview

Microcontroller, 8-Bit, MROM, SPC700 CPU, 24MHz, CMOS, PQFP64, 14 X 20 MM, 1 MM PITCH, PLASTIC, QFP-64

CXP750096Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFP
package instruction	14 X 20 MM, 1 MM PITCH, PLASTIC, QFP-64
Contacts	64
Reach Compliance Code	unknown
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V MIN SUPPLY
Address bus width
bit size	8
CPU series	SPC700
maximum clock frequency	24 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G64
JESD-609 code	e6
length	20 mm
Number of I/O lines	52
Number of terminals	64
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.7X.95,40
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	2496
rom(word)	98304
ROM programmability	MROM
Maximum seat height	3.1 mm
speed	24 MHz
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

CXP750096/750010

CXP750097/750011

CMOS 8-bit Single Chip Microcomputer

Description

The CXP750096/750010, CXP750097/750011 are the

CMOS 8-bit single chip microcomputer integrating on a

single chip an A/D converter, serial interface, timer/

counter, time-base timer, on-screen display function, I

bus interface, PWM output, remote control reception

circuit, HSYNC counter, watchdog timer, 32kHz timer/

counter besides the basic configurations of 8-bit CPU,

ROM, RAM, I/O ports.

The CXP750096/750010, CXP750097/750011 also

provide a sleep function that enables to lower the power

consumption.

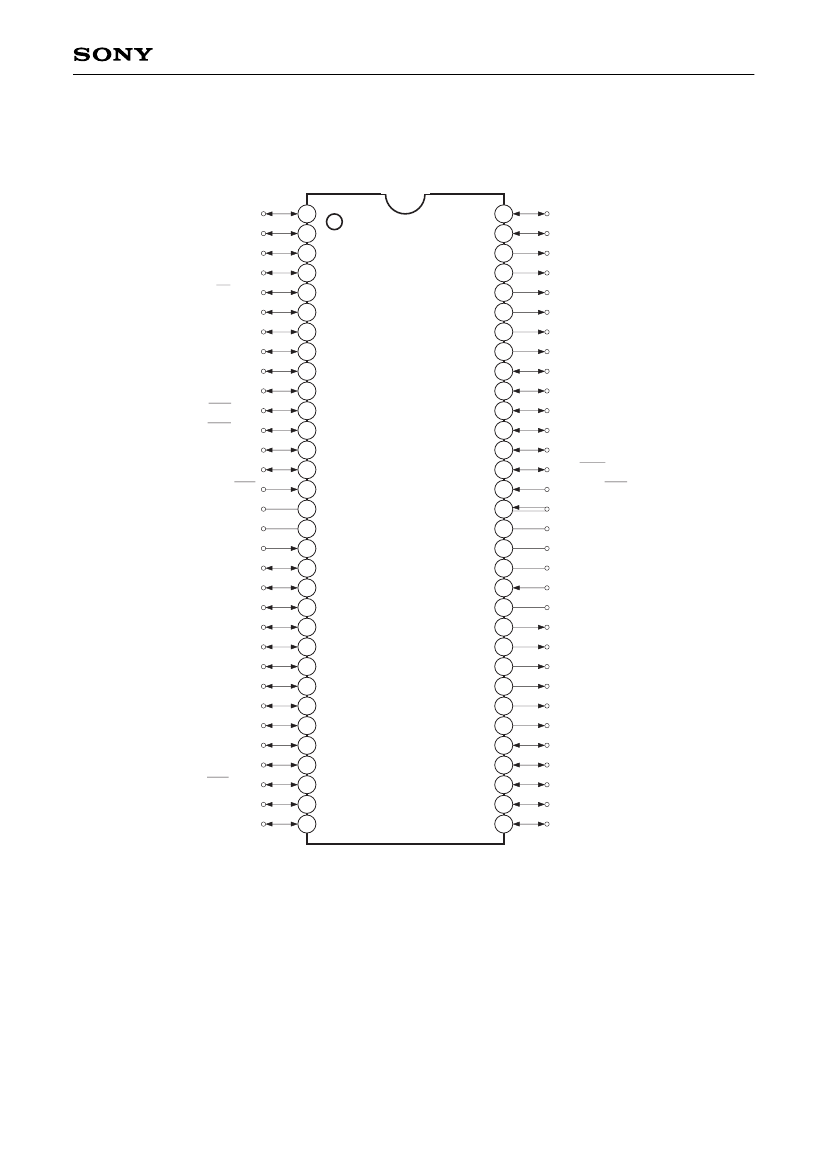

64 pin SDIP (Plastic)

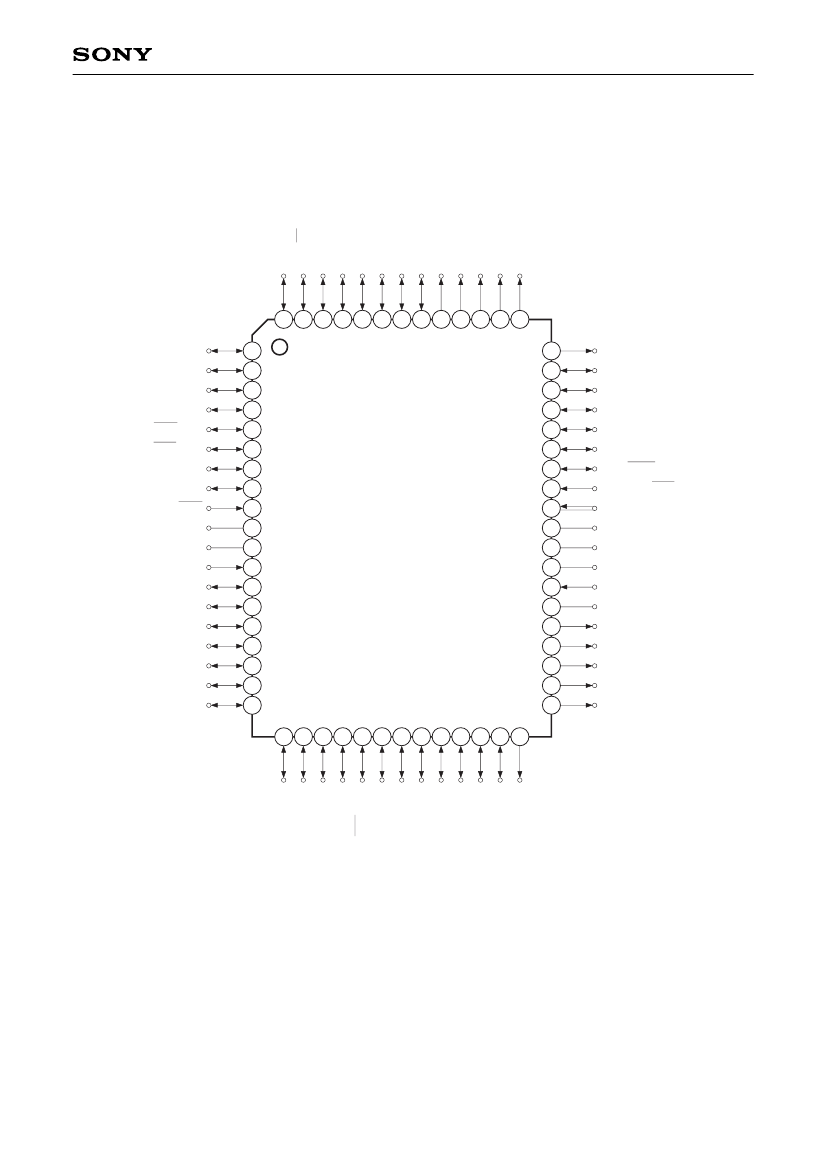

64 pin QFP (Plastic)

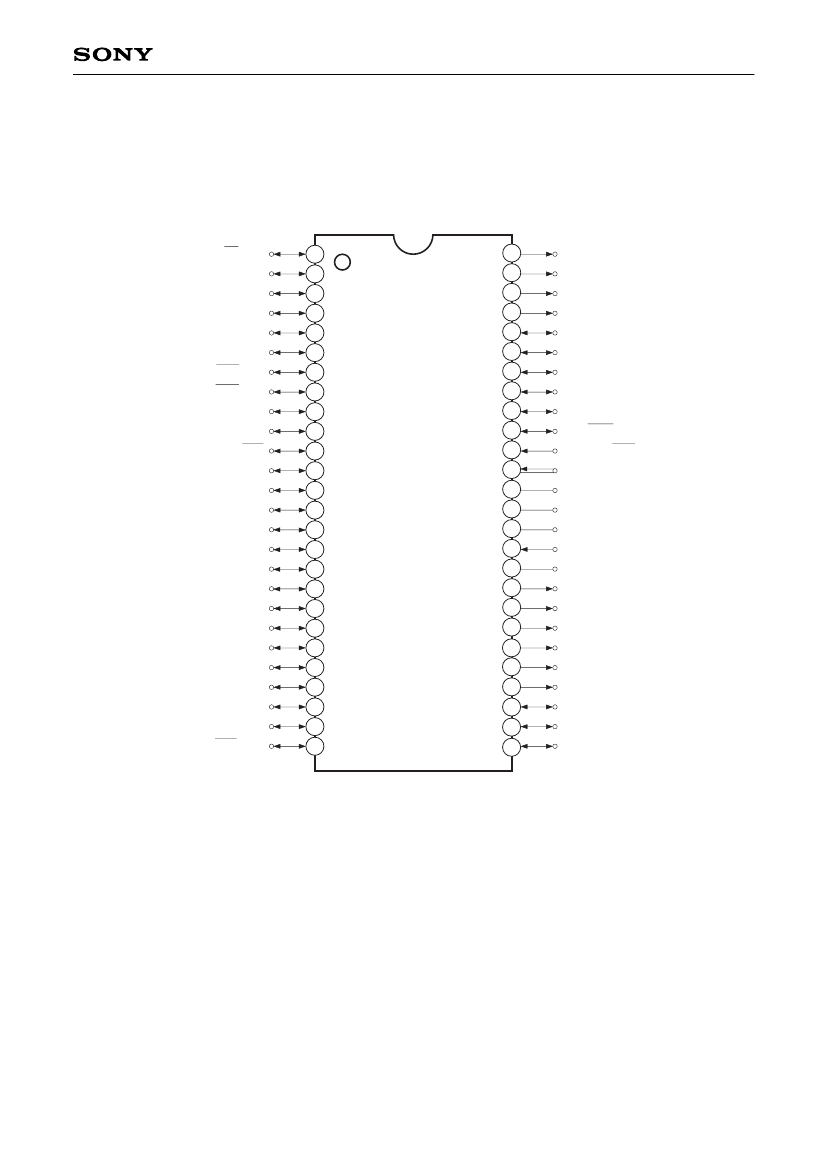

52 pin SDIP (Plastic)

Features

•

A wide instruction set (213 instructions) which covers

various types of data

– 16-bit operation/multiplication and division/

Boolean bit operation instructions

•

Minimum instruction cycle

167ns at 24MHz operation

122µs at 32kHz operation

•

Incorporated ROM 96K bytes (CXP750096/750097)

120K bytes (CXP750010/750011)

•

Incorporated RAM 2496 bytes

(Excludes VRAM for on-screen display)

•

Peripheral functions

Structure

– A/D converter

8-bit 6-channel successive approximation method

Silicon gate CMOS IC

(Conversion time of 3.25µs at 16MHz)

– Serial interface

8-bit clock sync type, 1 channel

– Timer

8-bit timer

8-bit timer/counter

19-bit time-base timer

32 kHz timer/counter

– On-screen display (OSD) function

32 dots, 512 character types,

15 character colors, 2 lines

32 characters,

frame background 8 colors/ half blanking,

background on full screen 15 colors/ half blanking

edging/ shadowing/ rounding for every line,

background with shadow for every character, double scanning,

sprite OSD,

32 dots, 1 screen, 8 colors for every dot

C bus interface

–I

– PWM output

8 bits, 8 channels

14 bits, 1 channel

– Remote control reception circuit

8-bit pulse measurement counter, 6-stage FIFO

– HSYNC counter

2 channels

– Watchdog timer

•

Interruption

13 factors, 13 vectors, multi-interruption possible

•

Standby mode

Sleep

•

Package

64-pin plastic SDIP/QFP, 52-pin plastic SDIP

•

Piggyback/evaluator

CXP750000 64-pin ceramic PQFP/PSDIP (Supports custom font)

Perchase of Sony's I

C components conveys a licence under the Philips I

C Patent Rights to use these components

in an I

C system, provided that the system conforms to the I

C Standard Specifications as defined by Philips.

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by

any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the

operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

–1–

E98767A17-PS
