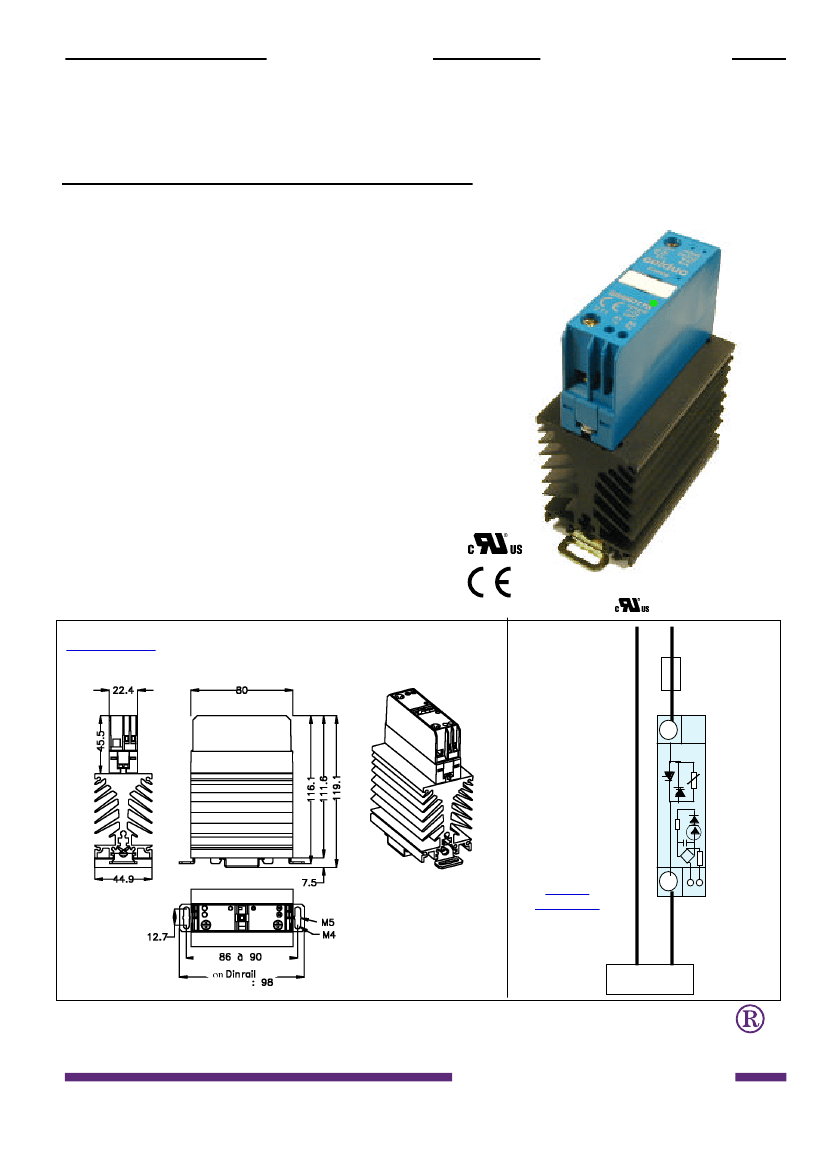

celpac®
AC Semiconductor Contactor
pitch 45mm
compact size and DIN rail
mounting.
t
Ready to use Single-Phase Relay: " Install it & Forget it!"
t
Zero cross model :
24-510VAC 50A
back to back thyristors on output -
TMS
2
technology -
I
2
t value > 1500A
2
s
t
Large control range :
150-240VAC/DC
Green LED visualization on the input.
t
Very high immunity : Voltage protection on output
and input- 4kV according IEC61000-4-4 & 5
t
IP20 housing
t
Low leakage current (<1mA) and low zero cross
voltage.
t
Mounting and dismounting on DIN rail without any
tool or directly mountable on panel.
t
Designed in conformity with EN60947-4-3
(IEC947-4-3) and EN60950
-UL-cUL
Dimensions :
S/CLP/SIM865970/B/21/04/2004
page 1 / 4GB
SIM865970
Output : 24-510VAC 40A(*)
Input : 150-240VAC/DC
(*) see conditions (thermal curve page 3)
32A
400VAC 50hz
Protection
L1
SSR
Typical
application:
12kW resistor
(AC-51 load)
on 400 VAC
CHARGE
T1
A2 A1
Commande
LOAD
Proud to serve you
All technical caracteristics are subject to change without previous notice.
Caractéristiques sujettes à modifications sans préavis.
r
celduc
e
l
a
i
s
celpac®
Control characteristics (at 25°C)
Paramètre / Parameter
Control voltage : AC control
Control voltage : DC control
Control current (@ Uc )
Release voltage
Input LED
Input immunity : EN61000-4-4
Input immunity : EN61000-4-5
Output characteristics (at 20°C)
Parameter
Load voltage
Operating range
Peak voltage
Clamping voltage
Zero cross level
Latching voltage
AC-51 nominal current : permanent
AC-53 nominal current
Non repetitive overload current
On state voltage drop (typical value)
Dynamic resistance (typical value)
Output Power dissipation (typical value)
Thermal resistance between junction to air
Off state leakage current
Minimum load current
Turn on time
Turn off time
Operating frequency range
Off state dv/dt
Maximum di/dt non repetitive
I
2
t (<10ms)
Conducted immunity level
Conducted immunity level
Short circuit protection
General characteristics (at 20°C)
Input to output insulation
Output to case insulation
Insulation resistance
Rated impulse voltage
Protection level / CEI529
Pollution degree
Vibration resistance 10 -55 Hz according to CEI68 :
Shocks resistance according to CEI68 ( on DIN rail / with screws)
Ambient temperature (with no icing or condensation)
Storage temperature (with no icing or condensation)
Ambient humidity
Weight
Conformity
Conformity
@Ue, 50Hz
Uc nom DC ,f=50Hz
Uc nom DC ,f=50Hz
Symbol
Uc
Uc
Ic
Uc off
Min
150
110
3
15
DC
Nom
230
Max
240
240
7
S/CLP/SIM865970/B/21/04/2004
page 2 / 4GB
Input : Ic = f( Uc)
Unit
V
AC
V
DC
mA
V
8
6
Ic(mA)
4
2
0
green
2kV
2KV
0
50
100
150
200
250
U c (V)
Conditions
Ie nom
( see Fig. 2 page 3)
tp=10ms
(Fig. 3)
@ 25°C
Symbol
Ue
Uemin-max
Up
Uclamp
Usync
Ua
Ie AC-51
Ie AC-53
Itsm
Vt
rt
Pd
Rthj/a
Ilk
Iemin
ton max
toff max
f
dv/dt
di/dt
I
2
t
Typ.
400
24-510
1200
820 (@1mA)
20
8
40
12
550
0,9
8
0,81xIe+0,08xIe
2
Unit
V rms
V rms
V
V
V
V
A rms
A rms
A
V
mΩ
W
IEC 1000-4-4 (burst)
IEC 1000-4-5(schocks)
FERRAZ
Ui
Ui
Ri
Uimp
-
-
double amplitude
-
-
HR
2,6 (2)
K/W
<1
mA
5
mA
30
ms
30
ms
0,1-440
Hz
500
V/µs
50
A/µs
1500
A
2
s
4kV criterion A
4kV criterion A
gRC 25A/32A/50A/63A 14x51
VRMS
VRMS
MΩ
V
4000
4000
100 (@500VDC)
4000
IP20
2
1,5
30/50
-30 /+80
-30/+100
40 to 85
380
EN60947-4-3 (IEC947-4-3)
EN60950 UL/cUL pending
mm
g
°C
°C
%
g
celduc
r
e
l
a
i
s
www.celduc.com
Rue Ampère B.P. 4
42290 SORBIERS - FRANCE
E-Mail : celduc-relais@celduc.com
Fax +33 (0) 4 77 53 85 51
Service Commercial France Tél. : +33 (0) 4 77 53 90 20
Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tél. +33 (0) 4 77 53 90 19
celpac®

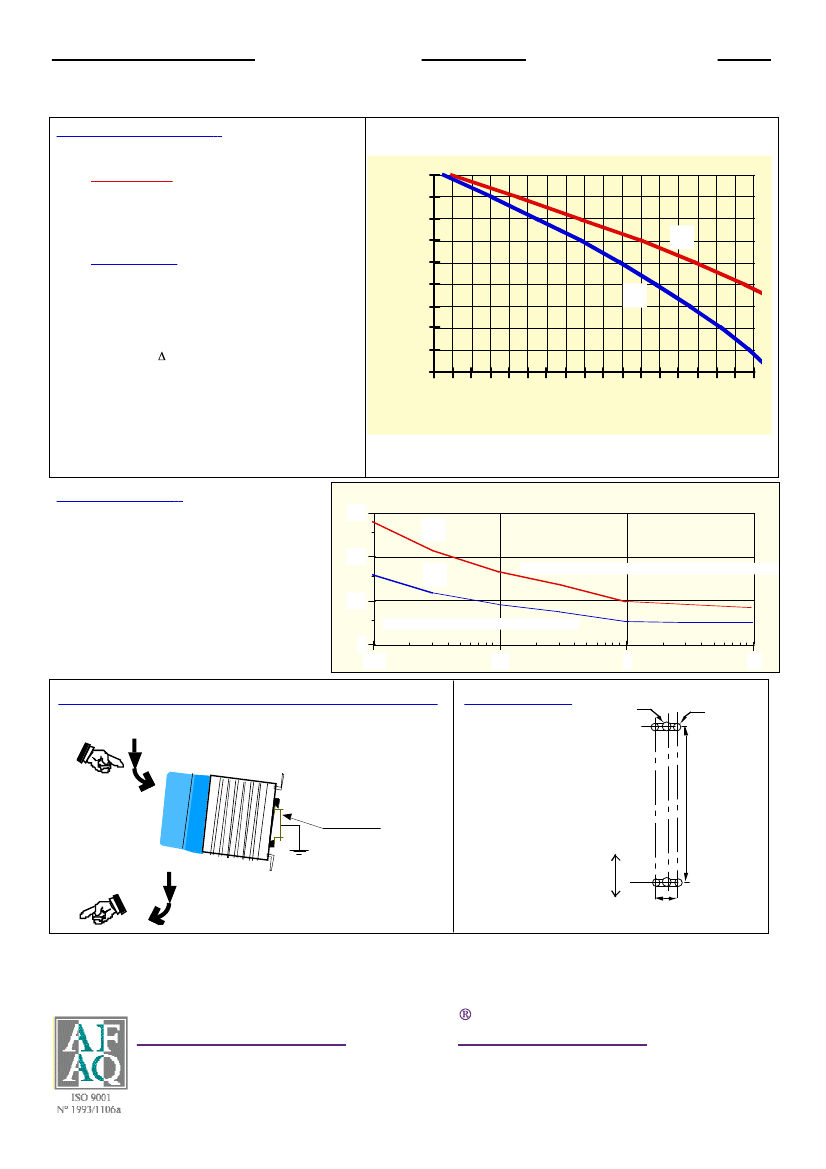

Thermal specifications
.
Current according ambient temperature :
Ø
The curve "1"
gives the limits of the product.
The temperature reached are acceptable for the com-
ponents. These values are in compliance with most of
SSRs manufacturers.
In a cabinet with a minimum of ventilation or a non
permanent current, these values are correct.
Ø
The curve "2"
gives the limits of the product
according to EN60947-4-3 with a maximum rise
temperature of 50°C (@40°C) for a permanent
working and in air calm ( test during 8 hours).
Ø
For a non permanent current, you can calcule
the average power = Pd x duty cycle and check the
rise temperature : Tj = Pd x Rthj/a (Pd and Rthj/a are
given page 2)). The junction temperature must not
exceed 125°C at the maximum ambient temperature.
The maximum current is limited to the size of the
thyristors = 50A.
Ø
The thermal constant (Cth) of the product is 9
minutes. That means the rise temperature is only 63%
of the stabilized temperature after a running time of
9 minutes.
45
40
35
30
I (A)
25
20
15
10
5
0
0
S/CLP/SIM865970/B/21/04/2004
page 3 / 4/GB
1
2
5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85
Tambient (°C)
fig 2
Overload current
.
1 -
No repetitive Itsm
is given without voltage
reapplied . This curve is used for the
determination of the protection.
2 -
Repetitive Itsm
is given for inrush current
with initial Tj = 70°C. In normal working , this
curve musn't be exceed. Be carefull, the
repetition of the surge current decrease the
lifetime SSR's .
Fig.3
Surge current : Itsm (Apeak) = f(t) for 50A models with Itsm =550A
600
Itsm (Apeak)
400
1
2
No repetive surge current without voltage reapplied.
200
Repetive surge current with voltage reapplied.
fig 3
0
0,01
0,1
t (s)
1
10
Mounting and dismounting on DIN rail without any tool.
Panel Mounting
Drill for vertical can be adjusted
M5
M4
Mounting
DIN rail connected to
protection wire (ground) .
88±2mm
Dismounting
12,7mm
Warning
! semiconductor relays don't provide any galvanic insulation between the load and the mains. Always use in
conjunction with an adapted circuit breaker with isolation feature or a similar device in order to ensure a reliable isolation in the
event of wrong function and when the relay must be insulated from the mains (maintenance ; if not used for a long duration ...).
Ø
celduc
r
e
l
a
i
s
www.celduc.com
Rue Ampère B.P. 4
42290 SORBIERS - FRANCE
E-Mail : celduc-relais@celduc.com
Fax +33 (0) 4 77 53 85 51
Service Commercial France Tél. : +33 (0) 4 77 53 90 20
Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tél. +33 (0) 4 77 53 90 19
celpac®

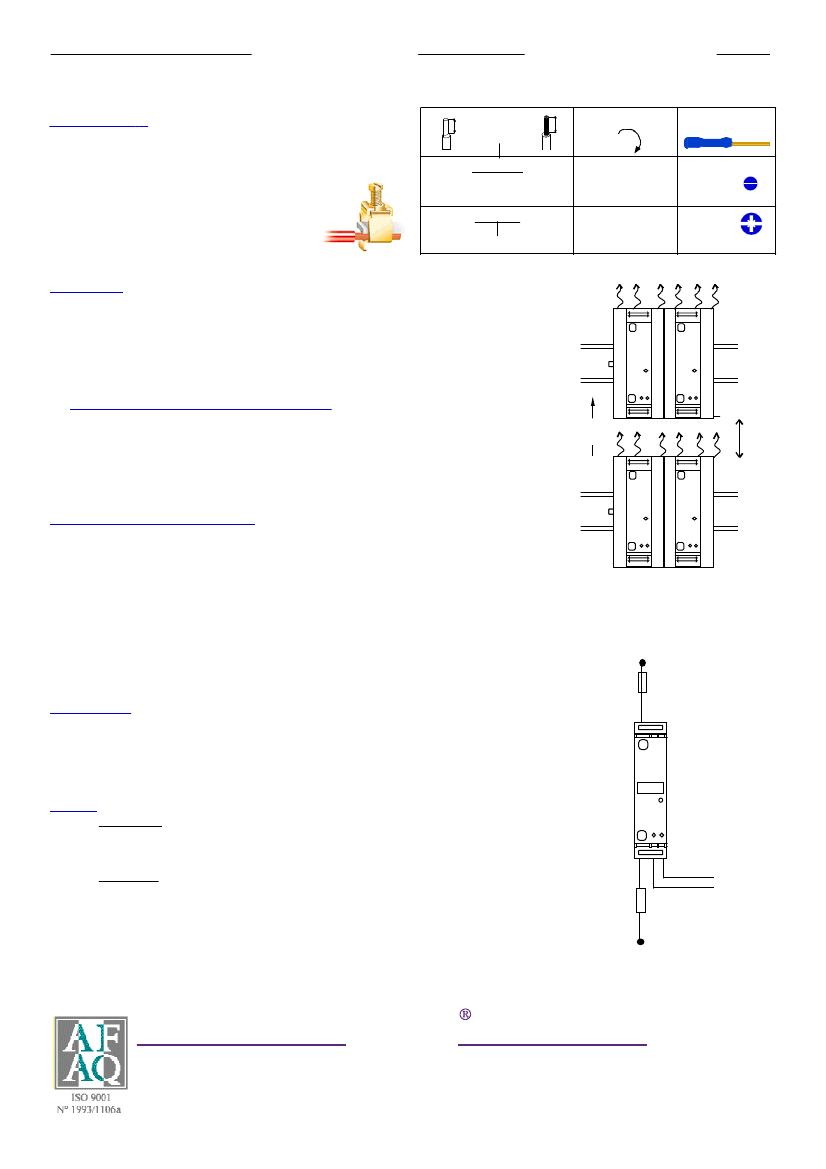

Connections
.
