SMH51R-FREQ-OUT29 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SMH51R-FREQ-OUT29

SMH51R-FREQ-OUT29: DescriptionHCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max; CategoryPassive components oscillator; File Size317KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

SMH51R-FREQ-OUT29 Overview

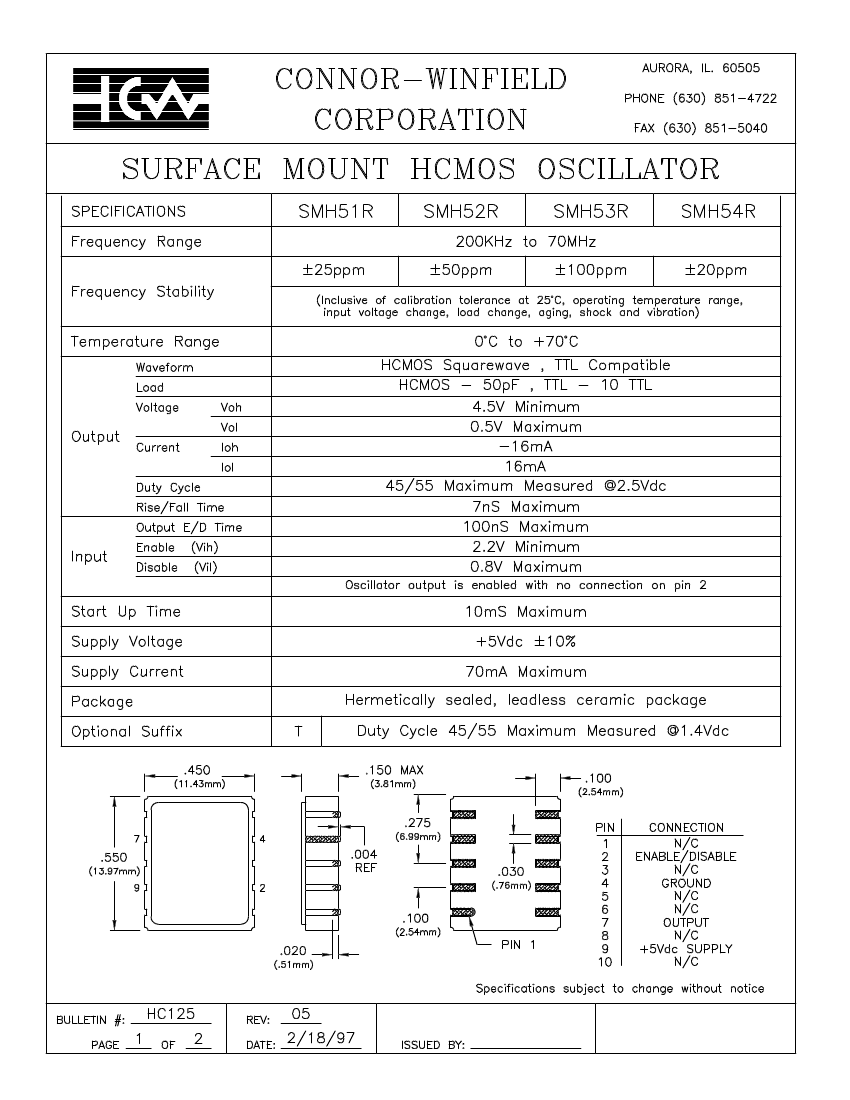

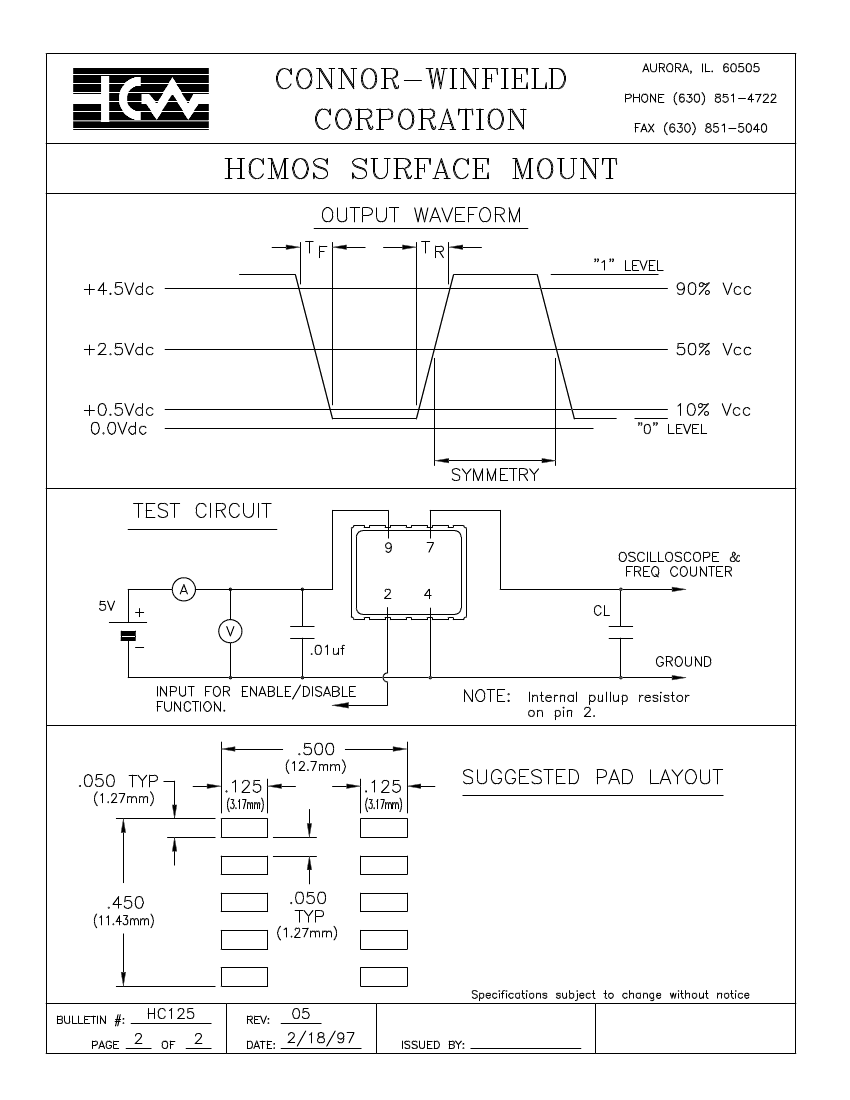

HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max

SMH51R-FREQ-OUT29 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	SMH
Installation features	SURFACE MOUNT
Maximum operating frequency	70 MHz
Minimum operating frequency	0.2 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
physical size	13.97mm x 11.43mm x 3.81mm
longest rise time	7 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

SMH51R-FREQ-OUT29 Related Products

	SMH51R-FREQ-OUT29	SMH53R-FREQ-OUT29	SMH53RT-FREQ-OUT29	SMH51RT-FREQ-OUT29	SMH52R-FREQ-OUT29	SMH52RT-FREQ-OUT29	SMH54RT-FREQ-OUT29
Description	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max	HCMOS/TTL Output Clock Oscillator, 0.2MHz Min, 70MHz Max
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
maximum descent time	7 ns	7 ns	7 ns	7 ns	7 ns	7 ns	7 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO
frequency stability	25%	100%	100%	25%	50%	50%	20%
Manufacturer's serial number	SMH	SMH	SMH	SMH	SMH	SMH	SMH
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz	70 MHz
Minimum operating frequency	0.2 MHz	0.2 MHz	0.2 MHz	0.2 MHz	0.2 MHz	0.2 MHz	0.2 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Oscillator type	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL
Output load	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF
physical size	13.97mm x 11.43mm x 3.81mm	13.97mm x 11.43mm x 3.81mm	13.97mm x 11.43mm x 3.81mm	13.97mm x 11.43mm x 3.81mm	13.97mm x 11.43mm x 3.81mm	13.97mm x 11.43mm x 3.81mm	13.97mm x 11.43mm x 3.81mm
longest rise time	7 ns	7 ns	7 ns	7 ns	7 ns	7 ns	7 ns
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %
