package. This HBT amplifier is made with InGaP on GaAs
device technology and fabricated with MOCVD for an ideal
combination of low cost and high reliability.
This product is specifically designed for 802.16 customer
premise equipment (CPE) terminals in the 2.3-2.7 GHz bands.
It can run from a 3V to 6V supply. The external output match
and bias adjustability allows load line optimization for other
applications or over narrower bands. It features an output
power detector, on/off power control and high RF overdrive
robustness. A 20dB step attenuator feature can be utilized by
switching the second stage Power up/down control. This prod-
uct features a RoHS compliant and Green package with matte
tin finish, designated by the ‘Z’ suffix.
SZM-2166Z
2.3-2.7GHz 2W Power Amplifier
Pb
RoHS Compliant
&
Green
Package
6mm x 6mm QFN Package

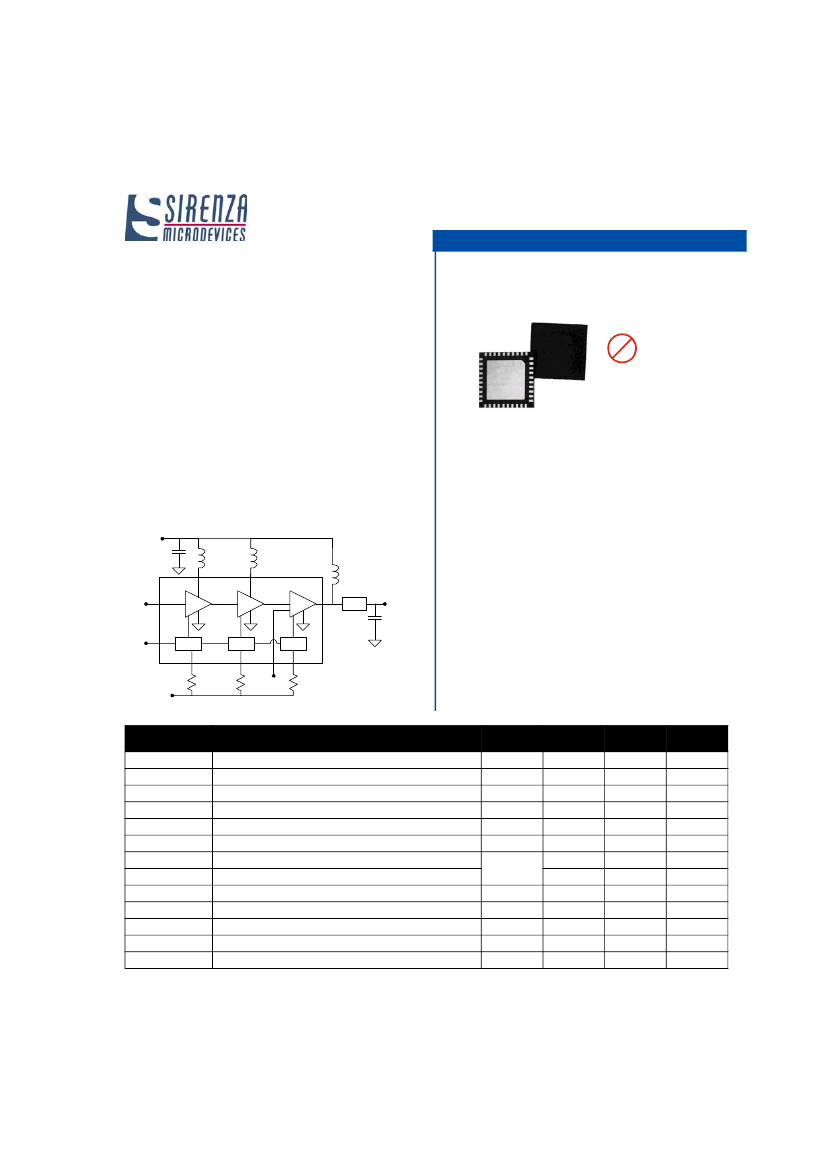

Functional Block Diagram
Vcc = 5V
RFIN
RFOUT
•
•
•
•
•
•
•
•
•
Product Features
P1dB = 35dBm @ 6V
Three Stages of Gain: 37dB
802.11g 54Mb/s Class AB Performance
Pout = 27dBm @ 2.5% EVM, Vcc 6V, 878mA
Active Bias with Adjustable Current
On-chip Output Power Detector
Low Thermal Resistance
Power up/down control < 1μs
Attenuator step 20dB @ Vpc2 = 0V
Vbias = 5V
Stage 1
Bias
Stage 2
Bias
Stage 3
Bias
Applications
P
ower
Up/Dow n
Control
P
ower
Detector
•
•
•
802.16 WiMAX Driver or Output Stage
802.11b/g WLAN, WiFi
CPE Terminal Applications
Unit
MHz
dBm
dB
%
dBc
dB
dB
V
mA
mA
µA
ºC/W
12
615
10
13
34.5
Min.
2300
35
36
2.5
-40
8.3
14
17
0.9 to 1.8
724
4
100
832
-35
Typ.
Max.
2700
Key Specifications
Symbol
f
O
P
1dB
S
21
EVM%
IM3
NF
IRL
ORL
Vdet Range
I
cq
I
VPC
I
leak
R
th, j-l
Parameters: Test Conditions, 2.5-2.7GHz App circuit,
Z
0
= 50Ω, V
CC
= 6.0V, Iq = 724mA, T
BP
= 30ºC
Frequency of Operation
Output Power at 1dB Compression – 2.7GHz
Small Signal Gain – 2.7GHz
EVM at 27dBmOutput power EVM 802.11g 54Mb/s - 2.7GHz
Third Order Suppression (Pout=23dBm per tone) - 2.7GHz
Noise Figure at 2.7 GHz
Worst Case Input Return Loss 2.5-2.7GHz
Worst Case Output Return Loss 2.5-2.7GHz
Output Voltage Range for Pout=10dBm to 33dBm
Quiescent Current (V
cc
= 6V)
Power Up Control Current (V
pc
=6V, ( I
VPC1
+I
VPC2
+ I
VPC3
)
Vcc Leakage Current (V
cc
= 6V, V
pc
= 0V)
Thermal Resistance (junction - lead)
